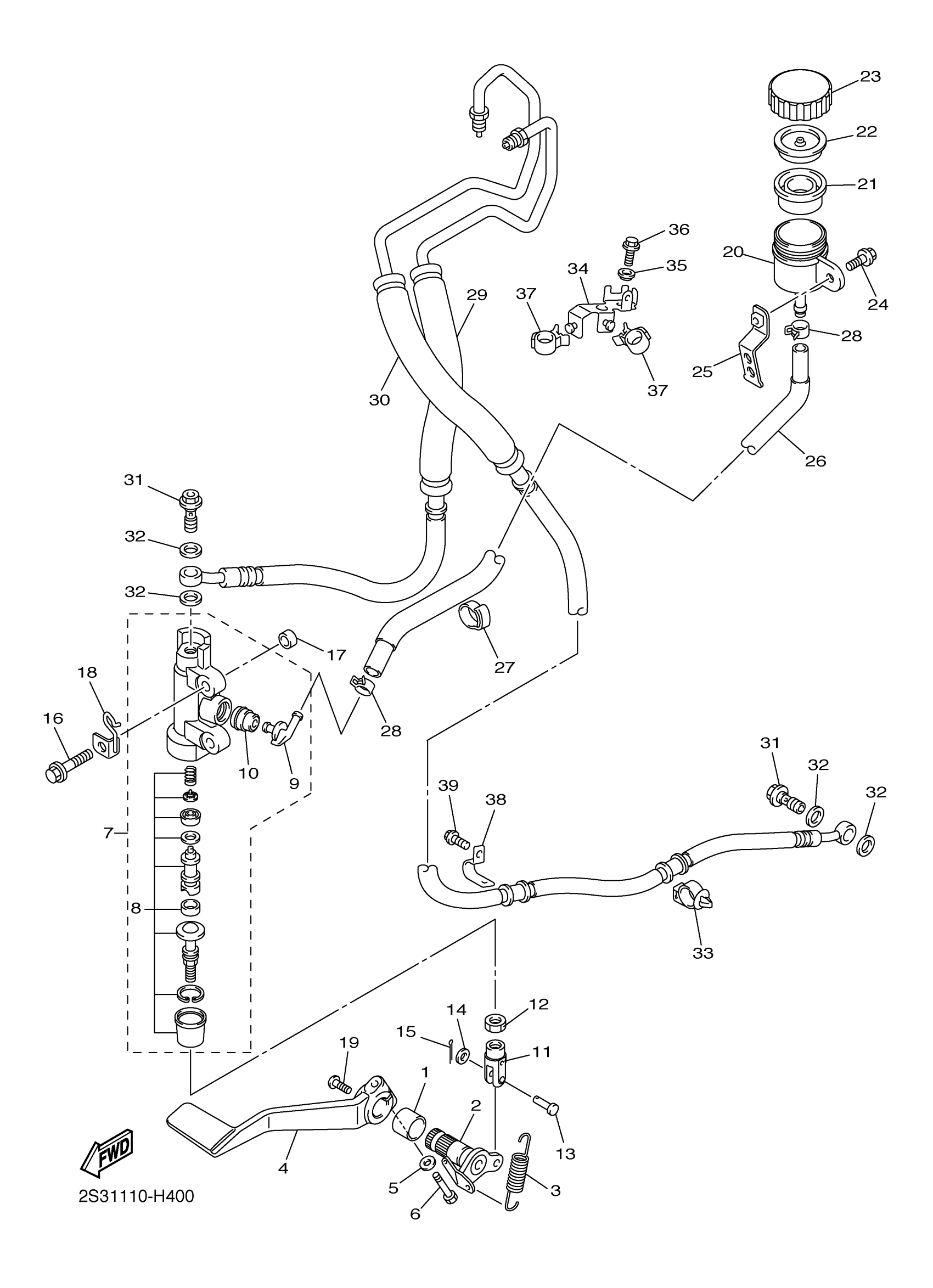

Yamaha VMX17LGY (VMAX) B8X4 2020 REAR MASTER CYLINDER Diagram

BUSH, FORMED

90383-17001-00

$12.49

SHAFT, BRAKE PEDAL

2S3-27212-00-00

Unavailable

SPRING, TENSION

90506-20028-00

Unavailable

PEDAL, BRAKE

2S3-27211-10-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

BOLT (1J7)

90109-06468-00

$7.49

RR. MASTER CYLINDER ASSY.

2S3-2583V-00-00

Unavailable

CYLINDER KIT, MASTER

5PS-W0042-50-00

$114.99

JOINT

2S3-2582A-00-00

Unavailable

O-RING

4BP-2585F-01-00

Unavailable

JOINT

5SL-27222-00-00

$42.99

NUT

90170-08010-00

$8.49

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

PIN, COTTER

91490-16020-00

Unavailable

BOLT(4EB)

90109-083G1-00

Unavailable

COLLAR

90387-08092-00

Unavailable

HOLDER

2S3-27911-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

TANK, RESERVOIR

4P5-25894-00-00

Unavailable

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

Unavailable

BUSH,DIAPHRAGM

5SL-25855-00-00

Unavailable

CAP, RESERVOIR

5SL-25852-00-00

Unavailable

BOLT, WITH WASHER(55K)

90119-06114-00

Unavailable

HOLDER, RESERVE TANK

2S3-2582E-00-00

Unavailable

HOSE, RESERVOIR

2S3-25895-00-00

Unavailable

CLAMP

90464-16003-00

Unavailable

CLIP (7K7)

90467-11044-00

Unavailable

HOSE, BRAKE 4

2S3-2581J-00-00

Unavailable

HOSE, BRAKE 5

2S3-2581K-00-00

Unavailable

BOLT, UNION

90401-10172-00

Unavailable

GASKET

90430-10005-00

Unavailable

CLAMP

90464-20016-00

Unavailable

HOLDER, BRAKE HOSE 4

2S3-2587A-00-00

Unavailable

COLLAR

90387-06200-00

Unavailable

BOLT, FLANGE

95022-06012-00

Unavailable

CLAMP(4HM)

90464-15192-00

Unavailable

HOLDER,WIRE 1

2S3-21597-00-00

Unavailable

BOLT, FLANGE

95022-06010-00

Unavailable
