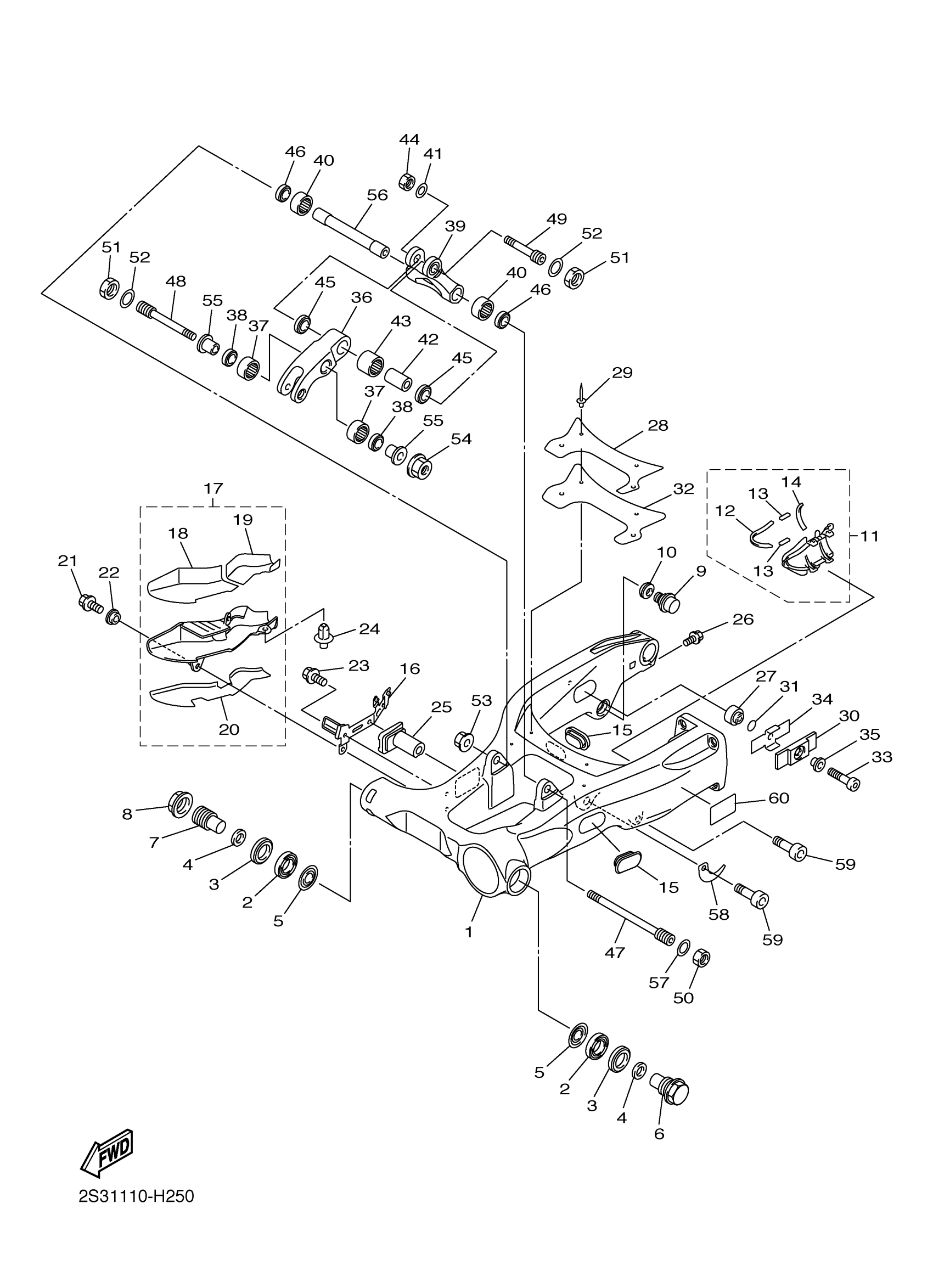

Yamaha VMX17LGY (VMAX) B8X4 2020 REAR ARM Diagram
#
1
REAR ARM COMP.
2S3-22110-00-00
Unavailable
2
BEARING (26H)
93332-00051-00
Unavailable
6
SHAFT, PIVOT
2S3-22141-00-00
Unavailable
7
SHAFT, PIVOT 2
2S3-2214H-00-00
Unavailable
8
NUT
90179-28007-00
Unavailable
9
STOPPER, TORQUE
2S3-2214E-00-00
Unavailable
10
CAP
2S3-22117-00-00
Unavailable
11
COVER ASSY
2S3-22250-00-00
Unavailable
12
. DAMPER, SHOCK ABSORBER LOWER
2S3-22218-00-00
Unavailable
13
. DAMPER 1
2S3-22483-00-00
Unavailable
14
. DAMPER 2
2S3-22492-00-00
Unavailable
15
COVER, THRUST 2
2S3-22129-00-00
Unavailable
16
BRACKET
2S3-22163-00-00
Unavailable
17
COVER ASSY 1
2S3-228A0-00-00
Unavailable
18
. SEAT 1
2S3-27498-00-00
Unavailable
19
. SEAT 2
2S3-27499-00-00
Unavailable
20
. SEAT 3
2S3-2749A-00-00
Unavailable
21
BOLT, FLANGE
95022-06012-00
Unavailable
22
COLLAR
90387-06200-00
Unavailable
23
BOLT, FLANGE
95022-06012-00
Unavailable
24
RIVET
90269-08069-00
Unavailable
25
DAMPER 1
2S3-2214F-00-00
Unavailable
26
BOLT, SOCKET
91314-08035-00
Unavailable
27
DAMPER 2
2S3-2214G-00-00
Unavailable
28
PATCH
2S3-22168-00-00
Unavailable
29
RIVET, BLIND(8AC)
90267-40172-00
Unavailable
30
DAMPER 2
2S3-21639-00-00
Unavailable
31
PLATE
2S3-22249-00-00
Unavailable
32
DAMPER
2S3-21649-00-00
Unavailable
33
BOLT,SOCKET
91314-08040-00
Unavailable
34
BRKT., 1
2S3-2216B-00-00
Unavailable
35
COLLAR(1HX)
90387-081N1-00
Unavailable
36
ARM, RELAY
2S3-2217A-00-00
Unavailable
37
BEARING
93315-31758-00
Unavailable
38
OIL SEAL
93109-17071-00
Unavailable
39
ARM 1
2S3-2217M-00-00
Unavailable
40
BEARING
93315-31758-00
Unavailable
41
WASHER, PLATE
90201-12050-00
Unavailable
42
COLLAR(1FN)
90387-123M3-00
Unavailable
43
BEARING, CYLINDRICAL(4RR)
93315-32053-00
Unavailable
44
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
45
OIL SEAL
93109-20001-00
Unavailable
46
OIL SEAL
93109-17071-00
Unavailable
47
BOLT
90109-10055-00
Unavailable
48
BOLT
90109-12017-00
Unavailable
49
BOLT
90109-12016-00
Unavailable
50
NUT
90170-16M27-00
Unavailable
51
NUT(3MA)
90170-18392-00
Unavailable
52
WASHER, PLATE
90201-18025-00
Unavailable
53
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
54
NUT, U FLANGE
95607-12200-00
Unavailable
55
COLLAR
90387-12044-00
Unavailable
56
COLLAR
90387-10067-00
Unavailable
57
WASHER, PLATE
90201-16022-00
Unavailable
58
STAY, CHAIH CASE 1
2S3-22131-00-00
Unavailable
59
BOLT (33M)
91312-06014-00
Unavailable
60
LABEL, TIRE
2S3-21668-00-00
Unavailable
