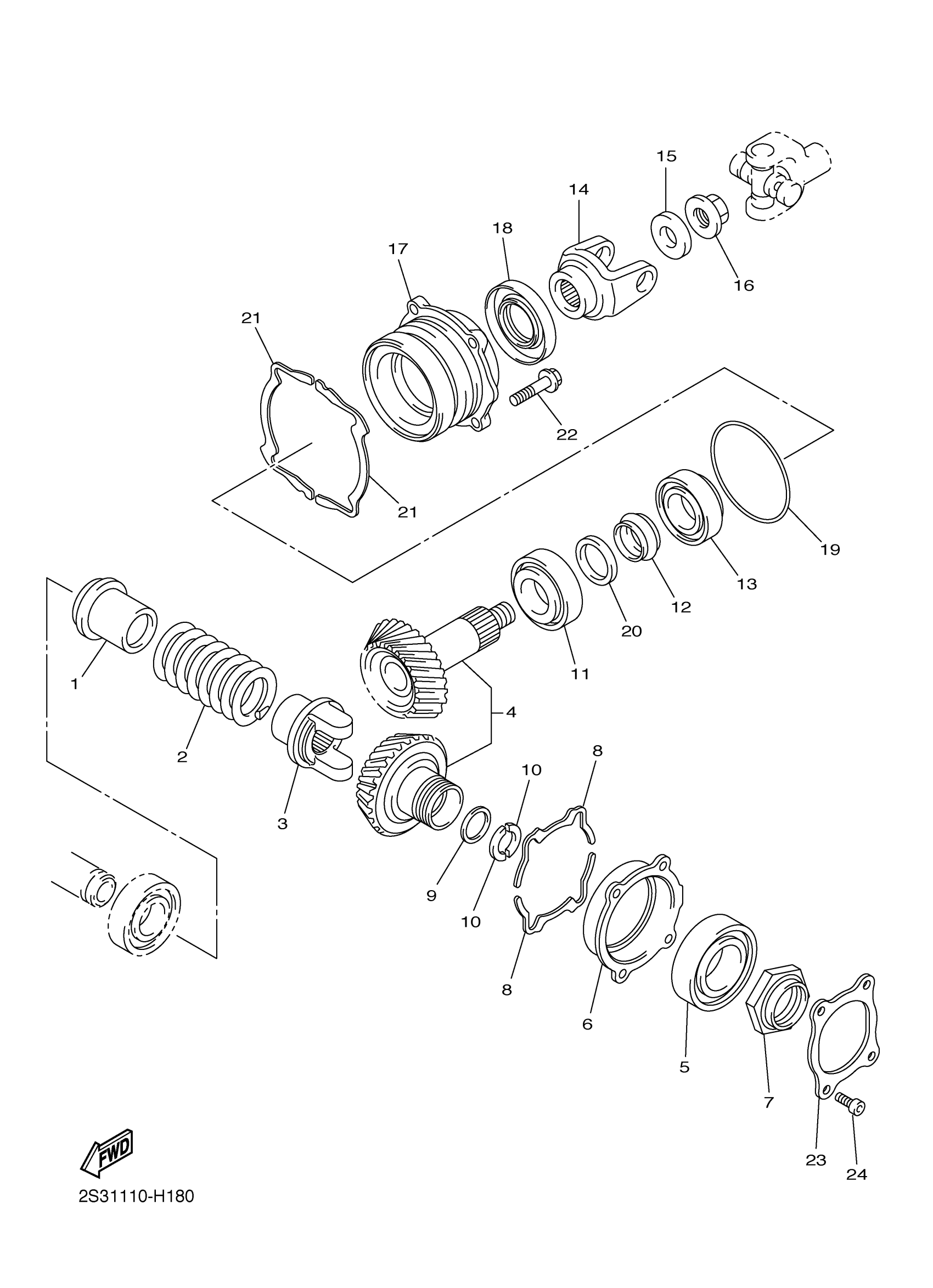

Yamaha VMX17LGY (VMAX) B8X4 2020 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOLDER

2S3-17524-00-00

Unavailable

2

SPRING, DAMPER

2S3-17528-00-00

$46.99

3

CAM, DRIVEN

2S3-17527-00-00

Unavailable

4

MIDDLE GEAR COMP.

2S3-Y1754-00-00

Unavailable

5

BEARING

93306-20903-00

Unavailable

6

HOUSING, BEARING 1

2S3-15163-00-00

Unavailable

7

NUT

90179-44001-00

Unavailable

8

SHIM, PINION

2S3-17531-00-00

Unavailable

8

SHIM, PINION

2S3-17531-10-00

Unavailable

8

SHIM, PINION

2S3-17531-20-00

Unavailable

8

SHIM, PINION

2S3-17531-30-00

Unavailable

8

SHIM, PINION

2S3-17531-40-00

Unavailable

8

SHIM, PINION

2S3-17531-50-00

Unavailable

9

WASHER, PLATE

90201-27014-00

$33.99

10

WASHER, THRUST

2S3-17529-00-00

Unavailable

11

BEARING

93332-000A1-00

Unavailable

12

SPACER, EXPANSION

2S3-17571-00-00

Unavailable

13

BEARING

93332-000A0-00

Unavailable

14

YOKE, JOINT

2S3-17556-01-00

Unavailable

15

WASHER, CONICAL SPRING

90208-22004-00

Unavailable

16

NUT

90179-20015-00

Unavailable

17

HOUSING, BEARING

2S3-17551-00-00

Unavailable

18

OIL SEAL

93102-45009-00

Unavailable

19

O-RING

93210-94001-00

Unavailable

20

WASHER, PLATE

90201-35014-00

Unavailable

21

SHIM, THRUST

2S3-17537-00-00

Unavailable

21

SHIM, THRUST

2S3-17537-10-00

Unavailable

21

SHIM, THRUST

2S3-17537-20-00

Unavailable

21

SHIM, THRUST

2S3-17537-30-00

Unavailable

21

SHIM, THRUST

2S3-17537-40-00

Unavailable

21

SHIM, THRUST

2S3-17537-50-00

Unavailable

22

BOLT, FLANGE

95817-08035-00

Unavailable

23

PLATE

2S3-17446-00-00

Unavailable

24

BOLT, SOCKET

91317-08025-00

Unavailable
