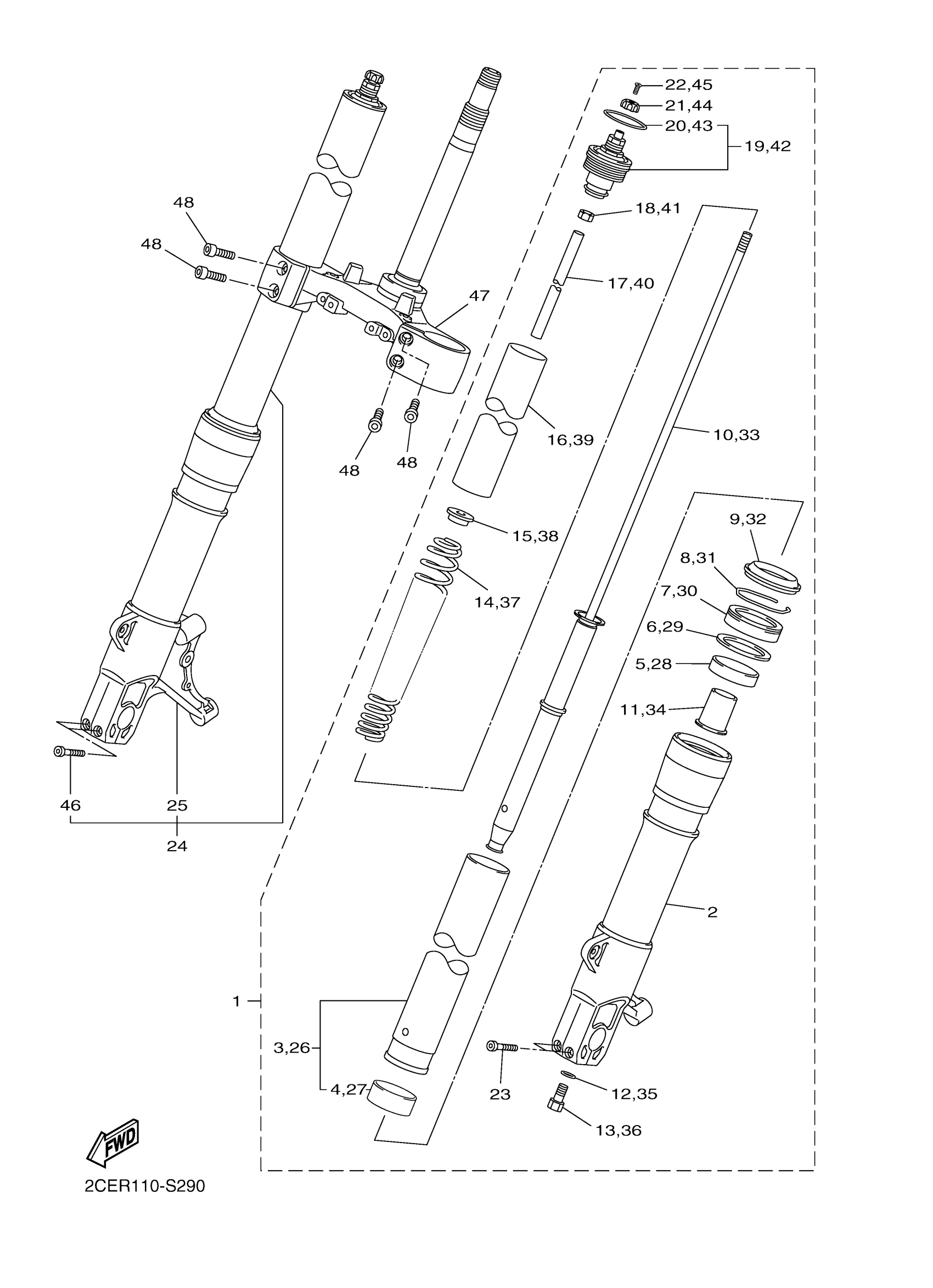

Yamaha VMX17LGY (VMAX) B8X4 2020 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2CE-23102-10-00

Unavailable

2

OUTER TUBE COMP.

2CE-23106-10-00

Unavailable

3

INNER TUBE COMP.1

2CE-23110-00-00

Unavailable

4

METAL, SLIDE 2

2S3-23135-00-00

$34.99

5

METAL, SLIDE 1

2S3-23125-00-00

$50.99

6

SEAT 1

2S3-23115-00-00

$16.49

7

OIL SEAL

2S3-23145-00-00

$16.49

8

RING, SNAP

2CE-23156-00-00

$5.49

9

SEAL, DUST

2S3-23144-00-00

$18.49

10

CYLINDER COMP., FRONT FORK

2CE-23170-00-00

$424.99

11

SPINDLE, TAPER

5UX-23173-00-00

Unavailable

12

GASKET

509-23158-L0-00

$16.49

13

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

14

SPRING, FRONT FORK

2CE-23141-00-00

Unavailable

15

SEAT, SPRING UPPER

2CE-23142-00-00

$20.99

16

REINF. COMP.

2CE-23104-00-00

Unavailable

17

SPACER

2CE-23118-00-00

Unavailable

18

NUT

5UX-23778-00-00

Unavailable

19

BOLT, CAP

2CE-23111-00-00

Unavailable

20

O-RING

CS4-43862-40-00

Unavailable

21

KNOB (TEN)

5JW-2319W-00-00

Unavailable

22

SCREW

1MC-23119-10-00

Unavailable

23

BOLT,SOCKET

91314-08045-00

Unavailable

24

FRONT FORK ASSY (R.H)

2CE-23103-11-00

Unavailable

25

OUTER TUBE COMP.

2CE-23107-10-00

Unavailable

26

INNER TUBE COMP.1

2CE-23110-00-00

Unavailable

27

METAL, SLIDE 2

2S3-23135-00-00

$34.99

28

METAL, SLIDE 1

2S3-23125-00-00

$50.99

29

SEAT 1

2S3-23115-00-00

$16.49

30

OIL SEAL

2S3-23145-00-00

$16.49

31

RING, SNAP

2CE-23156-00-00

$5.49

32

SEAL, DUST

2S3-23144-00-00

$18.49

33

CYLINDER COMP., FRONT FORK

2CE-23170-00-00

$424.99

34

SPINDLE, TAPER

5UX-23173-00-00

Unavailable

35

GASKET

509-23158-L0-00

$16.49

36

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

37

SPRING, FRONT FORK

2CE-23141-00-00

Unavailable

38

SEAT, SPRING UPPER

2CE-23142-00-00

$20.99

39

REINF. COMP.

2CE-23104-00-00

Unavailable

40

SPACER

2CE-23118-00-00

Unavailable

41

NUT

5UX-23778-00-00

Unavailable

42

BOLT, CAP

2CE-23111-00-00

Unavailable

43

O-RING

CS4-43862-40-00

Unavailable

44

KNOB (TEN)

5JW-2319W-00-00

Unavailable

45

SCREW

1MC-23119-10-00

Unavailable

46

BOLT,SOCKET

91314-08045-00

Unavailable

47

UNDER BRACKET COMP.

2CE-23340-00-00

Unavailable

48

BOLT,SOCKET

91314-08025-00

Unavailable
