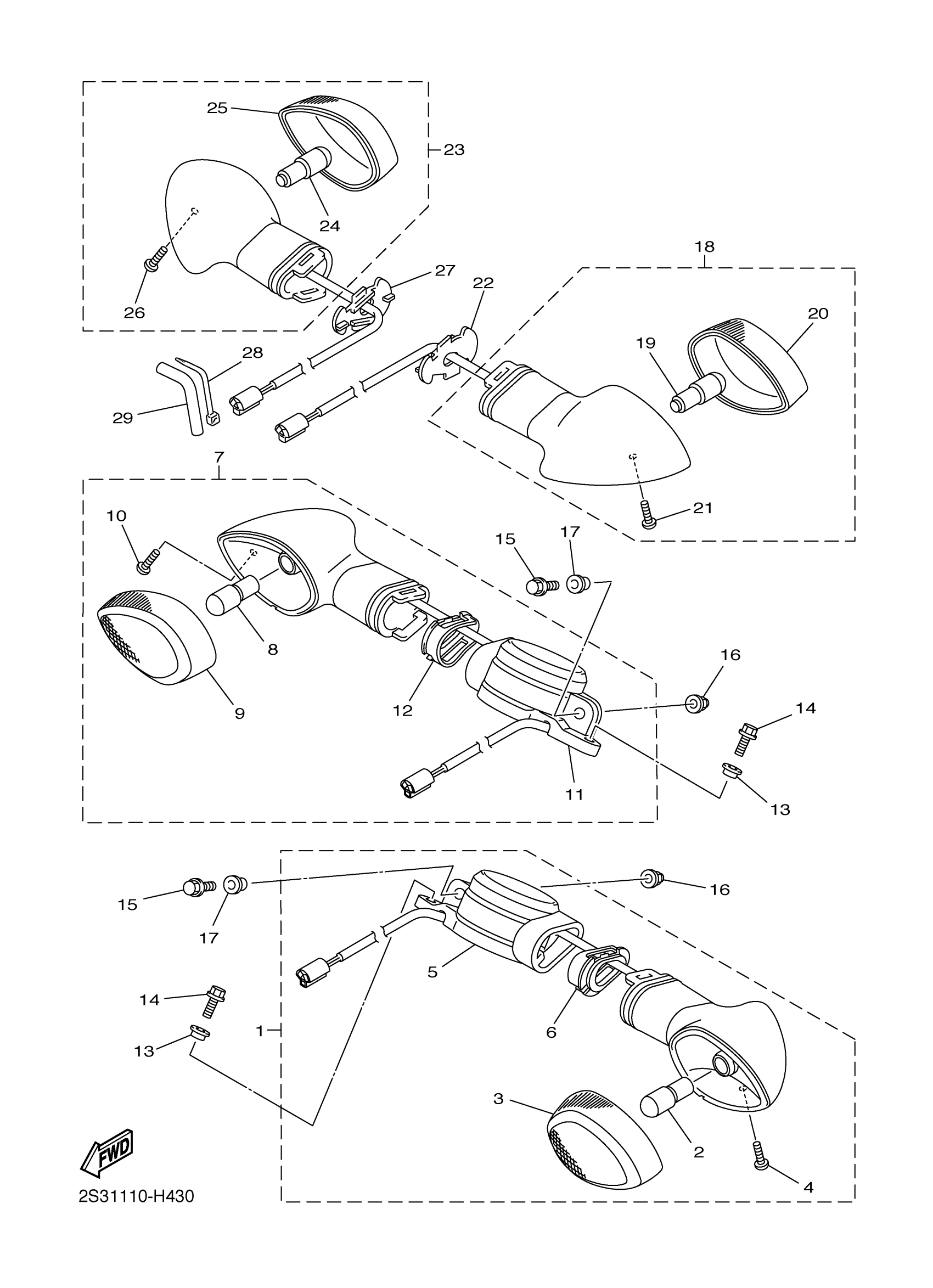

Yamaha VMX17LGY (VMAX) B8X4 2020 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

2S3-83310-10-00

Unavailable

2

BULB

1A2-84714-50-00

$14.49

3

LENS COMP

2C0-8333A-10-00

Unavailable

4

SCREW, SPECIAL

2C0-83358-00-00

Unavailable

5

BASE, FLASHER 1

2S3-83314-00-00

Unavailable

6

STAY, FLASHER 1

2S3-83318-00-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

2S3-83320-10-00

Unavailable

8

BULB

1A2-84714-50-00

$14.49

9

LENS COMP

2C0-8334A-10-00

Unavailable

10

SCREW, SPECIAL

2C0-83358-00-00

Unavailable

11

BASE, FLASHER 2

2S3-83324-00-00

Unavailable

12

STAY, FLASHER 2

2S3-83328-00-00

Unavailable

13

SPACER (25G)

90560-06244-00

$8.49

14

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

15

BOLT, FLANGE

95817-06016-00

$2.75

16

NUT, CROWN(1FN)

90176-06055-00

Unavailable

17

COLLAR

90387-06246-00

Unavailable

18

REAR FLASHER LIGHT ASSY 1

2S3-83330-10-00

Unavailable

19

BULB, FLASHER (12V-21W)

306-83311-40-00

Unavailable

20

LENS COMP

2C0-8334A-10-00

Unavailable

21

SCREW, SPECIAL

2C0-83358-00-00

Unavailable

22

STAY, FLASHER 1

2D1-83318-00-00

Unavailable

23

REAR FLASHER LIGHT ASSY 2

2S3-83340-10-00

Unavailable

24

BULB, FLASHER (12V-21W)

306-83311-40-00

Unavailable

25

LENS COMP

2C0-8333A-10-00

Unavailable

26

SCREW, SPECIAL

2C0-83358-00-00

Unavailable

27

STAY, FLASHER 1

2D1-83318-00-00

Unavailable

28

BAND

1UA-82591-00-00

Unavailable

29

HOSE (L200)

90445-07176-00

Unavailable
