- VMX17LGY (VMAX) B8X4 2020
DRIVE SHAFT

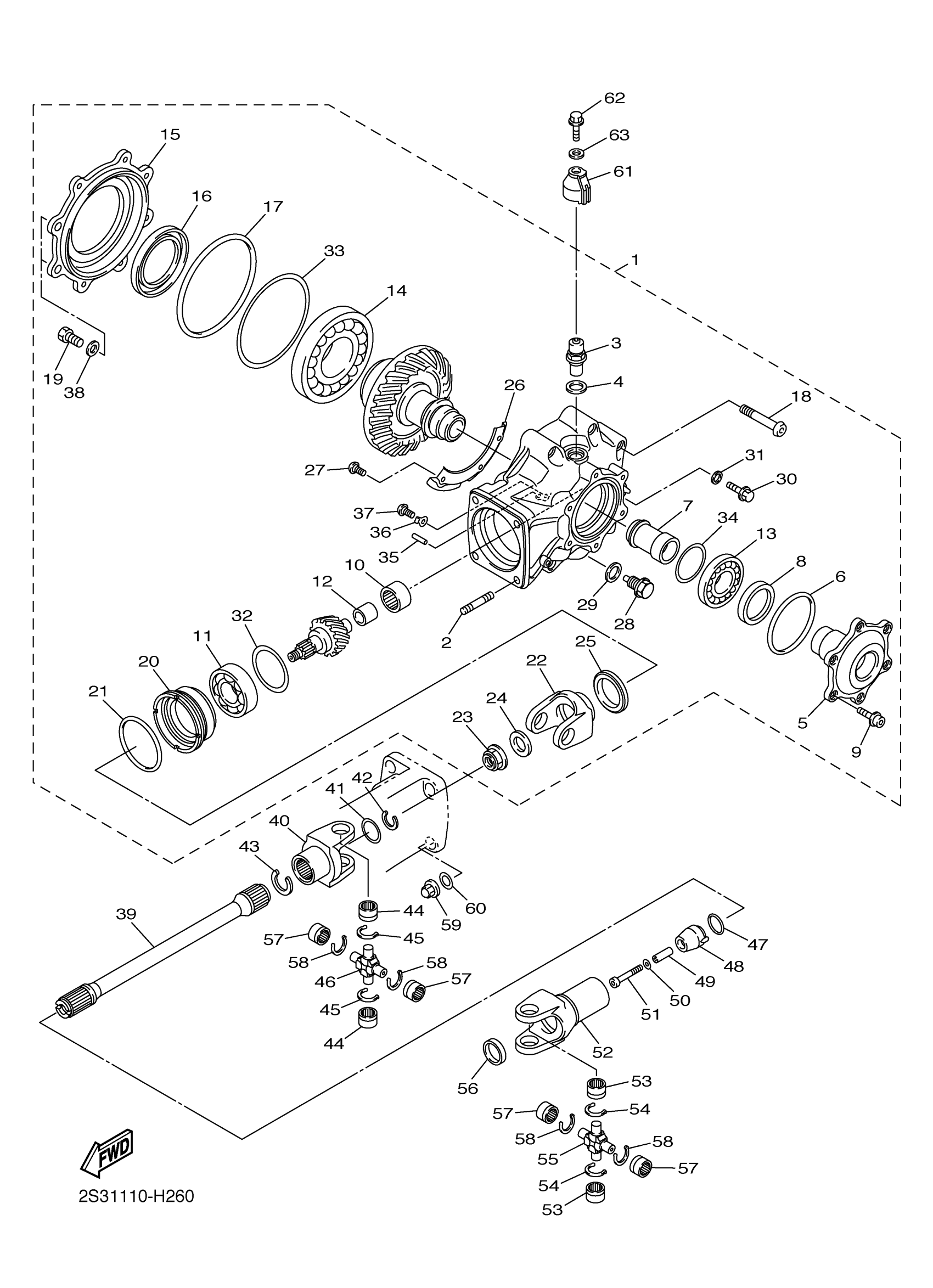

Yamaha VMX17LGY (VMAX) B8X4 2020 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CASE ASSY
2S3-46101-10-00
Unavailable
3
BREATHER ASSY
2S3-17509-00-00
Unavailable
5
PLATE
2S3-46296-20-00
Unavailable
7
COLLAR, GUIDE
2S3-46153-00-00
Unavailable
8
OIL SEAL
93102-48014-00
Unavailable
10
BEARING
93311-62592-00
Unavailable
11
BEARING
93306-20724-00
Unavailable
12
RACE, INNER
2S3-46122-00-00
Unavailable
14
BEARING
93316-01901-00
Unavailable
15
HOUSING, BEARING
2S3-46152-00-00
Unavailable
16
OIL SEAL
93102-80008-00
Unavailable
17
O-RING
93211-594A4-00
Unavailable
18
BOLT, BUTTON HEAD
92014-08060-00
Unavailable
19
BOLT
90101-12037-00
Unavailable
20
RETAINER, BEARING
2S3-46125-00-00
Unavailable
21
O-RING
93210-86003-00
Unavailable
22
YOKE, JOINT
2S3-17556-01-00
Unavailable
23
NUT
90179-20015-00
Unavailable
24
WASHER, CONICAL SPRING
90208-22004-00
Unavailable
25
OIL SEAL
93102-45014-00
Unavailable
26
PLATE, COVER
2S3-46114-00-00
Unavailable
27
SCREW
90149-06030-00
Unavailable
28
PLUG, STRAIGHT SCREW
90340-14004-00
Unavailable
29
GASKET
214-11198-01-00
Unavailable
30
BOLT, FLANGE
95024-06014-00
Unavailable
31
GASKET (4V2)
90430-06166-00
Unavailable
32
SHIM, THRUST
2S3-46119-00-00
Unavailable
32
SHIM, THRUST
2S3-46119-10-00
Unavailable
32
SHIM, THRUST
2S3-46119-20-00
Unavailable
32
SHIM, THRUST
2S3-46119-30-00
Unavailable
32
SHIM, THRUST
2S3-46119-40-00
Unavailable
32
SHIM, THRUST
2S3-46119-50-00
Unavailable
32
SHIM, THRUST
2S3-46119-60-00
Unavailable
32
SHIM, THRUST
2S3-46119-70-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-00-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-10-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-20-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-30-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-40-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-50-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-60-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-70-00
Unavailable
33
SHIM, RING GEAR
2S3-46117-80-00
Unavailable
34
WASHER, THRUST
2S3-46118-00-00
Unavailable
34
WASHER, THRUST
2S3-46118-10-00
Unavailable
34
WASHER, THRUST
2S3-46118-20-00
Unavailable
34
WASHER, THRUST
2S3-46118-30-00
Unavailable
34
WASHER, THRUST
2S3-46118-40-00
Unavailable
34
WASHER, THRUST
2S3-46118-50-00
Unavailable
34
WASHER, THRUST
2S3-46118-60-00
Unavailable
34
WASHER, THRUST
2S3-46118-70-00
Unavailable
34
WASHER, THRUST
2S3-46118-80-00
Unavailable
34
WASHER, THRUST
2S3-46118-90-00
Unavailable
35
PIN, DOWEL (8V2)
93605-23164-00
Unavailable
36
HOLDER
2S3-46862-00-00
Unavailable
37
SCREW
90149-06030-00
Unavailable
38
WASHER, PLATE
90201-12033-00
Unavailable
39
SHAFT, DRIVE
2S3-46172-01-00
Unavailable
40
YOKE, JOINT
2S3-17556-01-00
Unavailable
41
. WASHER, PLATE
90201-29M01-00
Unavailable
42
CIRCLIP
99009-28400-00
Unavailable
43
CIRCLIP
93440-32194-00
Unavailable
44
BEARING
93399-99965-00
Unavailable
45
CIRCLIP
93440-23197-00
Unavailable
46
SPIDER
1YW-46187-10-00
Unavailable
47
O-RING(83R)
93210-28763-00
Unavailable
48
CAP
2S3-46231-00-00
Unavailable
49
COLLAR
90387-06235-00
Unavailable
50
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
51
BOLT,SOCKET
91317-06045-00
Unavailable
52
YOKE, JOINT
2S3-46186-00-00
Unavailable
53
BEARING
93399-99965-00
Unavailable
54
CIRCLIP
93440-23197-00
Unavailable
55
SPIDER
1YW-46187-10-00
Unavailable
56
PLUG
90331-37001-00
Unavailable
57
BEARING
93399-99965-00
Unavailable
58
CIRCLIP
93440-23197-00
Unavailable
59
NUT, CROWN(2GG)
90176-10075-00
Unavailable
60
WASHER, PLATE
92990-10600-00
Unavailable
61
COVER 1
2S3-4613F-00-00
Unavailable
62
BOLT, FLANGE(3DM)
95024-06020-00
Unavailable
63
GASKET 256113960000
90430-06014-00
Unavailable
