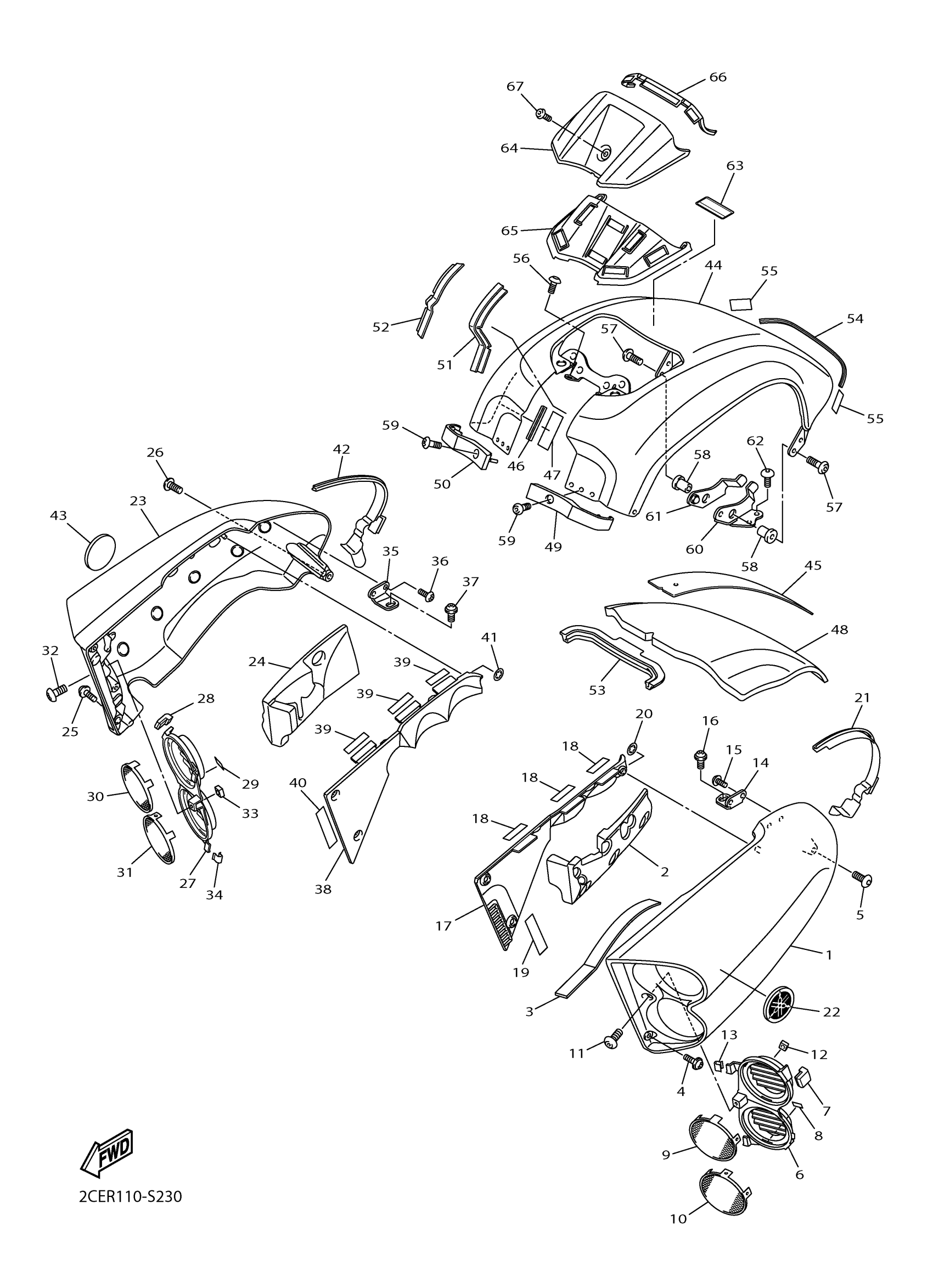

Find the part on the Side Cover diagram for your 2018 Yamaha V-Max (VMX17JGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha V-Max (VMX17JGY) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

2S3-21711-00-P1

—
Out of stock

2

DAMPER, LOCATING 1

2S3-21778-00-00

1
Out of stock

3

DAMPER

5C7-21649-00-00

1
Out of stock

4

BOLT

90111-06015-00

1
Out of stock

5

BOLT

90111-06041-00

1
Out of stock

6

PANEL 4

2S3-2172H-00-00

—
Out of stock

7

DAMPER, LOCATING 3

2S3-2177M-00-00

1
Out of stock

8

PLATE, FOOTREST

1HX-27415-00-00

1
Out of stock

9

GRILL, AIR INTAKE 1

2S3-2837N-00-00

1
Out of stock

10

GRILL, AIR INTAKE 2

2S3-2837R-00-00

1
Out of stock

11

BOLT, BUTTON HEAD

92014-05012-00

1
Out of stock

12

NUT, SQUARE

90173-05006-00

1
Out of stock

13

GUIDE

1FK-2171H-00-00

1
Out of stock

14

BRKT 7

2S3-2172U-00-00

—
Out of stock

15

BOLT, BUTTON HEAD

92014-05008-00

1
Out of stock

16

BOLT(3DM)

90111-06009-00

—
Out of stock

17

PANEL, INNER 1

2S3-2836K-00-00

—
Out of stock

18

SEAL 1

2S3-21732-00-00

—
Out of stock

19

SEAL 4

2S3-2173N-00-00

—
Out of stock

20

NUT, SPRING(1FK)

90183-06008-00

—
Out of stock

21

MOLE, SIDE COVER 1

2S3-2171L-00-00

—
Out of stock

22

TUNING FORK MARK

2S3-2175B-01-00

—
Out of stock

23

COVER, SIDE 2

2S3-21721-00-P1

—
Out of stock

24

DAMPER, LOCATING 2

2S3-21779-00-00

—
Out of stock

25

BOLT

90111-06015-00

1
Out of stock

26

BOLT

90111-06041-00

1
Out of stock

27

PANEL, 5

2S3-2172J-00-00

—
Out of stock

28

DAMPER, LOCATING 3

2S3-2177M-00-00

1
Out of stock

29

PLATE, FOOTREST

1HX-27415-00-00

1
Out of stock

30

GRILL, AIR INTAKE 1

2S3-2837N-00-00

1
Out of stock

31

GRILL, AIR INTAKE 2

2S3-2837R-00-00

1
Out of stock

32

BOLT, BUTTON HEAD

92014-05012-00

1
Out of stock

33

NUT, SQUARE

90173-05006-00

1
Out of stock

34

GUIDE

1FK-2171H-00-00

1
Out of stock

35

BRKT 8

2S3-2172V-00-00

—
Out of stock

36

BOLT, BUTTON HEAD

92014-05008-00

1
Out of stock

37

BOLT(3DM)

90111-06009-00

—
Out of stock

38

PANEL, INNER 2

2S3-2836L-00-00

—
Out of stock

39

SEAL 1

2S3-21732-00-00

—
Out of stock

40

SEAL 4

2S3-2173N-00-00

—
Out of stock

41

NUT, SPRING(1FK)

90183-06008-00

—
Out of stock

42

MOLE, SIDE COVER 2

2S3-2171M-00-00

—
Out of stock

43

TUNING FORK MARK

2S3-2176B-01-00

—
Out of stock

44

COVER, TOP

2S3-2171A-00-PA

—
Out of stock

45

REINF.

2S3-2175G-00-00

—
Out of stock

46

MOLE 3

2S3-28347-00-00

—
Out of stock

47

DAMPER

2AL-84553-00-00

—
Out of stock

48

DAMPER

2S3-28371-00-00

—
Out of stock

49

DAMPER

2S3-2174X-00-00

—
Out of stock

50

DAMPER

2S3-2174Y-00-00

—
Out of stock

51

MOLE, SIDE COVER 3

2S3-2171N-00-00

—
Out of stock

52

MOLE, SIDE COVER 4

2S3-2171R-00-00

—
Out of stock

53

MOLE, SIDE COVER 5

2S3-2171T-00-00

—
Out of stock

54

MOLE, SIDE COVER 6

2S3-2171U-00-00

—
Out of stock

55

DAMPER

2AL-84553-00-00

—
Out of stock

56

BOLT,HEX. SOCKET BUTTON

90111-06138-00

—
Out of stock

57

BOLT, BUTTON

92017-06020-00

—
Out of stock

58

NUT

90179-06524-00

1
Out of stock

59

BOLT,HEX. SOCKET BUTTON

90111-06132-00

—
Out of stock

60

BRACKET 3

2S3-2172M-00-00

—
Out of stock

61

BRACKET 4

2S3-2172N-00-00

—
Out of stock

62

BOLT

90111-06041-00

1
Out of stock

63

LABEL, CAUTION

1TP-2118K-A2-00

—
Out of stock

64

COVER, METER

2S3-83559-10-00

—
Out of stock

65

MOLE 1

2S3-28345-00-00

—
Out of stock

66

MOLE 2

2S3-28346-00-00

—
Out of stock

67

BOLT, BUTTON HEAD

92014-06010-00

1
Out of stock
