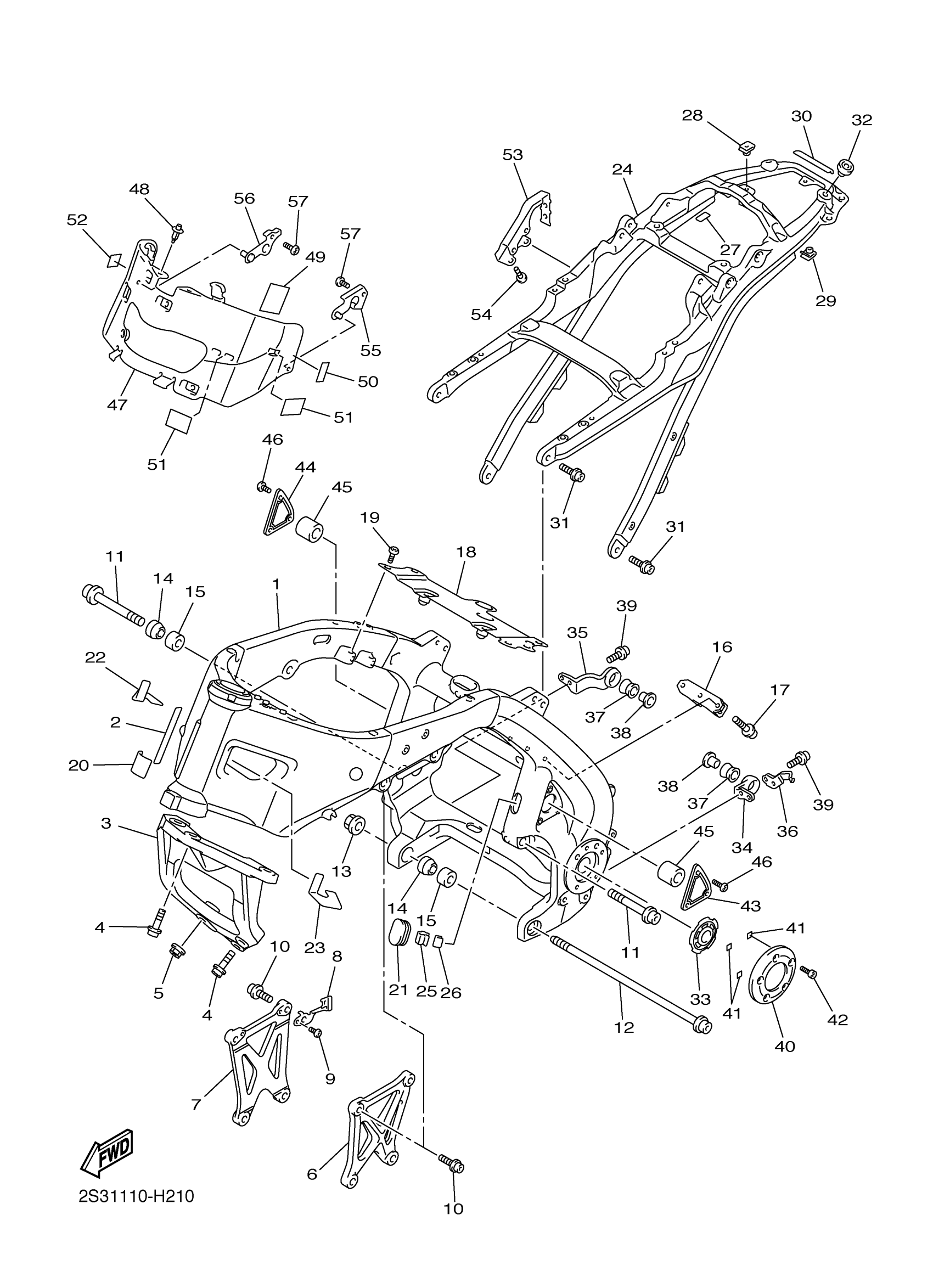

2018 Yamaha V-MAX (VMX17JGY) Frame Diagram
Find the part on the Frame diagram for your 2018 Yamaha V-MAX (VMX17JGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
8
STAY, COUPLER
2S3-21396-00-00
1
Out of stock
16
BRKT., RR. CUSHION 1
2S3-2213E-00-00
1
Out of stock
19
BOLT, BUTTON HEAD
92012-08016-00
—
Out of stock
20
SEAL
2S3-21268-00-00
1
Out of stock
27
SEAL 1
3SP-21732-00-00
—
Out of stock
31
BOLT, HEXAGON SOCKET HEAD
90110-10012-00
—
Out of stock
36
GUIDE, WIRE
2S3-27267-00-00
1
Out of stock
46
SCREW
90149-06146-00
—
Out of stock
49
DAMPER
5JW-2139X-00-00
—
Out of stock
54
BOLT, BUTTON HEAD
92012-06016-00
—
Out of stock
55
BRKT 2
2S3-2612K-00-00
1
Out of stock
56
BRACKET 3
2S3-2612L-00-00
1
Out of stock
