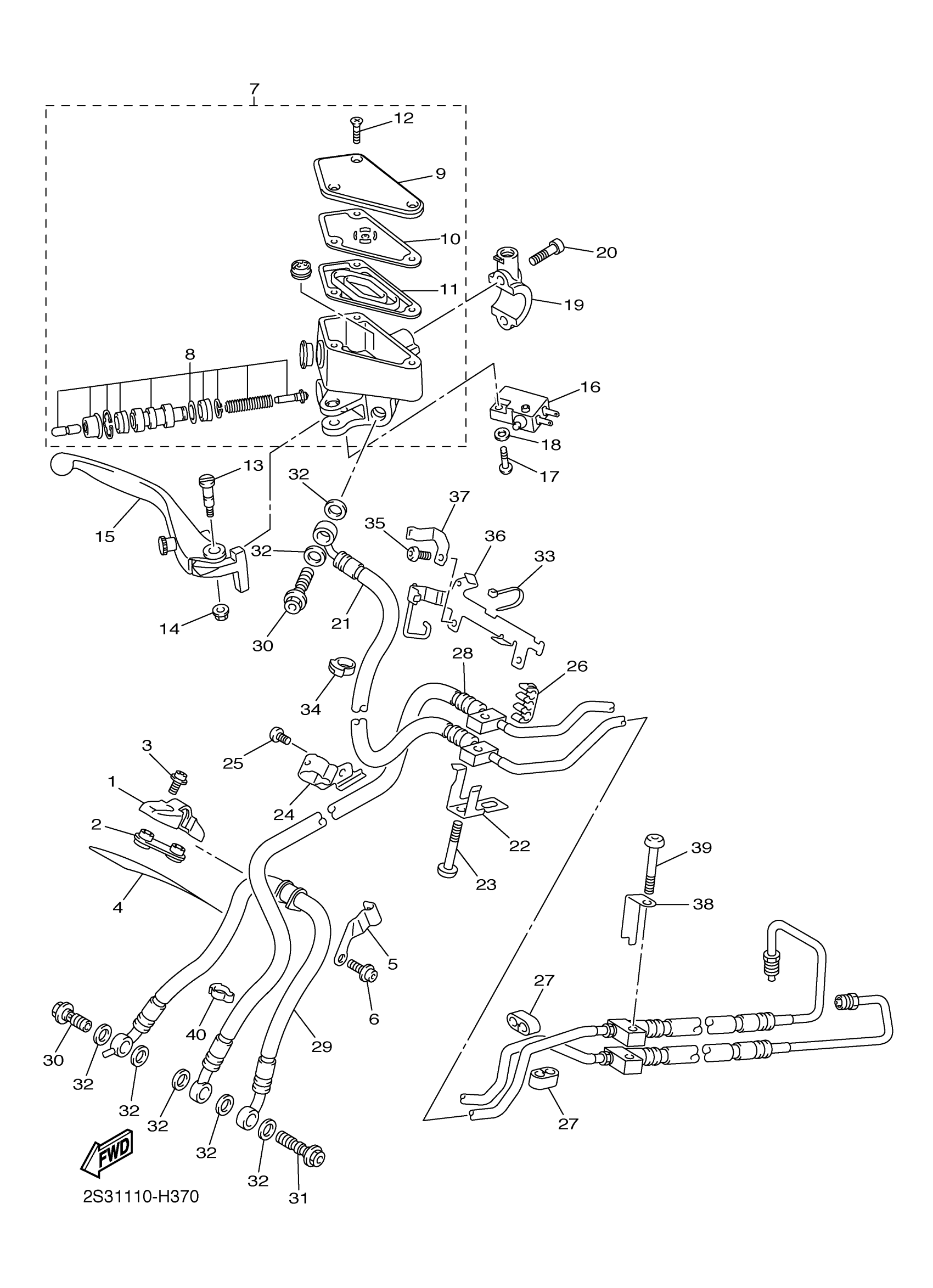

Yamaha VMX17HR (V-MAX) 2CER 2017 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP

2S3-215A3-00-00

Unavailable

2

STAY 1

2S3-21587-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06302-00

$3.35

4

SEAL 1

4TP-21575-00-00

Unavailable

5

HOLDER, WIRE 2

2S3-21598-00-00

Unavailable

6

BOLT,SOCKET HEAD

91314-06010-00

$8.49

7

MASTER CYLINDER SUB ASSY

2S3-W2587-00-00

Unavailable

8

CYLINDER KIT, MASTER

2S3-W0041-00-00

$85.99

9

CAP, RESERVOIR

5YU-25852-10-00

Unavailable

10

BUSH,DIAPHRAGM

5YU-25855-10-00

$6.99

11

DIAPHRAGM, RESERVOIR

5YU-25854-10-00

$20.99

12

SCREW

5VS-2589H-00-00

$4.11

13

BOLT, LEVER

5VY-2589F-01-00

Unavailable

14

NUT, COVER

5VS-2586F-00-00

$6.99

15

LEVER 2

2S3-83922-00-00

Unavailable

16

FRONT STOP SWITCH ASSY

5D3-83980-00-00

Unavailable

17

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

HOLDER 2

5YU-2639F-00-00

Unavailable

20

BOLT

5VS-26332-00-00

Unavailable

21

BRAKE HOSE ASSY

2S3-2584A-00-00

Unavailable

22

HOLDER, BRAKE HOSE 5

2S3-2588F-00-00

Unavailable

23

BOLT, BUTTON HEAD

92012-06045-00

Unavailable

24

HOLDER 2

2S3-2639F-00-00

Unavailable

25

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

26

CLAMP

90464-07M05-00

Unavailable

27

DAMPER

2S3-26113-00-00

Unavailable

28

HOSE, BRAKE

2S3-2584B-00-00

Unavailable

29

HOSE, BRAKE 2

2S3-25873-00-00

Unavailable

30

BOLT, UNION

90401-10172-00

Unavailable

31

BOLT, UNION

90401-10042-00

Unavailable

32

GASKET

90430-10005-00

Unavailable

33

BAND

1UA-82591-00-00

Unavailable

34

CLAMP

90464-16003-00

Unavailable

35

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

36

HOLDER, BRAKE HOSE 1

2S3-25875-00-00

Unavailable

37

HOLDER, BRAKE HOSE 2

2S3-25876-00-00

Unavailable

38

HOLDER, BRAKE HOSE 3

2S3-25887-00-00

Unavailable

39

BOLT, BUTTON HEAD

92017-06040-00

Unavailable

40

CLAMP

90464-12013-00

Unavailable
