2016 Yamaha V-Max (VMX17GL) Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2016 Yamaha V-Max (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

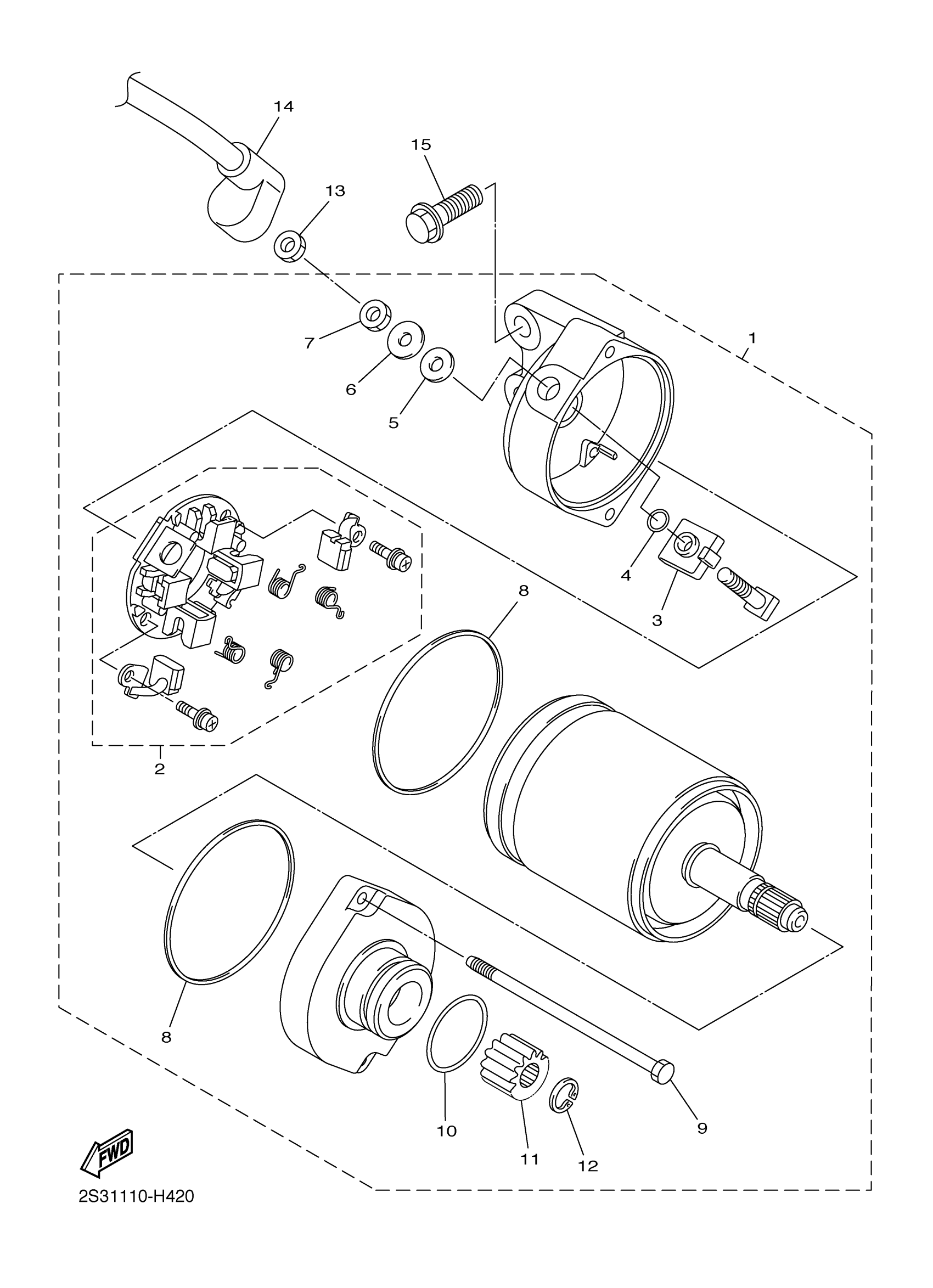

2016 Yamaha V-Max (VMX17GL) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY

2S3-81890-00-00

1
Out of stock

2

BRUSH SET

2S3-81801-00-00

1
Out of stock

3

BUSH, TERMINAL

2S3-8182G-00-00

—
Out of stock

4

O-RING (26H)

93210-06632-00

1
Out of stock

5

WASHER, PLAIN

8FA-8181L-00-00

—
Out of stock

6

WASHER

1D7-81835-00-00

1
Out of stock

7

NUT(650)

95380-06700-00

1
Out of stock

8

GASKET

5PX-81861-00-00

—
Out of stock

9

SCREW

8FA-81846-01-00

1
Out of stock

10

O-RING(1RL)

93210-25711-00

1
Out of stock

11

GEAR, STARTING MOTOR

5PX-15511-00-00

1
Out of stock

12

CIRCLIP

99009-10800-00

—
Out of stock

13

NUT(650)

95380-06700-00

1
Out of stock

14

CORD COMP.

2S3-8183G-00-00

—
Out of stock

15

BOLT, FLANGE

95022-08030-00

1
Out of stock
