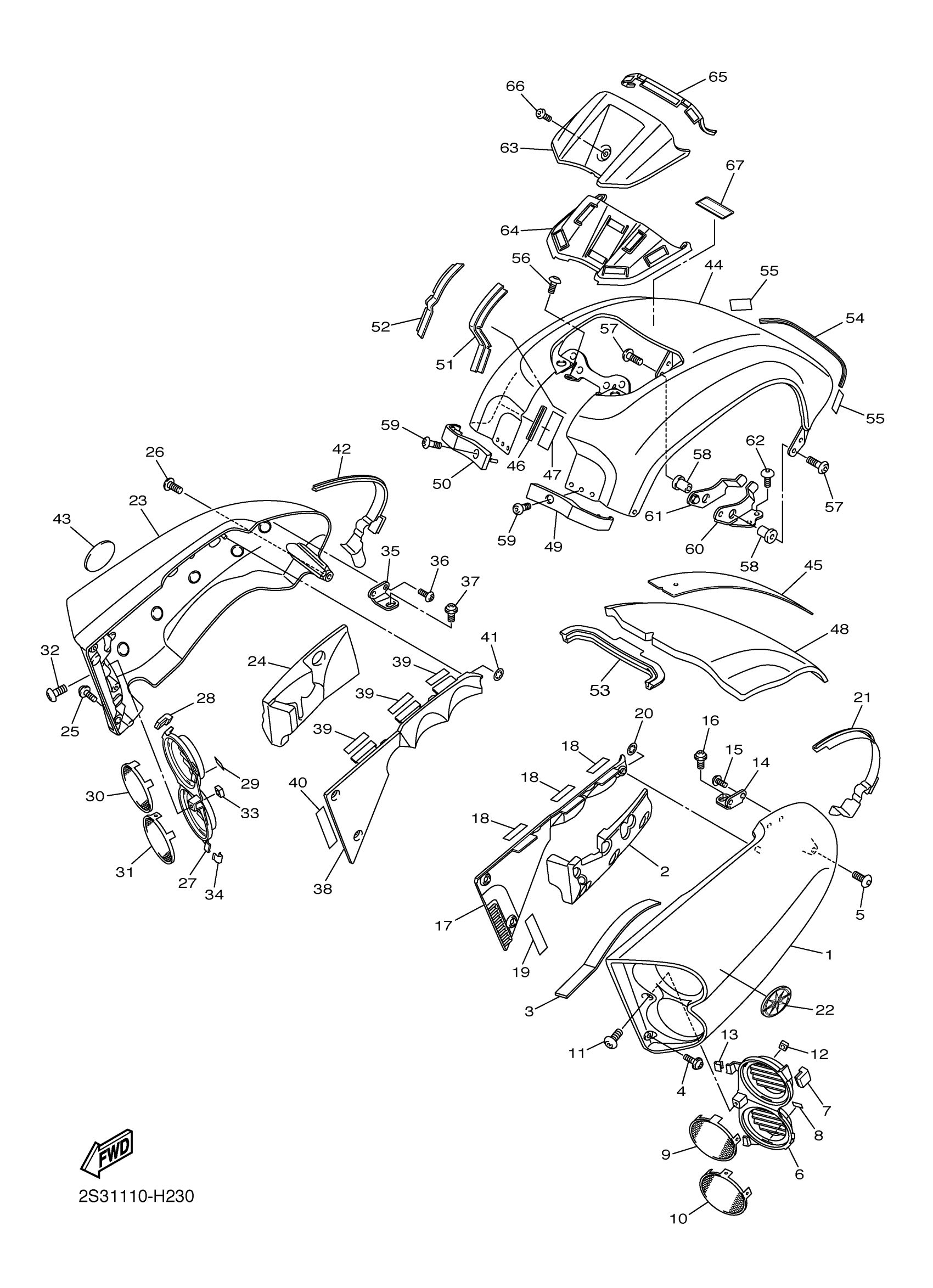

Yamaha VMX17GL (V-MAX) 2CEG 2016 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

2S3-21711-00-P0

Unavailable

2

DAMPER, LOCATING 1

2S3-21778-00-00

$35.99

3

DAMPER

5C7-21649-00-00

$7.99

4

BOLT

90111-06015-00

$8.49

5

BOLT

90111-06041-00

$8.49

6

PANEL 4

2S3-2172H-00-00

Unavailable

7

DAMPER, LOCATING 3

2S3-2177M-00-00

$7.99

8

PLATE, FOOTREST

1HX-27415-00-00

$6.99

9

GRILL, AIR INTAKE 1

2S3-2837N-00-00

Unavailable

10

GRILL, AIR INTAKE 2

2S3-2837R-00-00

Unavailable

11

BOLT, BUTTON HEAD

92014-05012-00

$3.77

12

NUT, SQUARE

90173-05006-00

$7.49

13

GUIDE

1FK-2171H-00-00

$7.99

14

BRKT 7

2S3-2172U-00-00

Unavailable

15

BOLT, BUTTON HEAD

92014-05008-00

$4.08

16

BOLT(3DM)

90111-06009-00

Unavailable

17

PANEL, INNER 1

2S3-2836K-00-00

Unavailable

18

SEAL 1

2S3-21732-00-00

Unavailable

19

SEAL 4

2S3-2173N-00-00

Unavailable

20

NUT, SPRING(1FK)

90183-06008-00

Unavailable

21

MOLE, SIDE COVER 1

2S3-2171L-00-00

Unavailable

22

EMBLEM 3D

2S3-2173B-00-00

Unavailable

23

COVER, SIDE 2

2S3-21721-00-P0

Unavailable

24

DAMPER, LOCATING 2

2S3-21779-00-00

Unavailable

25

BOLT

90111-06015-00

$8.49

26

BOLT

90111-06041-00

$8.49

27

PANEL, 5

2S3-2172J-00-00

Unavailable

28

DAMPER, LOCATING 3

2S3-2177M-00-00

$7.99

29

PLATE, FOOTREST

1HX-27415-00-00

$6.99

30

GRILL, AIR INTAKE 1

2S3-2837N-00-00

Unavailable

31

GRILL, AIR INTAKE 2

2S3-2837R-00-00

Unavailable

32

BOLT, BUTTON HEAD

92014-05012-00

$3.77

33

NUT, SQUARE

90173-05006-00

$7.49

34

GUIDE

1FK-2171H-00-00

$7.99

35

BRKT 8

2S3-2172V-00-00

Unavailable

36

BOLT, BUTTON HEAD

92014-05008-00

$4.08

37

BOLT(3DM)

90111-06009-00

Unavailable

38

PANEL, INNER 2

2S3-2836L-00-00

Unavailable

39

SEAL 1

2S3-21732-00-00

Unavailable

40

SEAL 4

2S3-2173N-00-00

Unavailable

41

NUT, SPRING(1FK)

90183-06008-00

Unavailable

42

MOLE, SIDE COVER 2

2S3-2171M-00-00

Unavailable

43

EMBLEM 3D

2S3-2174B-00-00

Unavailable

44

COVER, TOP

2S3-YK217-00-P8

Unavailable

45

REINF.

2S3-2175G-00-00

Unavailable

46

MOLE 3

2S3-28347-00-00

Unavailable

47

DAMPER

2AL-84553-00-00

Unavailable

48

DAMPER

2S3-28371-00-00

Unavailable

49

DAMPER

2S3-2174X-00-00

Unavailable

50

DAMPER

2S3-2174Y-00-00

Unavailable

51

MOLE, SIDE COVER 3

2S3-2171N-00-00

Unavailable

52

MOLE, SIDE COVER 4

2S3-2171R-00-00

Unavailable

53

MOLE, SIDE COVER 5

2S3-2171T-00-00

Unavailable

54

MOLE, SIDE COVER 6

2S3-2171U-00-00

Unavailable

55

DAMPER

2AL-84553-00-00

Unavailable

56

BOLT,HEX. SOCKET BUTTON

90111-06138-00

Unavailable

57

BOLT, BUTTON

92017-06020-00

Unavailable

58

NUT

90179-06524-00

Unavailable

59

BOLT,HEX. SOCKET BUTTON

90111-06132-00

Unavailable

60

BRACKET 3

2S3-2172M-00-00

Unavailable

61

BRACKET 4

2S3-2172N-00-00

Unavailable

62

BOLT

90111-06041-00

$8.49

63

COVER, METER

2S3-83559-00-00

Unavailable

64

MOLE 1

2S3-28345-00-00

Unavailable

65

MOLE 2

2S3-28346-00-00

Unavailable

66

BOLT, BUTTON HEAD

92014-06010-00

Unavailable

67

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable
