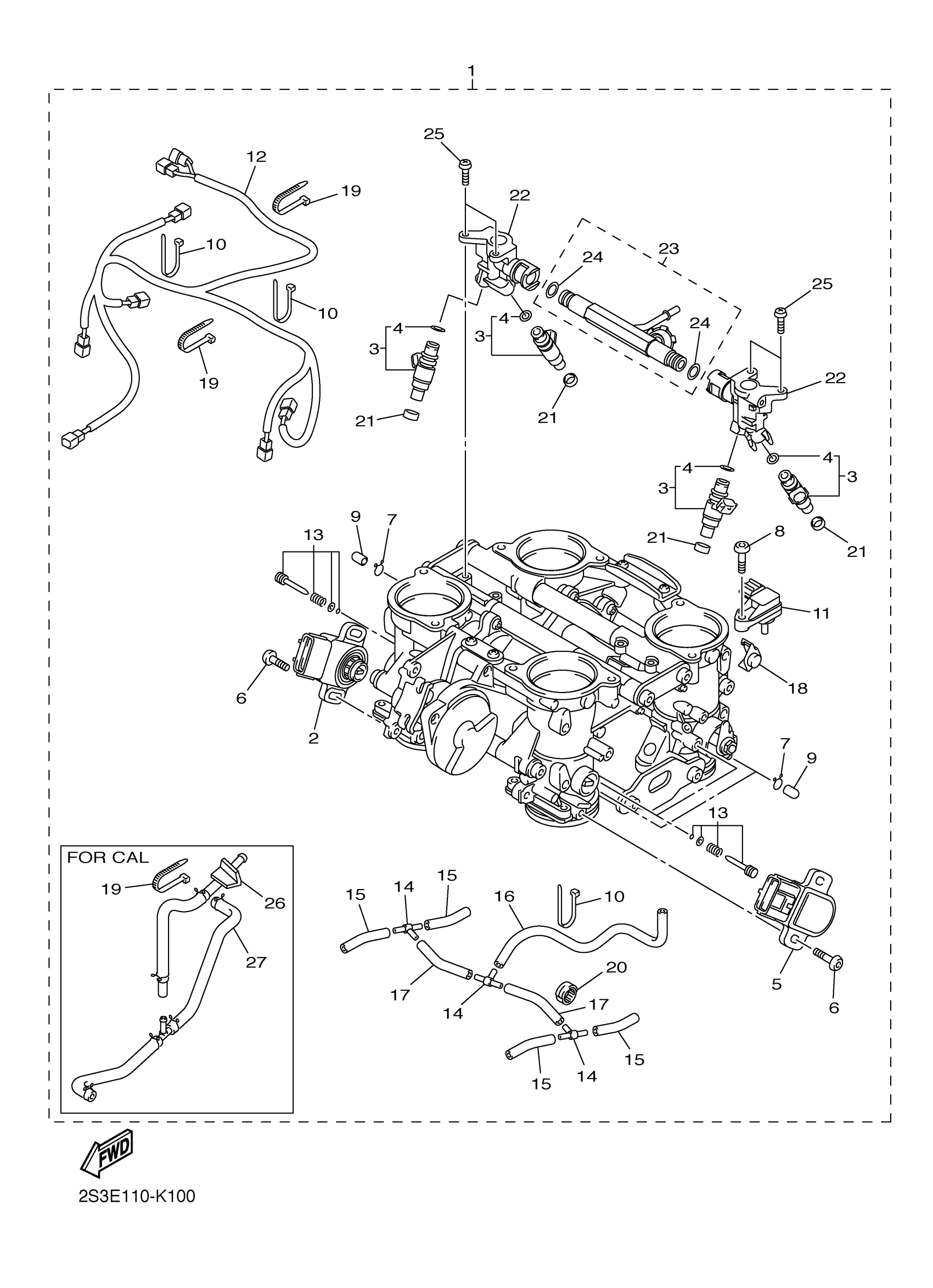

Yamaha VMX17GL (V-MAX) 2CEG 2016 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

2S3-13750-10-00

Unavailable

2

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

$210.99

3

INJECTOR

2S3-13761-00-00

Unavailable

4

O-RING

5PS-14147-00-00

$13.49

5

THROTTLE SENSOR AS

2S3-85885-01-00

Unavailable

6

SCREW

8CC-14216-10-00

$7.99

7

CLIP, PIPE

8A7-14139-00-00

$8.99

8

SCREW

2C0-14216-00-00

$3.28

9

CAP

895-14169-00-00

$5.49

10

CLIP

4KM-14137-00-00

$5.49

11

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

12

WIRE, SUB LEAD

2S3-82509-00-00

Unavailable

13

PILOT SCREW SET

2C0-14105-00-00

$34.99

14

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

15

PIPE 1

5FL-14348-10-00

$5.49

16

HOSE, VACUUM SENSING 1

2S3-13542-00-00

Unavailable

17

HOSE, VACUUM SENSING 2

2S3-13544-00-00

Unavailable

18

CAP

2S3-13947-00-00

Unavailable

19

BAND, SWITCH CORD

437-83936-01-00

Unavailable

20

CLAMP

90464-13227-00

Unavailable

21

GASKET, MANIFOLD

8FP-13556-00-00

Unavailable

22

PIPE, INL.

2S3-1393A-00-00

Unavailable

23

JOINT, THROTTLE BODY 1

2S3-13795-00-00

Unavailable

24

O-RING

39P-14147-00-00

Unavailable

25

SCREW, PAN

98517-05012-00

Unavailable

26

HOSE

2S3-1410E-10-00

Unavailable

27

HOSE

2S3-1410E-00-00

Unavailable
