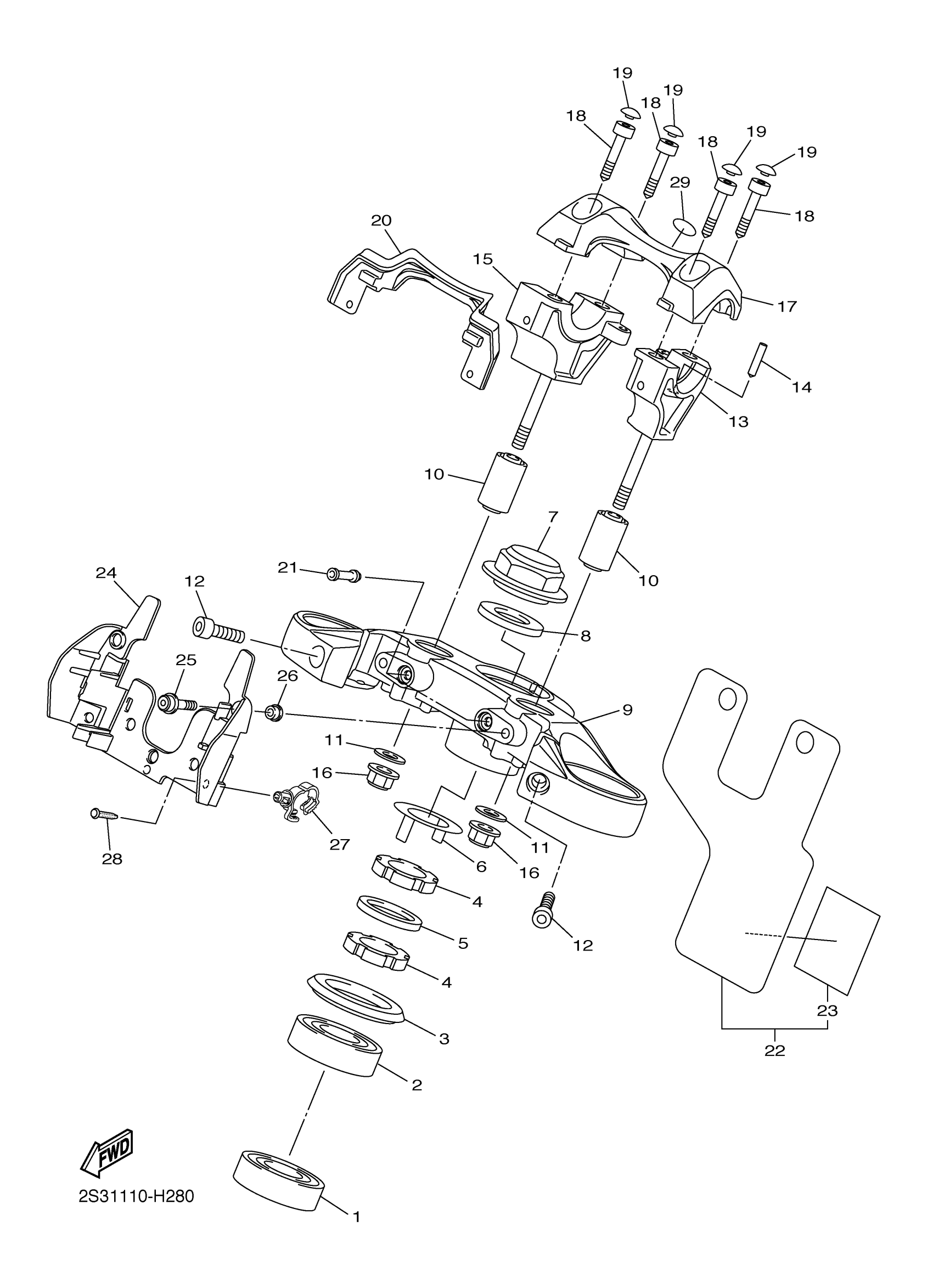

Yamaha VMX17FR (V-MAX) 2CEC 2015 STEERING Diagram

#

Description
Price

1

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$67.99

2

BEARING(4EW)

93332-00078-00

$64.99

3

COVER, BALL RACE 2

4EW-23416-00-00

$34.99

4

NUT

90179-28011-00

Unavailable

5

WASHER, PLATE(4GY)

90202-28216-00

$4.72

6

WASHER, SPECIAL

4GY-23418-00-00

Unavailable

7

NUT

90179-22009-00

Unavailable

8

WASHER, PLATE

90201-22018-00

$5.60

9

CROWN, HANDLE

2S3-23435-00-00

Unavailable

10

HOLDER, DAMPER

5A8-23434-01-00

Unavailable

11

WASHER, PLATE(3GM)

90201-106M5-00

$10.49

12

BOLT,SOCKET

91314-08030-00

$2.34

13

HOLDER

2S3-23857-01-00

$175.99

14

PIN, SPRING(7EH)

91609-50020-00

Unavailable

15

HOLDER 2

2S3-23867-01-00

Unavailable

16

NUT, S/L FLANGE

95602-10200-00

Unavailable

17

HOLDER, HANDLE UPPER

2S3-23441-00-00

Unavailable

18

BOLT,SOCKET

91314-08030-00

$2.34

19

PLUG(42X)

90338-08163-00

Unavailable

20

DAMPER

2S3-23465-00-00

Unavailable

21

SPACER

2S3-23448-00-00

Unavailable

22

PROTECTER COMP., 1

2S3-2314H-00-00

Unavailable

23

PATCH

2S3-2317A-00-00

Unavailable

24

GUIDE, CABLE

2S3-23389-00-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06025-00

Unavailable

26

COLLAR

90387-06210-00

Unavailable

27

CLAMP

90464-18002-00

Unavailable

28

RIVET

90269-03002-00

Unavailable

29

TUNING FORK MARK

5GT-2836B-10-00

Unavailable
