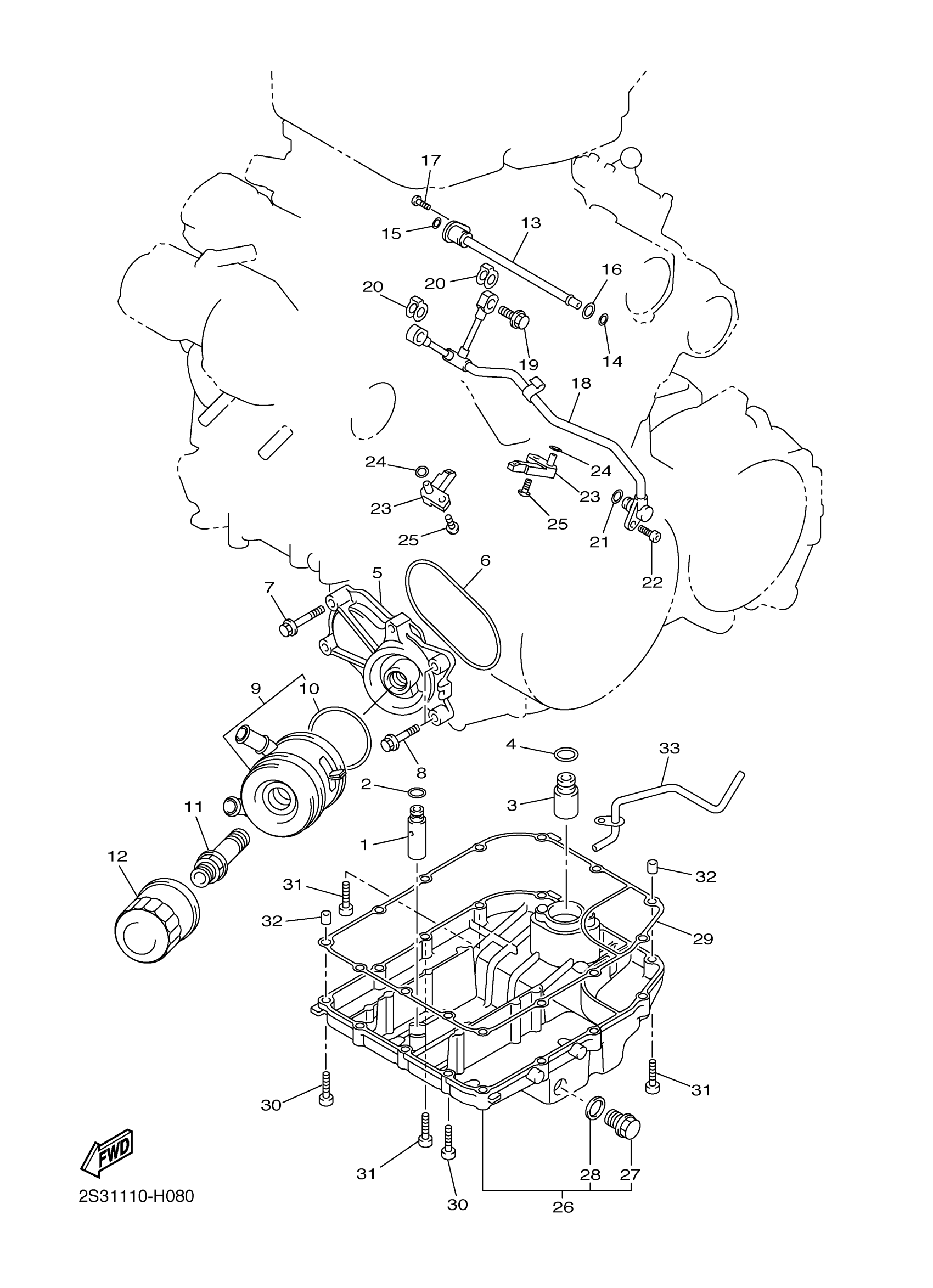

Yamaha VMX17FR (V-MAX) 2CEC 2015 OIL CLEANER Diagram

#

Description
Price

1

RELIEF VALVE ASSY

2C0-13490-00-00

$102.99

2

O-RING (22U)

93210-15566-00

$7.49

3

PLUG

2S3-15189-00-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

PLATE, ADAPTOR

2S3-13461-00-00

Unavailable

6

O-RING

2S3-13016-00-00

Unavailable

7

BOLT, FLANGE

95817-06040-00

$5.60

8

BOLT, FLANGE

95812-06030-00

$8.49

9

OIL COOLER ASSY

2S3-13470-00-00

Unavailable

10

O-RING

5JW-13473-00-00

$42.99

11

BOLT, UNION

90401-20006-00

Unavailable

12

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

$16.49

13

PIPE, DELIVERY 2

2S3-13171-00-00

Unavailable

14

O-RING(26H)

93210-06667-00

$7.49

15

O-RING (5Y1)

93210-09525-00

$5.60

16

O-RING

93210-12010-00

Unavailable

17

SCREW

90149-06156-00

Unavailable

18

PIPE, DELIVERY 3

2S3-13181-00-00

Unavailable

19

BOLT, UNION(1HX)

90401-10106-00

Unavailable

20

GASKET

2S3-13475-00-00

Unavailable

21

O-RING

93210-10001-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

23

NOZZLE 3

2S3-15155-00-00

Unavailable

24

O-RING

93210-04001-00

Unavailable

25

SCREW

90149-06081-00

Unavailable

26

STRAINER COVER ASSY

2S3-13400-00-00

Unavailable

27

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

28

GASKET

214-11198-01-00

Unavailable

29

GASKET, STRAINER COVER

2S3-13414-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

32

PIN, DOWEL

99530-08012-00

Unavailable

33

PIPE, DELIVERY 4

2S3-13191-00-00

Unavailable
