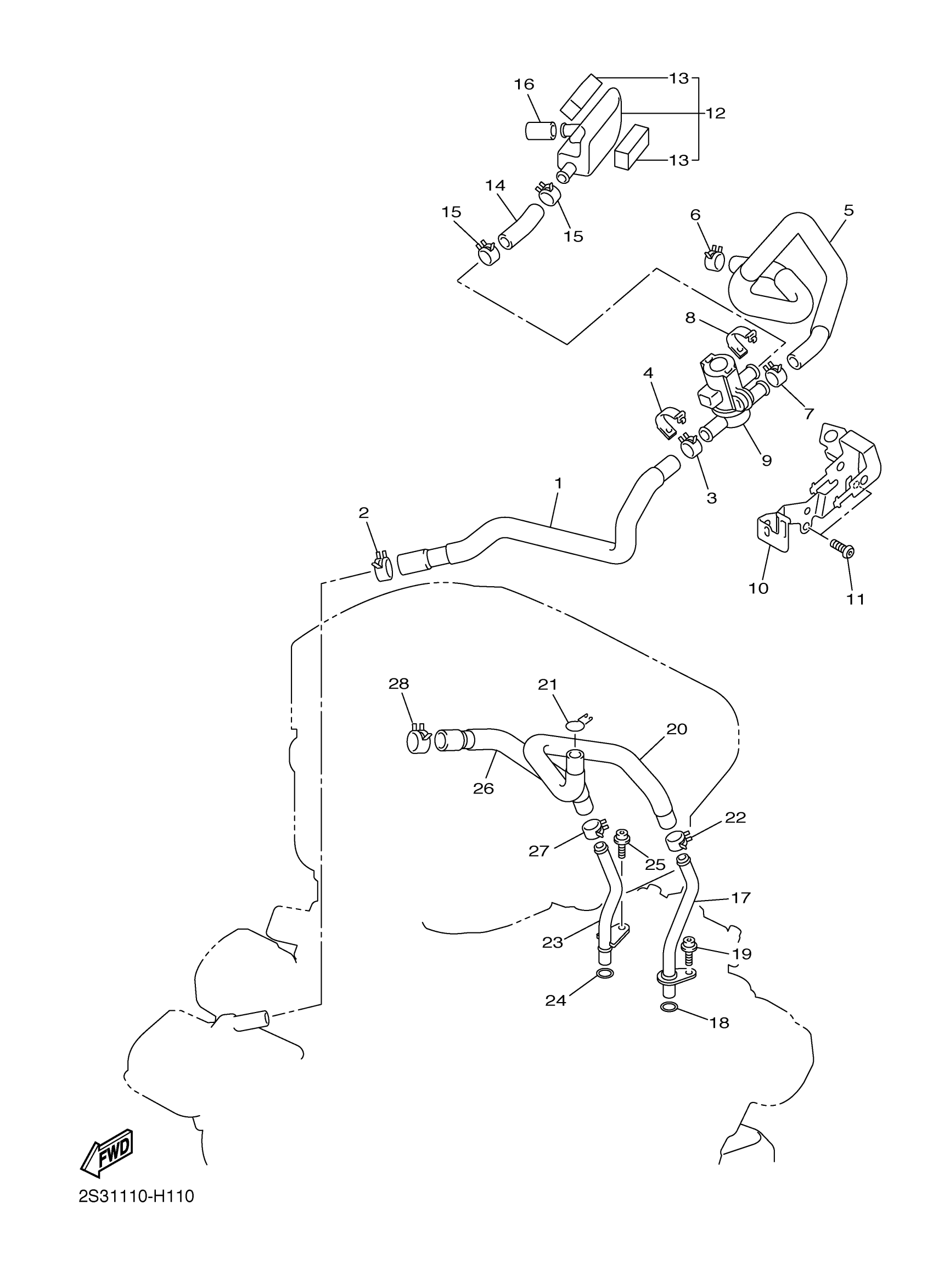

Yamaha VMX17FR (V-MAX) 2CEC 2015 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

HOSE, BEND 1

2S3-14881-00-00

Unavailable

2

CLIP (4V3)

90467-19051-00

$2.34

3

CLIP(3TB)

90467-17128-00

$8.49

4

COVER 1

5JW-14723-00-00

Unavailable

5

HOSE, BEND 2

2S3-14882-00-00

Unavailable

6

CLIP (4V3)

90467-19051-00

$2.34

7

CLIP(3TB)

90467-17128-00

$8.49

8

COVER 1

5JW-14723-00-00

Unavailable

9

AIR CUT VALVE ASSY

2S3-14840-00-00

Unavailable

10

STAY

2S3-14834-00-00

Unavailable

11

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

12

CHAMBER, AIR

2S3-13581-00-00

Unavailable

13

DAMPER 1

2S3-14425-00-00

Unavailable

14

HOSE

90445-18009-00

Unavailable

15

CLIP(3TB)

90467-17128-00

$8.49

16

HOSE

90445-18010-00

Unavailable

17

JOINT, BREATHER

2S3-11116-00-00

Unavailable

18

O-RING(3LD)

93210-12790-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

Unavailable

20

PIPE, BREATHER 1

2S3-11166-00-00

Unavailable

21

CLIP

90467-180A1-00

Unavailable

22

CLIP

90467-16009-00

Unavailable

23

PIPE 1

2S3-1111J-00-00

Unavailable

24

O-RING (26H)

93210-14579-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

Unavailable

26

PIPE 6

2S3-1116J-00-00

Unavailable

27

CLIP

90467-21068-00

Unavailable

28

CLIP (10V)

90467-23067-00

Unavailable
