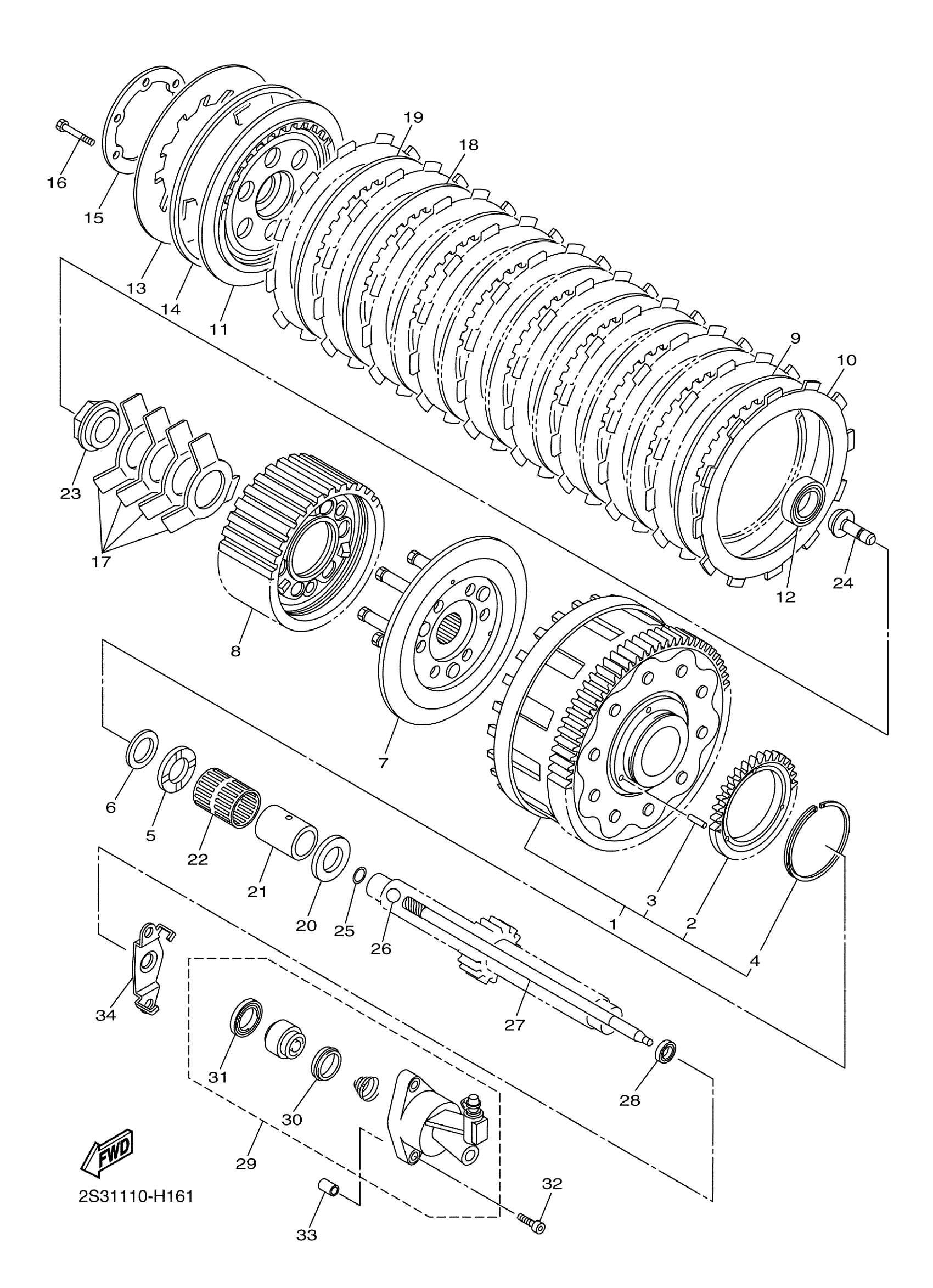

Yamaha VMX17EGY (V-MAX) 2CE5 2014 CLUTCH Diagram
#
1
PRIMARY DRIVEN GEAR COMP.
2S3-16150-00-00
Unavailable
2
GEAR, PUMP DRIVE
2S3-13324-00-00
Unavailable
4
. CIRCLIP
93440-57M01-00
Unavailable
5
PLATE, THRUST 1
4B1-16154-00-00
Unavailable
6
WASHER, CONICAL SPRING
90208-25002-00
Unavailable
7
PRESSURE PLATE ASSY 2
2S3-16360-00-00
Unavailable
8
CLUTCH BOSS ASSY
2S3-16370-00-00
Unavailable
11
PLATE, PRESSURE 1
2S3-16351-00-00
Unavailable
15
PLATE, PRESSURE 3
2S3-16353-00-00
Unavailable
16
BOLT, HEXAGON
97017-06025-00
Unavailable
17
SPRING
2S3-16539-01-00
Unavailable
18
PLATE, CLUTCH 1
2H7-16324-10-00
Unavailable
19
PLATE, CLUTCH 1
2H7-16324-10-00
Unavailable
19
PLATE, CLUTCH 1
47X-16324-10-00
Unavailable
20
PLATE, THRUST 2
5VY-16164-00-00
Unavailable
21
COLLAR
90387-25026-00
Unavailable
22
BEARING
93310-33559-00
Unavailable
23
NUT, LOCK
2S3-16377-00-00
Unavailable
24
ROD, PUSH 1
4KG-16356-00-00
Unavailable
25
O-RING (26H)
93210-06632-00
Unavailable
26
BALL (498)
93511-32027-00
Unavailable
27
ROD, PUSH 2
2S3-16357-00-00
Unavailable
28
OIL SEAL
93102-08008-00
Unavailable
29
PUSH LEVER COMP.
2S3-16381-00-00
Unavailable
30
CUP
2S3-1638G-00-00
Unavailable
31
BOOT
2S3-1638J-00-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
33
PIN, DOWEL
99530-08012-00
Unavailable
34
SHIM, KICK SHAFT
2S3-15645-00-00
Unavailable
