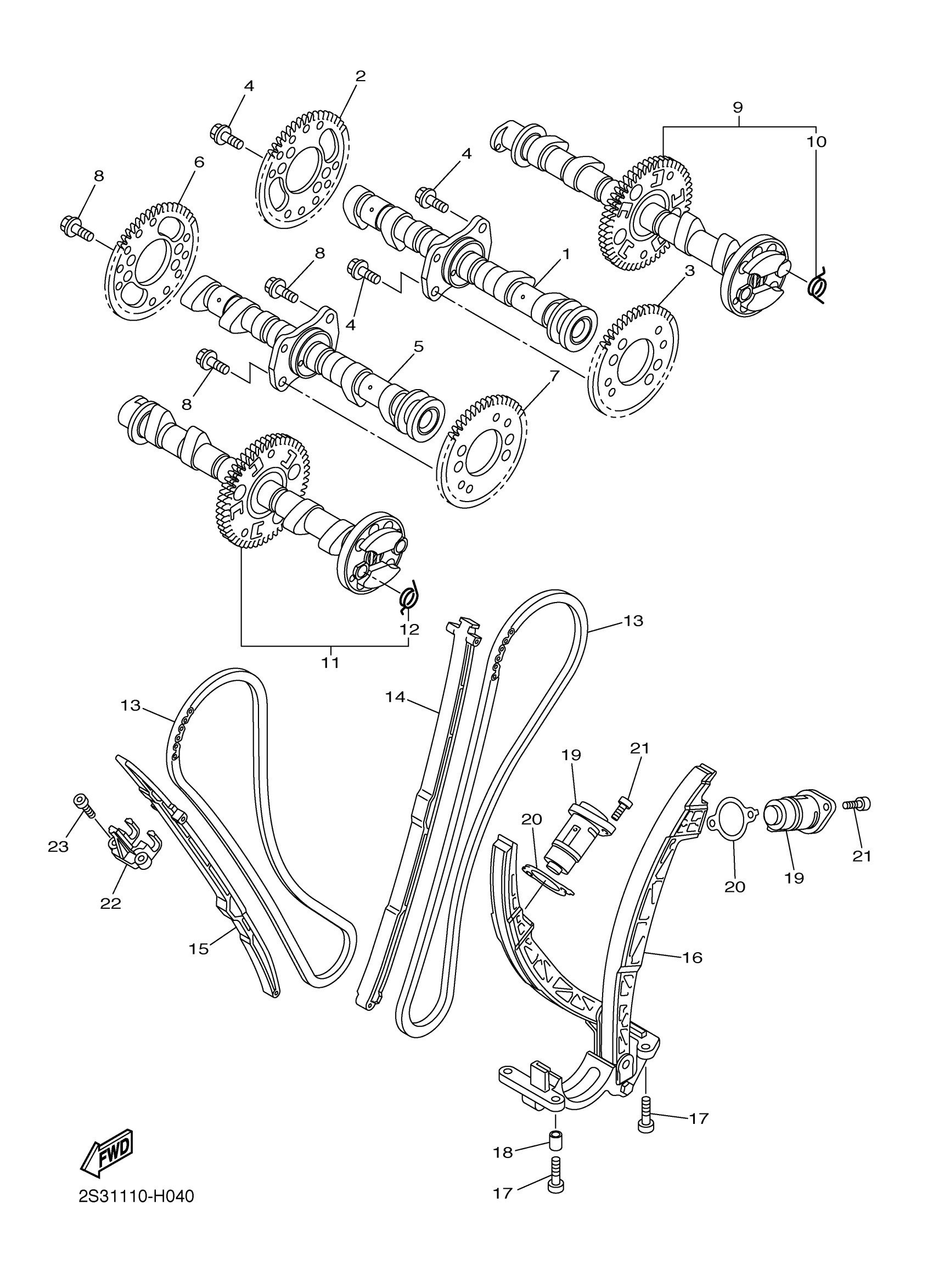

Yamaha VMX17EGY (V-MAX) 2CE5 2014 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

2S3-W1217-00-00

Unavailable

2

SPROCKET, CAM CHAIN

2S3-12176-00-00

Unavailable

3

GEAR 3

2S3-11554-00-00

Unavailable

4

BOLT, FLANGE

90105-07006-00

$8.49

5

CAMSHAFT 1

2S3-W1217-00-00

Unavailable

6

SPROCKET, CAM CHAIN

2S3-12176-00-00

Unavailable

7

GEAR 3

2S3-11554-00-00

Unavailable

8

BOLT, FLANGE

90105-07006-00

$8.49

9

CAMSHAFT ASSY 2

2S3-12180-00-00

Unavailable

10

SPRING, DECOMPRESSION

2S3-12287-00-00

$3.48

11

CAMSHAFT ASSY 2

2S3-12180-10-00

Unavailable

12

SPRING, DECOMPRESSION

2S3-12287-00-00

$3.48

13

CHAIN

94591-49134-00

Unavailable

14

DAMPER, CHAIN 1

2S3-12251-00-00

Unavailable

15

DAMPER, CHAIN 3

2S3-12253-00-00

Unavailable

16

CHAIN DAMPER ASSY

2S3-12250-00-00

Unavailable

17

BOLT,SOCKET

91317-06025-00

Unavailable

18

PIN, DOWEL

99530-08012-00

Unavailable

19

TENSIONER ASSY, CAM CHAIN

2S3-12210-01-00

Unavailable

20

GASKET, TENSIONER CASE

2S3-12213-00-00

Unavailable

21

BOLT,SOCKET

91317-06016-00

Unavailable

22

GUIDE, STOPPER 1

2S3-12231-00-00

Unavailable

23

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
