2013 Yamaha V-MAX CA (VMX17DC) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2013 Yamaha V-MAX CA (VMX17DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

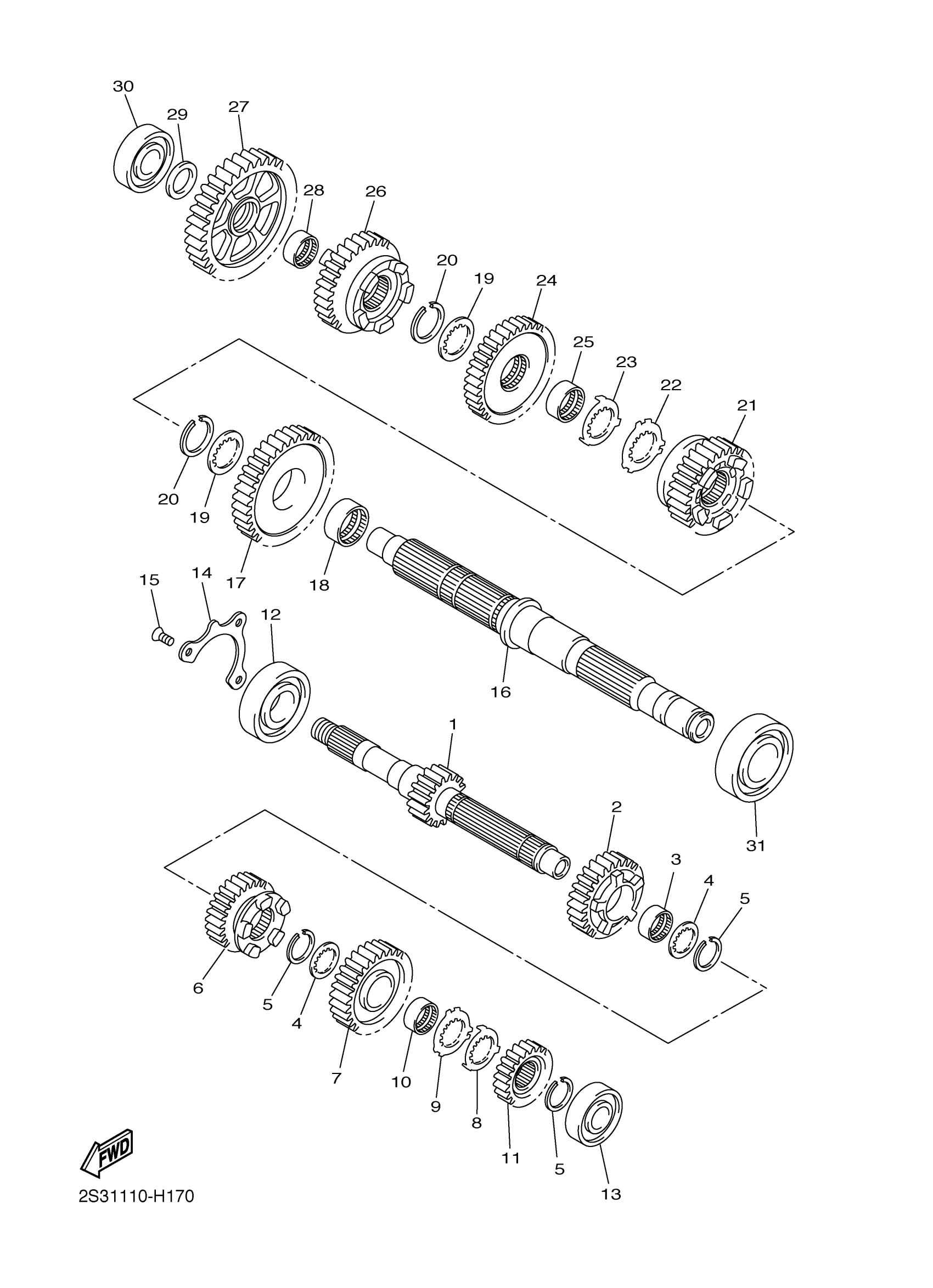

2013 Yamaha V-MAX CA (VMX17DC) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

2S3-17411-00-00

1

$250.32

In stock

2

GEAR, 4TH PINION

2S3-17141-00-00

—

$109.77

In stock

3

COLLAR

90387-28003-00

1

$23.91

In stock

4

WASHER

90209-25011-00

1

$7.22

In stock

5

CIRCLIP

93440-28184-00

1

$3.72

In stock

6

GEAR, 3RD PINION

2S3-17131-01-00

—

$185.26

In stock

7

GEAR, 5TH PINION

2S3-17151-01-00

—

$131.98

In stock

8

WASHER, CLAW

90214-25003-00

1

$7.25

In stock

9

WASHER, CLAW

90214-25004-00

1

$7.23

In stock

10

COLLAR

90387-25025-00

—

$23.17

In stock

11

GEAR, 2ND PINION

2S3-17121-00-00

—

$108.37

In stock

12

1

$81.45

In stock

13

BEARING

93306-37214-00

—

$53.75

In stock

14

PLATE, BEARING COVER

2S3-15383-00-00

—

$14.26

In stock

15

SCREW, COUNTERSUNK

90151-06023-00

1

$6.52

In stock

16

DRIVE AXLE ASSY

2S3-17402-00-00

—

$267.98

In stock

17

GEAR, 2ND WHEEL

2S3-17221-00-00

—

$137.55

In stock

18

COLLAR

90387-3311C-00

—

$15.25

In stock

19

WASHER

90209-30344-00

—

$7.65

In stock

20

CIRCLIP (2H7)

93440-32063-00

—

$8.25

In stock

21

GEAR, 5TH WHEEL

2S3-17251-01-00

—

$171.03

In stock

22

WASHER

90209-30345-00

—

$10.72

In stock

23

WASHER

90209-30343-00

—

$10.34

In stock

24

GEAR, 3RD WHEEL

2S3-17231-00-00

—

$122.42

In stock

25

COLLAR

90387-3310V-00

—

$38.25

In stock

26

GEAR, 4TH WHEEL

2S3-17241-00-00

—

$223.03

In stock

27

GEAR, 1ST WHEEL

2S3-17211-00-00

—

$202.11

In stock

28

COLLAR

90387-25008-00

—

$28.74

In stock

29

WASHER, PLATE(83R)

90201-224L4-00

—

$6.80

In stock

30

BEARING

93306-37214-00

—

$53.75

In stock

31

BEARING(2NL)

93306-20716-00

—

$72.96

In stock
