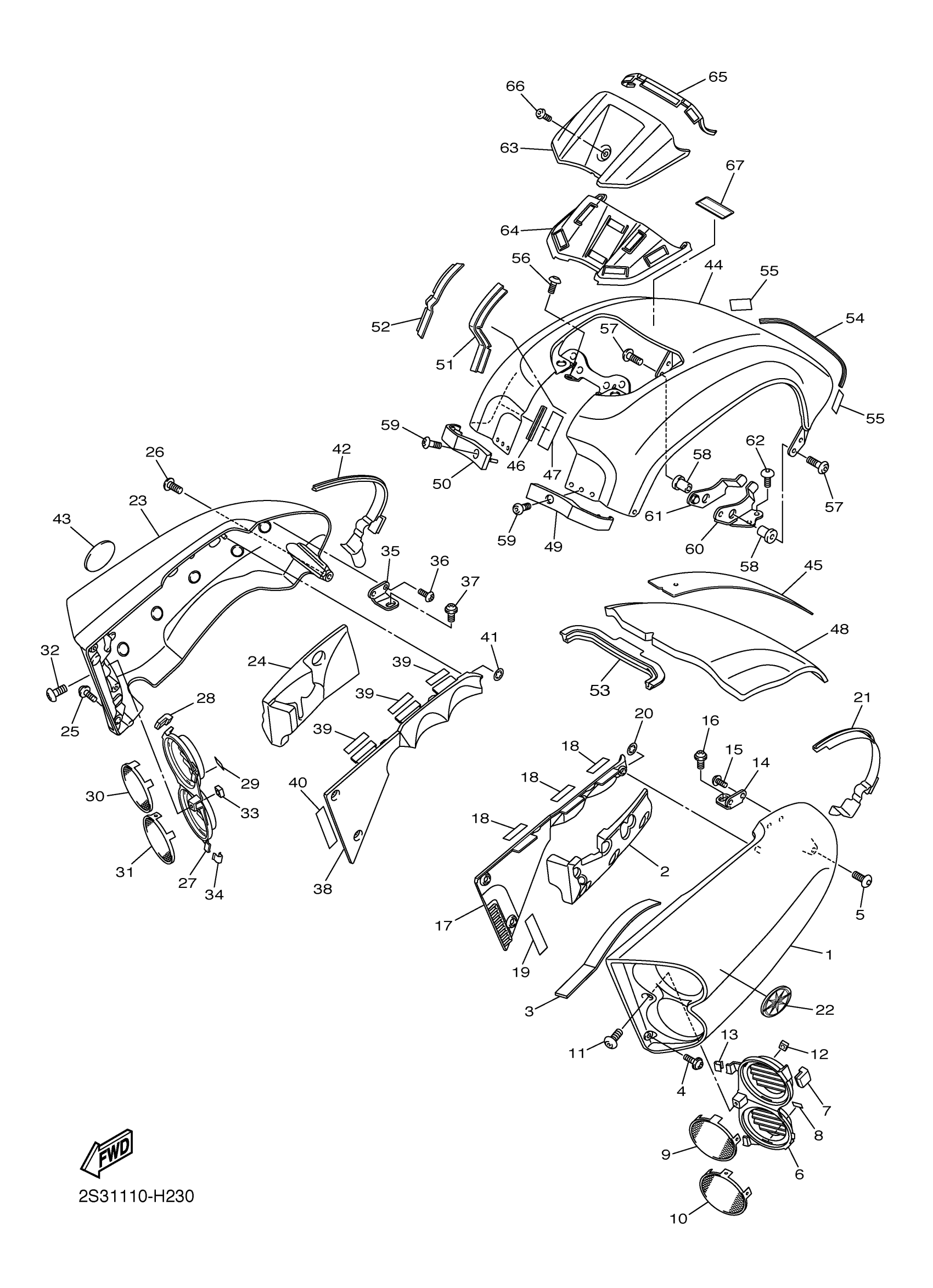

Yamaha VMX17DC (V-MAX CA) 2CE2 2013 SIDE COVER Diagram
#
1
COVER, SIDE 1
2S3-21711-00-P0
Unavailable
6
PANEL 4
2S3-2172H-00-00
Unavailable
14
BRKT 7
2S3-2172U-00-00
Unavailable
16
BOLT(3DM)
90111-06009-00
Unavailable
17
PANEL, INNER 1
2S3-2836K-00-00
Unavailable
18
SEAL 1
2S3-21732-00-00
Unavailable
19
SEAL 4
2S3-2173N-00-00
Unavailable
20
NUT, SPRING(1FK)
90183-06008-00
Unavailable
21
MOLE, SIDE COVER 1
2S3-2171L-00-00
Unavailable
22
EMBLEM 3D
2S3-2173B-00-00
Unavailable
23
COVER, SIDE 2
2S3-21721-00-P0
Unavailable
24
DAMPER, LOCATING 2
2S3-21779-00-00
Unavailable
27
PANEL, 5
2S3-2172J-00-00
Unavailable
35
BRKT 8
2S3-2172V-00-00
Unavailable
37
BOLT(3DM)
90111-06009-00
Unavailable
38
PANEL, INNER 2
2S3-2836L-00-00
Unavailable
39
SEAL 1
2S3-21732-00-00
Unavailable
40
SEAL 4
2S3-2173N-00-00
Unavailable
41
NUT, SPRING(1FK)
90183-06008-00
Unavailable
42
MOLE, SIDE COVER 2
2S3-2171M-00-00
Unavailable
43
EMBLEM 3D
2S3-2174B-00-00
Unavailable
44
COVER, TOP
2S3-YK217-00-P5
Unavailable
45
REINF.
2S3-2175G-00-00
Unavailable
46
MOLE 3
2S3-28347-00-00
Unavailable
47
DAMPER
2AL-84553-00-00
Unavailable
48
DAMPER
2S3-28371-00-00
Unavailable
49
DAMPER
2S3-2174X-00-00
Unavailable
50
DAMPER
2S3-2174Y-00-00
Unavailable
51
MOLE, SIDE COVER 3
2S3-2171N-00-00
Unavailable
52
MOLE, SIDE COVER 4
2S3-2171R-00-00
Unavailable
53
MOLE, SIDE COVER 5
2S3-2171T-00-00
Unavailable
54
MOLE, SIDE COVER 6
2S3-2171U-00-00
Unavailable
55
DAMPER
2AL-84553-00-00
Unavailable
56
BOLT,HEX. SOCKET BUTTON
90111-06138-00
Unavailable
57
BOLT, BUTTON
92017-06020-00
Unavailable
58
NUT
90179-06524-00
Unavailable
59
BOLT,HEX. SOCKET BUTTON
90111-06132-00
Unavailable
60
BRACKET 3
2S3-2172M-00-00
Unavailable
61
BRACKET 4
2S3-2172N-00-00
Unavailable
63
COVER, METER
2S3-83559-00-00
Unavailable
64
MOLE 1
2S3-28345-00-00
Unavailable
65
MOLE 2
2S3-28346-00-00
Unavailable
66
BOLT, BUTTON HEAD
92014-06010-00
Unavailable
67
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
