Description

Price

1

CAST WHEEL, FRONT

2S3-25168-00-98

Unavailable

2

SPACER, BEARING

2S3-25117-00-00

Unavailable

3

OIL SEAL

93106-28043-00

$14.99

4

BEARING 60/22

93306-00420-00

$40.99

5

OIL SEAL(3BC)

93106-40027-00

$15.99

6

ROTOR, SENSOR

2S3-2517G-00-00

$57.99

7

SCREW

90149-05010-00

$8.49

8

TIRE(120/70 R18 M/C 59V)

94112-18033-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

BALANCER, WHEEL

5MT-25398-00-00

$17.49

10

BALANCER, WHEEL

5MT-25398-10-00

$17.49

10

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

11

AXLE, WHEEL

2S3-25181-00-00

Unavailable

12

COLLAR

90387-22030-00

Unavailable

13

BOLT, FLANGE

90105-14002-00

$16.99

14

HOUSING, SENSOR FRONT

2S3-2517A-00-00

Unavailable

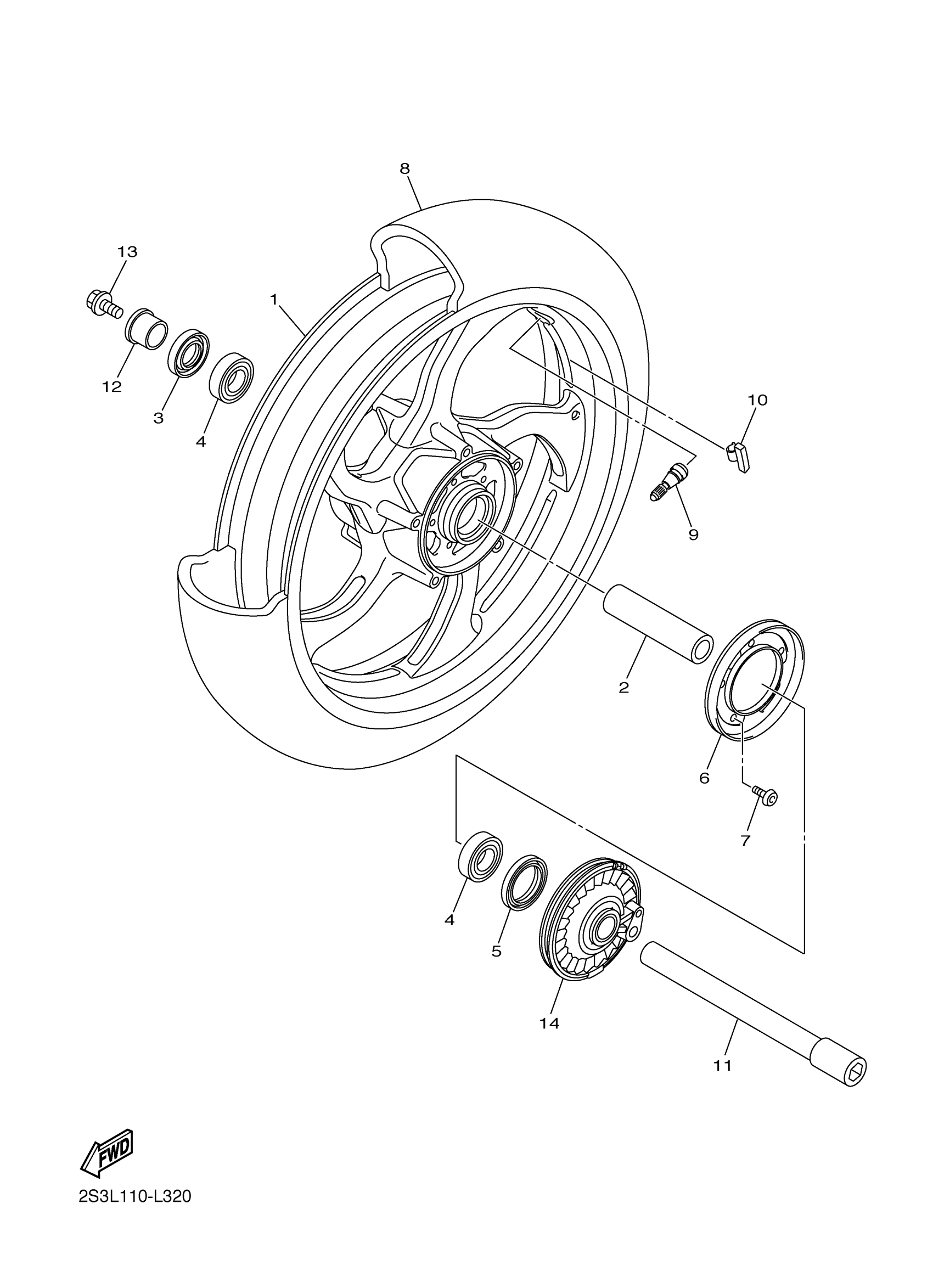

Yamaha VMX17DC (V-MAX CA) 2CE2 2013 FRONT WHEEL Diagram

CAST WHEEL, FRONT

SPACER, BEARING

OIL SEAL

BEARING 60/22

OIL SEAL(3BC)

ROTOR, SENSOR

SCREW

TIRE(120/70 R18 M/C 59V)

VALVE, RIM(2GH)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

AXLE, WHEEL

COLLAR

BOLT, FLANGE

HOUSING, SENSOR FRONT
