2012 Yamaha V-MAX CA (VMX17BCB) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2012 Yamaha V-MAX CA (VMX17BCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

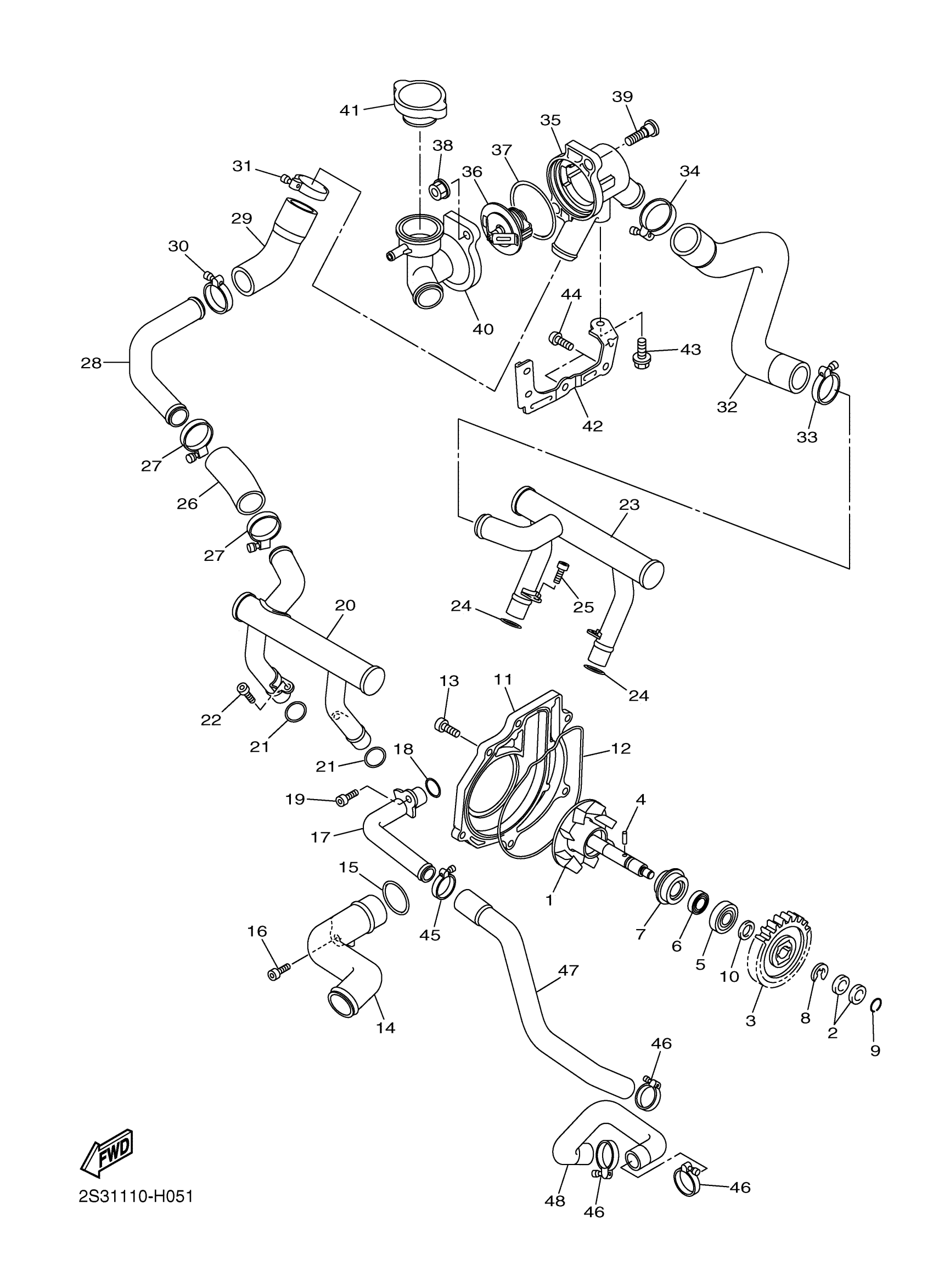

2012 Yamaha V-MAX CA (VMX17BCB) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IMPELLER SHAFT ASSY

2S3-12450-00-00

—

$67.46

In stock

2

WASHER, PLATE

90201-08067-00

—

$7.62

In stock

3

GEAR, IMPELLER SHAFT

2S3-12459-00-00

1

$16.35

In stock

4

PIN, DOWEL(1HX)

93603-16219-00

1
Out of stock

5

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1

$25.40

In stock

6

OIL SEAL (12X22X5-371)

93102-12106-00

1
Out of stock

7

SEAL, MECHANICAL

4C8-12438-00-00

1
Out of stock

8

CIRCLIP(10Y)

99009-12400-00

1

$3.08

In stock

9

CIRCLIP

93440-07182-00

1

$3.14

In stock

10

WASHER, PLATE (525)

90201-12541-00

1
Out of stock

11

COVER, HOUSING

2S3-12422-00-00

1
Out of stock

12

GASKET, COVER

2S3-12414-00-00

1

$16.98

In stock

13

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

14

PIPE 3

2S3-12483-00-00

—

$60.35

In stock

15

O-RING(1KT)

93210-27778-00

1

$6.89

In stock

16

BOLT, SOCKET

91314-06016-00

—

$6.17

In stock

17

PIPE 5

2S3-12485-00-00

—

$37.00

In stock

18

O-RING (26H)

93210-14579-00

—

$5.69

In stock

19

BOLT, SOCKET

91314-06016-00

—

$6.17

In stock

20

PIPE 1

2S3-12481-00-00

—

$112.83

In stock

21

O-RING (22U)

93210-15566-00

—

$5.78

In stock

22

BOLT(3MA)

91312-06016-00

—
Out of stock

23

PIPE 2

2S3-12482-00-00

—

$111.97

In stock

24

O-RING (22U)

93210-15566-00

—

$5.78

In stock

25

BOLT(3MA)

91312-06016-00

—
Out of stock

26

HOSE 6

2S3-12589-00-00

—

$6.74

In stock

27

HOSE CLAMP ASSY

90450-28001-00

—

$12.54

In stock

28

PIPE 4

2S3-12484-00-00

—

$39.85

In stock

29

HOSE 7

2S3-12551-00-00

—

$10.46

In stock

30

HOSE CLAMP ASSY

90450-28001-00

—

$12.54

In stock

31

HOSE CLAMP ASSY

90450-32015-00

—

$15.23

In stock

32

HOSE 2

2S3-1243E-00-00

—

$28.05

In stock

33

HOSE CLAMP ASSY

90450-28001-00

—

$12.54

In stock

34

HOSE CLAMP ASSY

90450-32015-00

—

$15.23

In stock

35

HOUSING, THERMOSTAT

2S3-12417-00-00

—

$35.03

In stock

36

THERMOSTAT

5LP-12411-01-00

—

$33.04

In stock

37

O-RING (620)

93210-49046-00

—
Out of stock

38

NUT, FLANGE

95702-06500-00

—

$1.98

In stock

39

BOLT

2S3-12615-00-00

—

$14.55

In stock

40

SUPT, FILLER NECK

2S3-12591-00-00

—

$65.60

In stock

41

CAP, RADIATOR

5SL-12462-01-00

—
Out of stock

42

STAY

2S3-12443-00-00

—

$25.12

In stock

43

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

44

BOLT, BUTTON HEAD(4NK)

92014-06014-00

—
Out of stock

45

HOSE CLAMP ASSY(64X)

90450-22M14-00

—

$14.60

In stock

46

HOSE CLAMP ASSY

90450-18M09-00

1

$11.49

In stock

47

HOSE 5

2S3-12588-00-00

—

$28.91

In stock

48

HOSE 4

2S3-12579-00-00

—

$25.63

In stock
