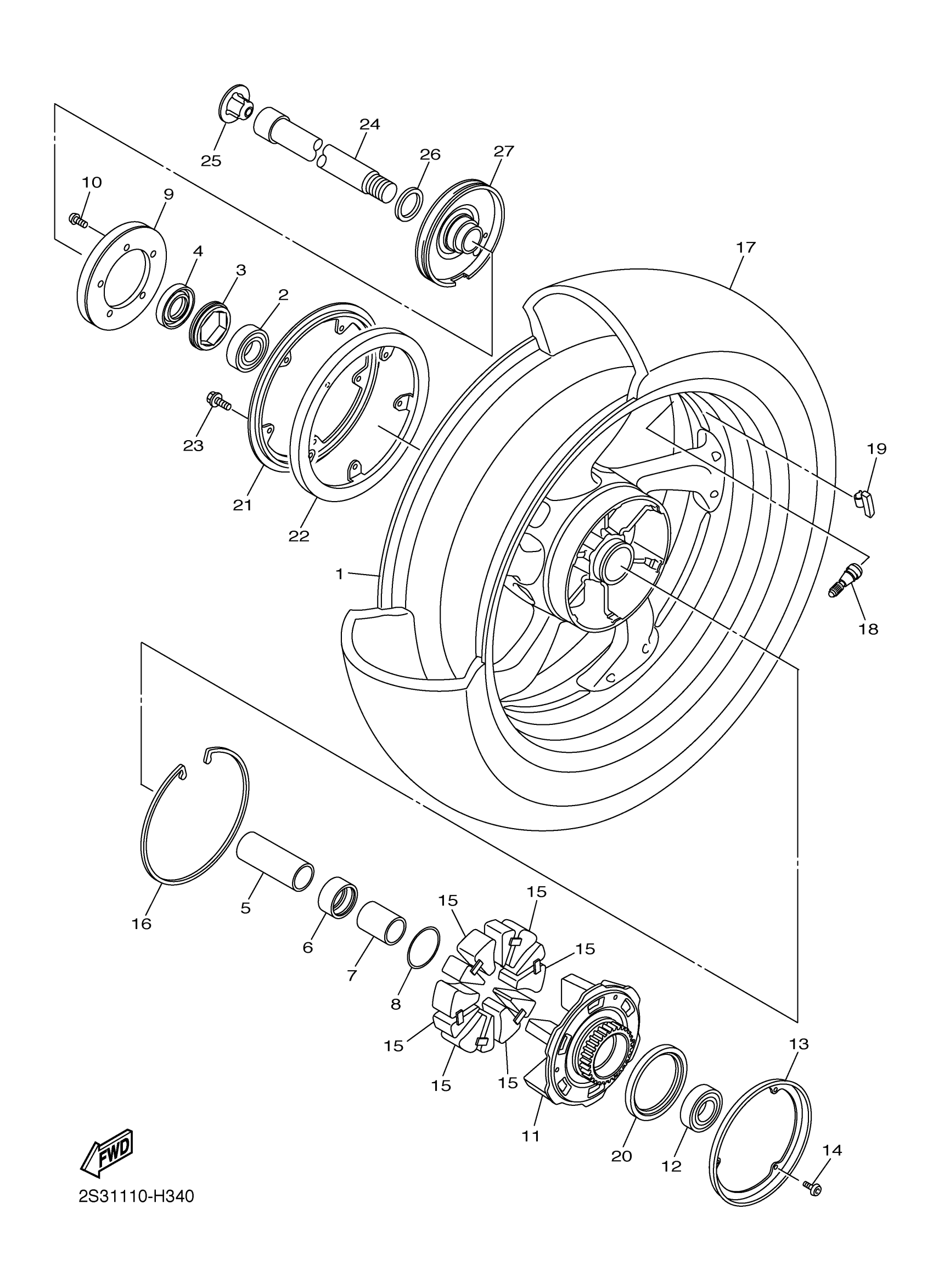

Yamaha VMX17BCB (V-MAX CA) 2S3M 2012 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

2S3-25338-00-98

Unavailable

2

BEARING

93306-07809-00

$66.99

3

NUT, ADJUSTING

3P6-2538E-00-00

Unavailable

4

OIL SEAL

93106-40013-00

$14.99

5

SPACER, BEARING

2S3-25317-00-00

Unavailable

6

BEARING

93317-43580-00

$73.99

7

COLLAR, WHEEL

2S3-25377-00-00

$67.99

8

O-RING(52H)

93210-47675-00

$6.99

9

ROTOR, SENSOR

2S3-2517G-00-00

$57.99

10

SCREW

90149-05010-00

$8.49

11

CLUTCH, HUB

2S3-25366-00-00

Unavailable

12

BEARING

93306-07808-00

Unavailable

13

COVER, PLATE

2S3-25327-00-00

Unavailable

14

BOLT, BUTTON HEAD

92014-05008-00

$4.08

15

DAMPER

2S3-25364-00-00

Unavailable

16

STOPPER, HUB

2S3-25318-00-00

Unavailable

17

TIRE(200/50 R18 M/C 76V)

94120-18008-00

Unavailable

18

VALVE, RIM(2GH)

93900-00030-00

Unavailable

19

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

19

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

19

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

20

SEAL, HUB DUST

2S3-25319-00-00

Unavailable

21

RING, WHEEL 2

2S3-2515A-00-00

Unavailable

22

RING, WHEEL 1

2S3-2514A-00-00

Unavailable

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

AXLE, WHEEL

2S3-25381-00-00

Unavailable

25

CAP

2S3-25335-00-00

Unavailable

26

WASHER, PLATE

90201-28016-00

Unavailable

27

HOUSING, SENSOR REAR

2S3-2537A-00-00

Unavailable
