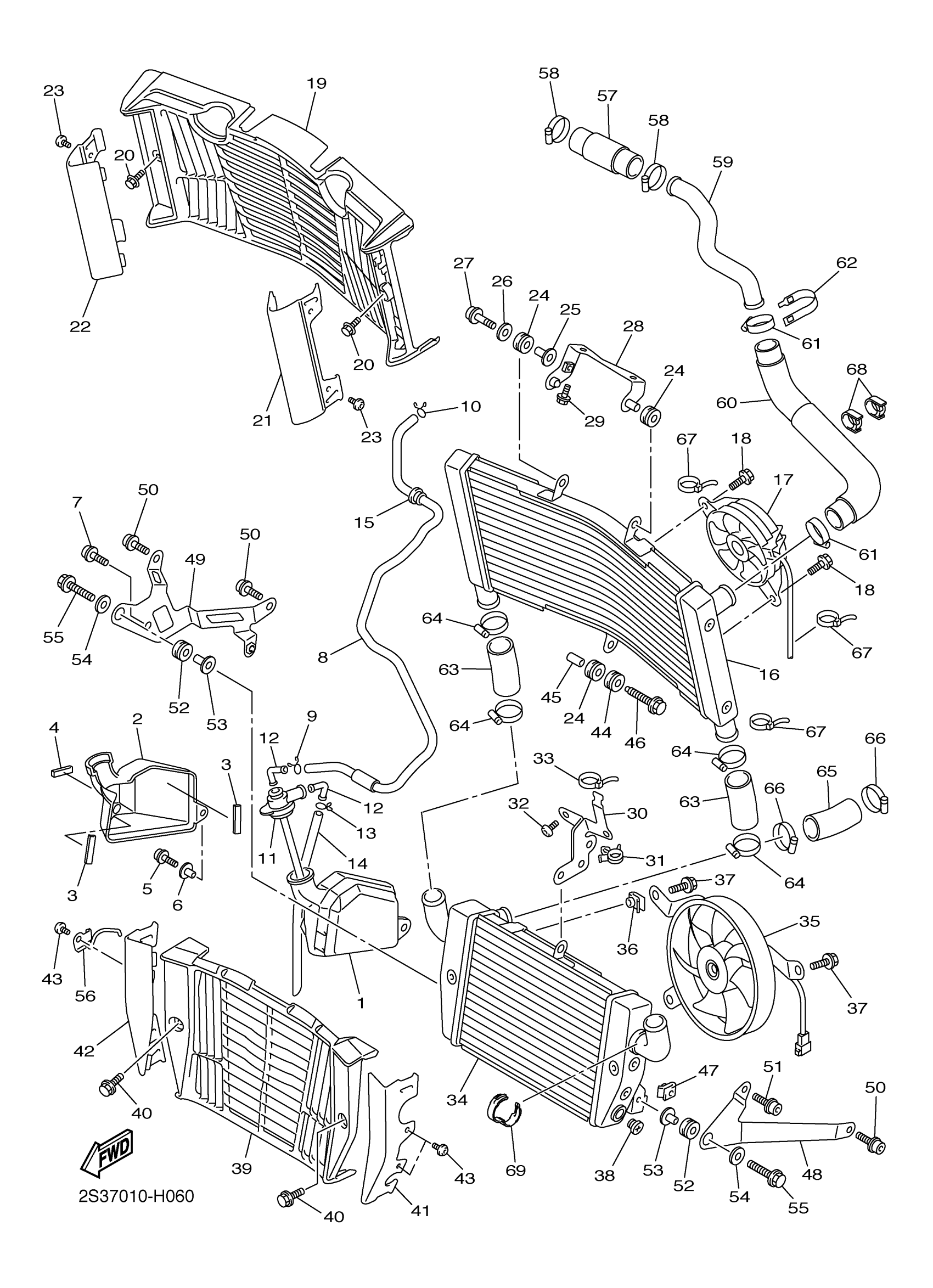

Yamaha VMX17BCB (V-MAX CA) 2S3M 2012 RADIATOR HOSE Diagram

#

Description
Price

1

TANK, RECOVERY

2S3-21871-00-00

Unavailable

2

PLATE

2S3-2176E-00-00

Unavailable

3

DAMPER

5SL-21746-00-00

$6.99

4

DAMPER

5DM-28371-00-00

$7.99

5

BOLT,SOCKET HEAD

91314-06014-00

$4.15

6

COLLAR

90387-06170-00

$8.49

7

BOLT, HEXAGON SOCKET HEAD

90110-06302-00

$3.35

8

PIPE 1

2S3-21816-00-00

Unavailable

9

CLIP

90467-090A2-00

$4.41

10

CLIP

90467-100A1-00

$7.49

11

CAP

2C0-21875-00-00

$16.49

12

ELBOW

26H-21828-00-00

$27.99

13

CLIP (16G)

90467-08021-00

$8.49

14

HOSE

90445-08035-00

Unavailable

15

GROMMET (3R4)

90480-22263-00

$4.35

16

RADIATOR ASSY

2S3-12461-09-00

Unavailable

17

BLOWER ASSY

2S3-12405-10-00

Unavailable

18

BOLT, BLOWER HOLDING

2S3-12675-00-00

Unavailable

19

COVER 5

2S3-1246H-00-00

Unavailable

20

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

21

COVER 1

2S3-1246A-00-00

Unavailable

22

COVER 2

2S3-1246E-00-00

Unavailable

23

SCREW(3XV)

90149-06298-00

Unavailable

24

GROMMET (29L)

90480-15363-00

Unavailable

25

COLLAR

90387-06039-00

Unavailable

26

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

27

BOLT

90109-06031-00

Unavailable

28

STAY 1

2S3-2116A-00-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD

90110-06302-00

$3.35

30

STAY, RADIATOR

2S3-12464-00-00

Unavailable

31

CLAMP(4TR)

90464-18246-00

Unavailable

32

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

33

CLAMP

90464-16061-00

Unavailable

34

RADIATOR ASSY

2S3-12461-19-00

Unavailable

35

BLOWER ASSY

2S3-12405-01-00

Unavailable

36

NUT 1

5SL-12671-00-00

Unavailable

37

BOLT, BLOWER HOLDING

5GJ-12675-00-00

Unavailable

38

COCK, DRAIN

5VU-12478-00-00

Unavailable

39

COVER 6

2S3-1246J-00-00

Unavailable

40

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

41

COVER 3

2S3-1246F-00-00

Unavailable

42

COVER 4

2S3-1246G-00-00

Unavailable

43

SCREW(3XV)

90149-06298-00

Unavailable

44

GROMMET (29L)

90480-15363-00

Unavailable

45

COLLAR

90387-06086-00

Unavailable

46

BOLT, WITH WASHER

90119-06247-00

Unavailable

47

NUT 1

5SL-12671-00-00

Unavailable

48

STAY, SIDE COVER 1

2S3-2172E-00-00

Unavailable

49

STAY, SIDE COVER 2

2S3-2174E-00-00

Unavailable

50

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

Unavailable

51

BOLT, HEXAGON SOCKET HEAD

90110-06331-00

Unavailable

52

GROMMET (29L)

90480-15363-00

Unavailable

53

COLLAR

90387-06039-00

Unavailable

54

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

55

BOLT

90109-06031-00

Unavailable

56

GUIDE

2S3-2171H-00-00

Unavailable

57

HOSE 8

2S3-12552-00-00

Unavailable

58

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

59

PIPE 6

2S3-12476-00-00

Unavailable

60

HOSE 1

2S3-12576-00-00

Unavailable

61

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

62

COVER 2

5GV-1246E-00-00

Unavailable

63

HOSE 2

2S3-12577-00-00

Unavailable

64

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

65

HOSE 3

2S3-12578-00-00

Unavailable

66

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

67

CLAMP

90464-16061-00

Unavailable

68

CLAMP

90464-12013-00

Unavailable

69

CLAMP

90464-28003-00

Unavailable
