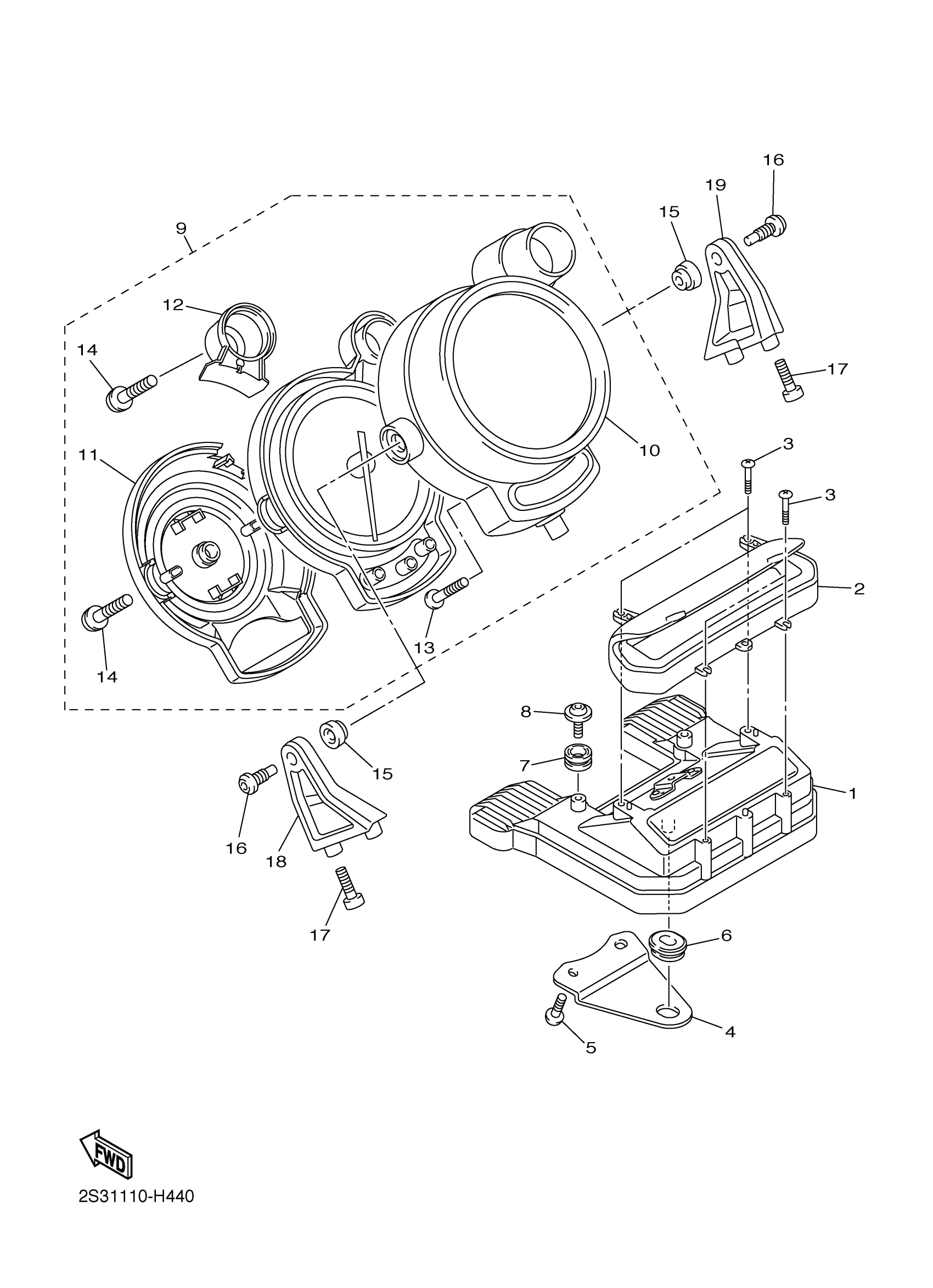

Yamaha VMX17BCB (V-MAX CA) 2S3M 2012 METER Diagram

#

Description
Price

1

METER COMP.

2S3-8350A-00-00

$993.99

2

COVER, METER 2

2S3-83579-00-00

Unavailable

3

SCREW, TAPPING

97707-30014-00

Unavailable

4

BRACKET, METER 1

2S3-8355X-00-00

Unavailable

5

BOLT, BUTTON HEAD

92012-06012-00

$4.35

6

GROMMET(4DN)

90480-01558-00

$4.19

7

GROMMET

90480-14017-00

$4.72

8

BOLT,HEX. SOCKET BUTTON

90111-06122-00

$5.60

9

SPEEDOMETER ASSY

2S3-83580-01-00

Unavailable

10

CASE, METER UPPER

2S3-8353E-00-00

$463.99

11

COVER, TACHOMETER

2S3-83508-00-00

$225.99

12

COVER

2S3-8369W-00-00

Unavailable

13

SCREW, TAPPING

4AS-83616-10-00

Unavailable

14

SCREW, TAPPING

2S3-83616-00-00

Unavailable

15

GROMMET

90480-11014-00

$5.60

16

BOLT,HEX. SOCKET BUTTON

90111-08068-00

Unavailable

17

BOLT (33M)

91312-06014-00

Unavailable

18

STAY, PLATE

2S3-23486-00-00

Unavailable

19

STAY, PLATE

2S3-23487-00-00

Unavailable
