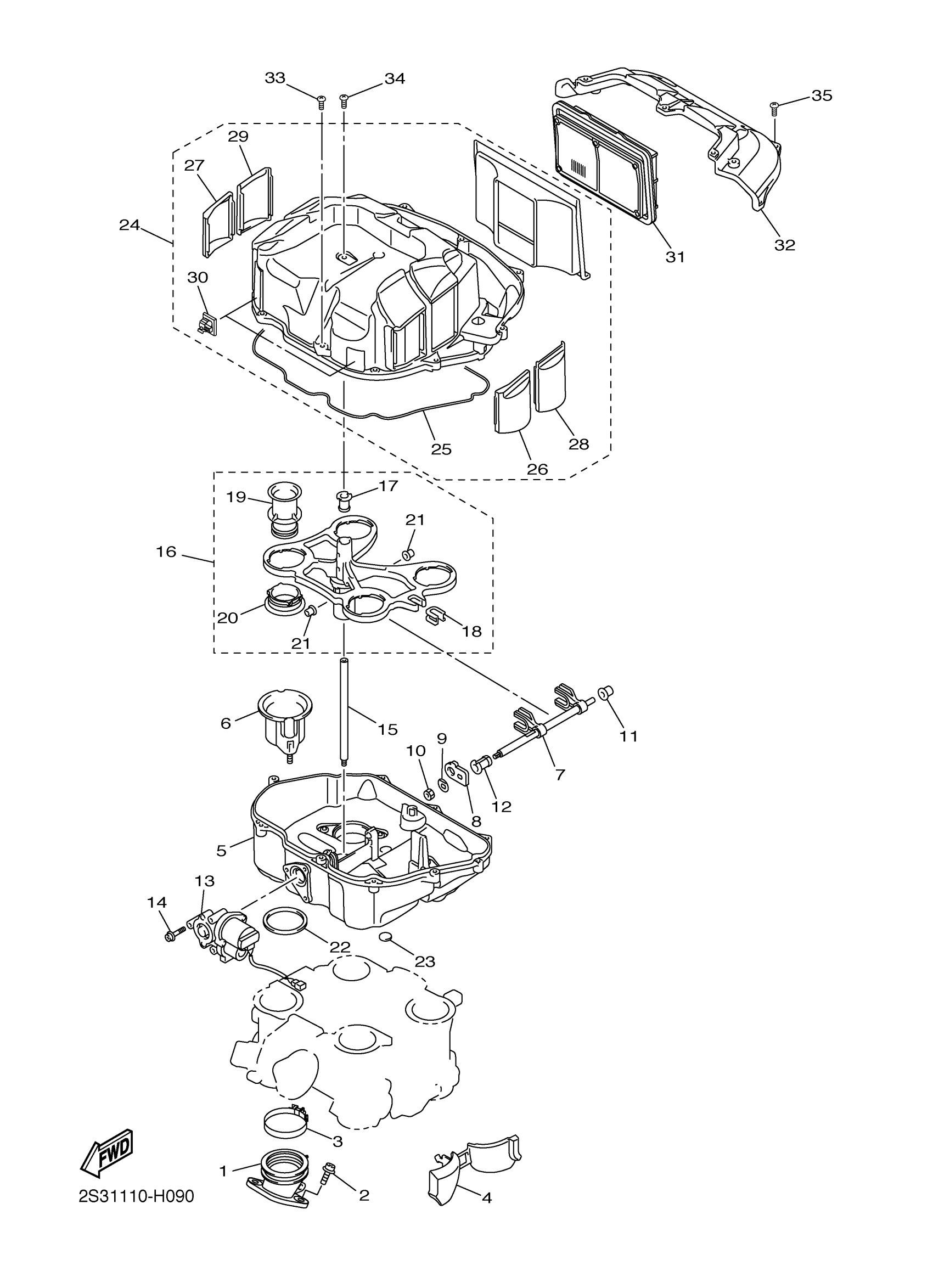

Yamaha VMX17BCB (V-MAX CA) 2S3M 2012 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

2S3-13586-00-00

Unavailable

2

BOLT,SOCKET HEAD

91314-06020-00

$1.49

3

CLAMP, HOSE 1

2S3-11387-00-00

$19.99

4

COVER, MANIFOLD

2S3-13564-00-00

Unavailable

5

CASE, AIR CLEANER 1

2S3-14411-00-00

$140.99

6

JOINT ASSY

2S3-1440B-00-00

$14.49

7

LEVER 1

2S3-1445B-00-00

Unavailable

8

PIN, FLOAT ARM

2S3-14548-00-00

Unavailable

9

WASHER

2S3-14475-00-00

Unavailable

10

NUT(650)

95380-06700-00

$8.49

11

BUSH, SOLID

90381-06002-00

Unavailable

12

BUSH, 3

2S3-1449B-00-00

Unavailable

13

GEARED MOTOR COMP. 2

2S3-85870-00-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD

90110-05045-00

Unavailable

15

SEPERATOR, OIL

2S3-14434-00-00

Unavailable

16

HOLDER, GUIDE

2S3-14459-00-00

Unavailable

17

BUSH 1

2S3-1447B-00-00

Unavailable

18

GUIDE

2S3-14473-00-00

Unavailable

19

FUNNEL

2S3-14479-00-00

Unavailable

20

SEAL, RUBBER 1

2S3-13631-00-00

Unavailable

21

BUSH, SOLID

90381-08001-00

Unavailable

22

GASKET, AIR CLEANER

2S3-14416-00-00

Unavailable

23

PROTECTOR

2S3-1442F-00-00

Unavailable

24

AIR FILTER CASE COMP.

2S3-14408-00-00

Unavailable

25

SEAL

2S3-14452-00-00

Unavailable

26

COVER, CLEANER CASE 1

2S3-1441A-00-00

Unavailable

27

COVER, CLEANER CASE 2

2S3-1441E-00-00

Unavailable

28

COVER, CLEANER CASE 3

2S3-1442A-00-00

Unavailable

29

COVER, CLEANER CASE 4

2S3-1442E-00-00

Unavailable

30

CLAMP

90464-14002-00

Unavailable

31

ELEMENT, AIR CLEANER

2S3-14451-01-00

Unavailable

32

DUCT

2S3-14437-01-00

Unavailable

33

SCREW, BIND

98902-05020-00

Unavailable

34

SCREW, BINDING

90154-05037-00

Unavailable

35

SCREW, BIND

98902-05014-00

Unavailable
