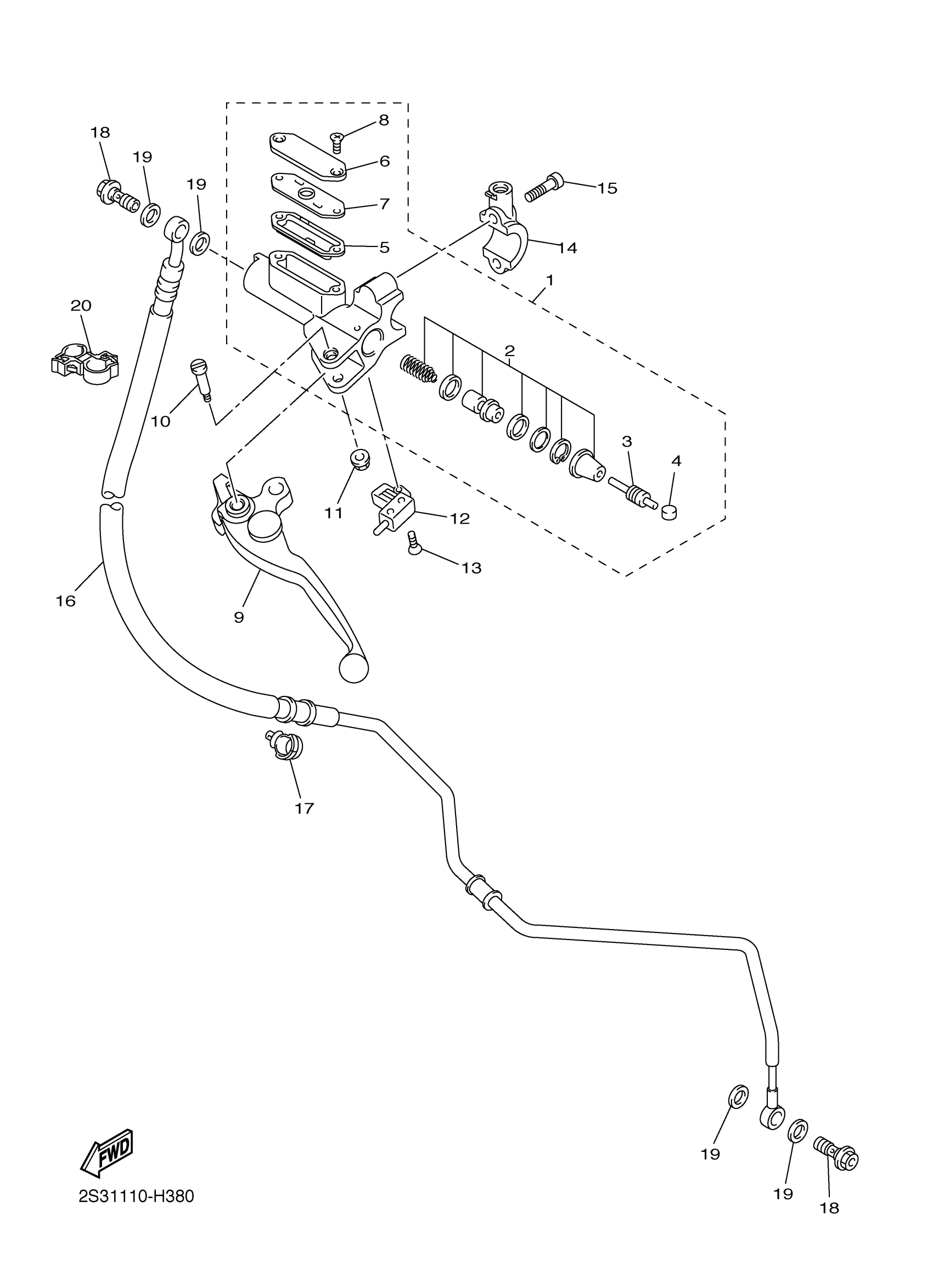

Yamaha VMX17BCB (V-MAX CA) 2S3M 2012 FRONT MASTER CYLINDER 2 Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

2S3-W2645-00-00

Unavailable

2

CYLINDER KIT, MASTER (CLUTCH)

5JW-W0099-00-00

$50.99

3

ROD, PUSH

3GM-26464-00-00

$18.49

4

BUSH

3GM-26455-00-00

$24.99

5

DIAPHRAGM, RESERVOIR

5YU-25854-50-00

Unavailable

6

CAP, RESERVOIR

5YU-25852-50-00

$33.99

7

BUSH,DIAPHRAGM

5YU-25855-50-00

$10.99

8

SCREW, FLAT

98707-04012-00

$2.18

9

LEVER 1

5YU-83912-11-00

$103.99

10

BOLT, LEVER

3FV-2589F-00-00

$16.49

11

NUT, FLANGE(4MV)

95707-06500-00

$1.23

12

SWITCH

3GM-83980-00-00

$49.99

13

SCREW, FLAT

98707-04016-00

$8.49

14

HOLDER

2S3-26393-00-00

$39.99

15

BOLT

5VS-26332-00-00

$4.42

16

HOSE, CLUTCH

2S3-26470-00-00

Unavailable

17

CLAMP

90464-18002-00

Unavailable

18

BOLT, UNION

90401-10172-00

Unavailable

19

GASKET

90430-10005-00

Unavailable

20

CLAMP

90464-16015-00

Unavailable
