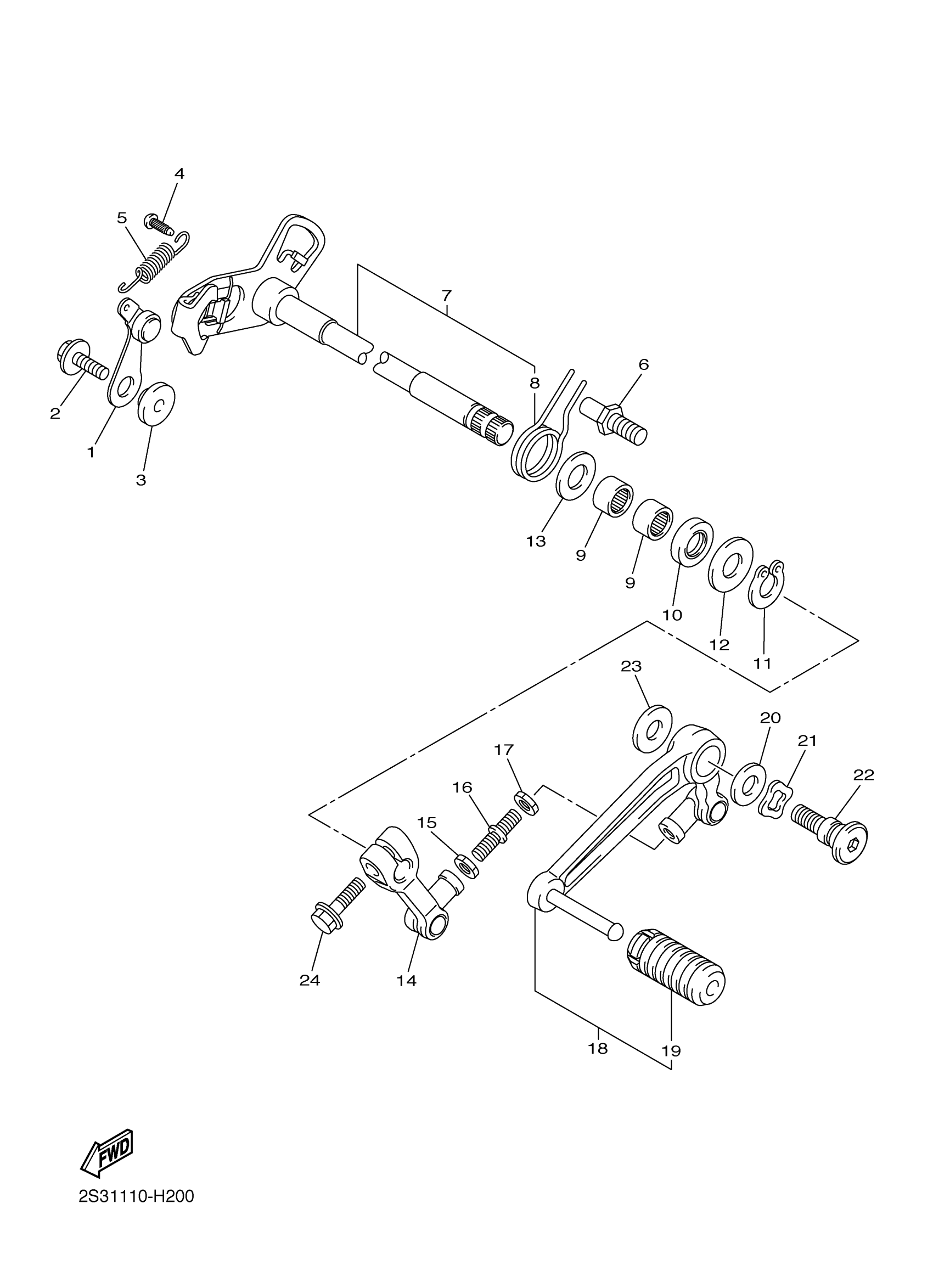

Yamaha VMX17AG (V-MAX) 2S3E 2011 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER LEVER ASSY

2S3-18140-00-00

Unavailable

2

SCREW, WITH WASHER

90159-06028-00

$7.49

3

SPACER

4NX-18175-00-00

Unavailable

4

HOOK, SPRING

132-16346-00-00

$9.99

5

SPRING, TENSION

90506-15002-00

Unavailable

6

STOPPER, SCREW

5VK-18127-00-00

Unavailable

7

SHIFT SHAFT ASSY

2S3-18101-00-00

Unavailable

8

SPRING, TORSION

90508-32141-00

Unavailable

9

BEARING

93317-11295-00

$46.99

10

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

11

CIRCLIP

99002-10600-00

$8.49

12

WASHER, PLATE (353)

90201-12575-00

$8.49

13

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

14

ARM, SHIFT

2S3-18112-00-00

Unavailable

15

NUT(650)

95380-06700-00

$8.49

16

ROD, SHIFT

2S3-18115-00-00

Unavailable

17

NUT (2H9)

90170-06228-00

Unavailable

18

SHIFT PEDAL ASSY

2S3-18110-00-00

Unavailable

19

COVER, SHIFT PEDAL

2S3-18113-00-00

Unavailable

20

WASHER, PLATE

90201-12013-00

Unavailable

21

WASHER, WAVE (17W)

90206-12074-00

Unavailable

22

BOLT

2S3-27217-10-00

Unavailable

23

WASHER, PLATE (24Y)

90201-080H1-00

Unavailable

24

BOLT, FLANGE

95022-06020-00

Unavailable
