Description

Price

1

HEADLIGHT ASSY

2S3-84300-00-00

Unavailable

2

SOCKET, PILOT LIGHT

5JW-84346-00-00

Unavailable

3

BULB

4SV-84347-00-00

$8.99

4

COVER, SOCKET

5JW-84397-00-00

Unavailable

5

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

6

PLATE, GUIDE

2S3-8413G-00-00

$2.65

7

CLAMP

90464-66001-00

Unavailable

8

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

$5.99

9

DAMPER

4XV-83513-00-00

$7.99

10

COVER, UPPER 1

2S3-23121-00-00

Unavailable

11

COVER, UPPER 2

2S3-23131-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06106-00

$5.60

13

WASHER, PLATE

90201-06049-00

Unavailable

14

SCREW(4DN)

90149-06302-00

Unavailable

15

STAY, HEADLIGHT

2S3-23174-00-00

Unavailable

16

GROMMET

90480-13026-00

Unavailable

17

COLLAR

90387-06234-00

Unavailable

18

NUT

90179-06061-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-06107-00

Unavailable

20

WASHER, PLATE

90201-06049-00

Unavailable

21

COVER, CROWN

2S3-23437-00-00

Unavailable

22

GROMMET

90480-13026-00

Unavailable

23

DAMPER

4XV-83513-00-00

$7.99

24

COLLAR

90387-06233-00

Unavailable

25

COVER, DUST SEAL 1

2S3-23383-00-00

Unavailable

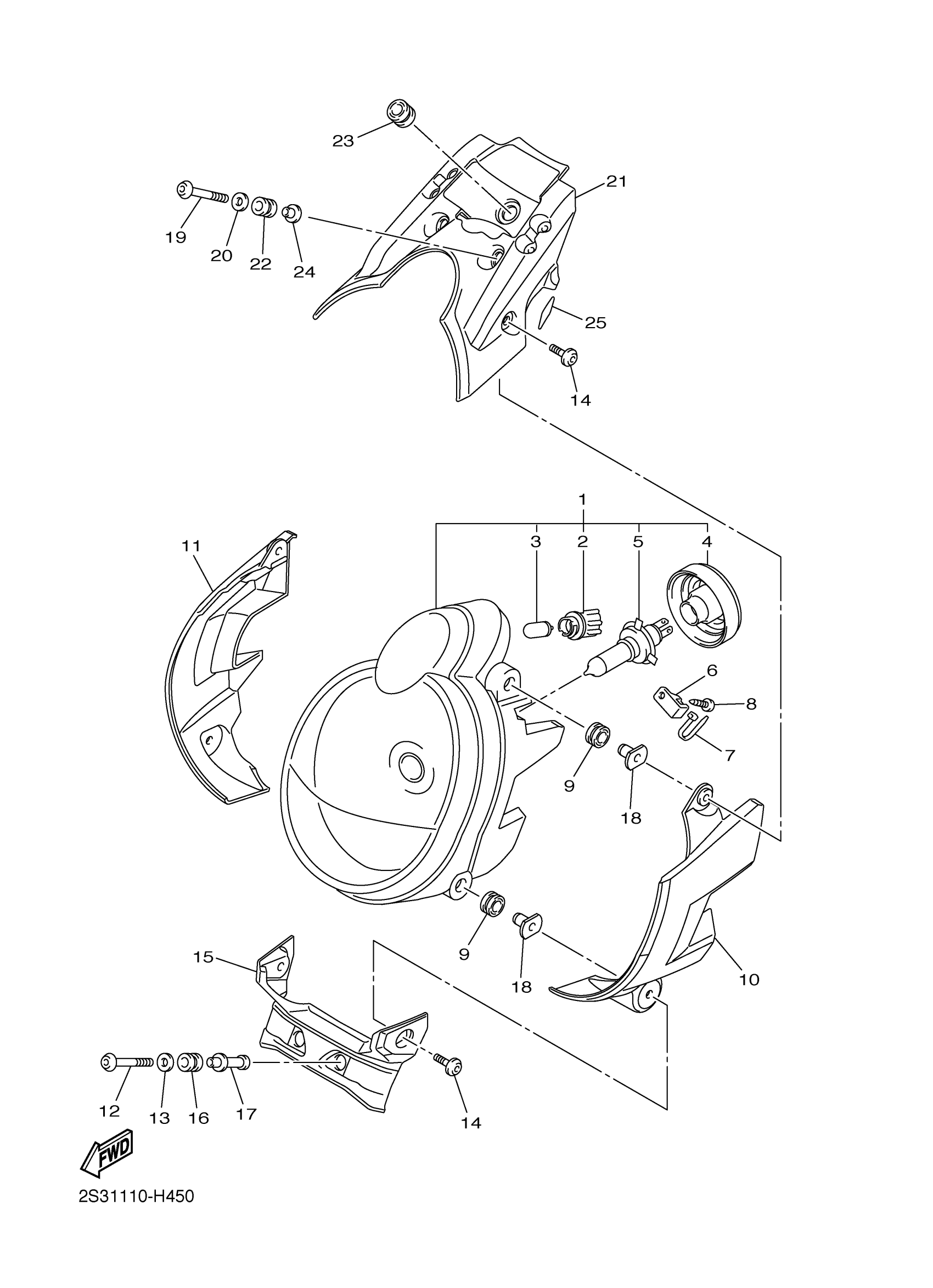

Yamaha VMX17AG (V-MAX) 2S3E 2011 HEADLIGHT Diagram

HEADLIGHT ASSY

SOCKET, PILOT LIGHT

BULB

COVER, SOCKET

BULB, HEADLIGHT

PLATE, GUIDE

CLAMP

SCREW, PAN HEAD TAPPING (AK5)

DAMPER

COVER, UPPER 1

COVER, UPPER 2

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE

SCREW(4DN)

STAY, HEADLIGHT

GROMMET

COLLAR

NUT

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE

COVER, CROWN

GROMMET

DAMPER

COLLAR

COVER, DUST SEAL 1
