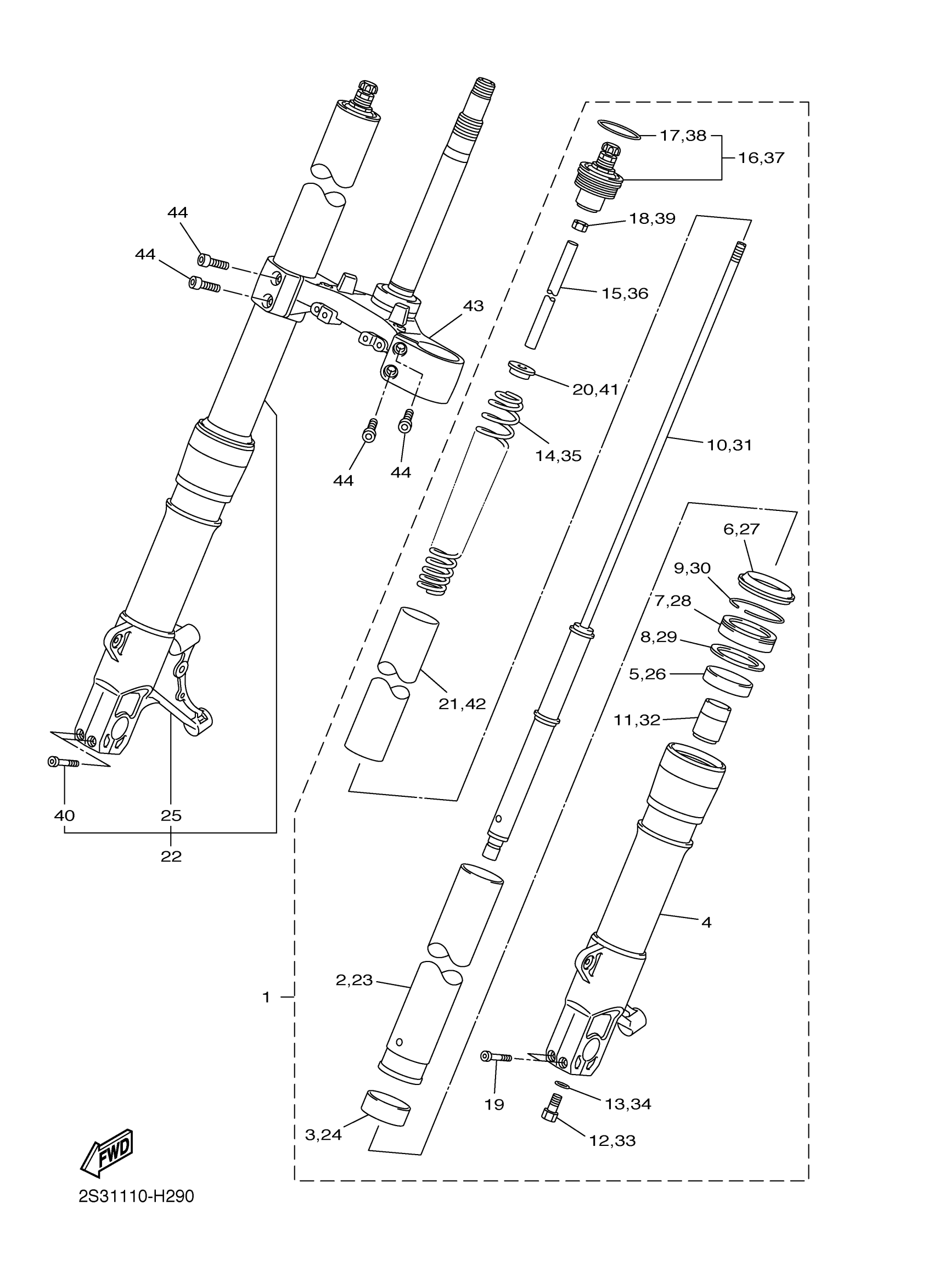

Yamaha VMX17AG (V-MAX) 2S3E 2011 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2S3-23102-00-00

Unavailable

2

INNER TUBE COMP.1

2S3-23110-01-00

$466.99

3

METAL, SLIDE 2

2S3-23135-00-00

$34.99

4

OUTER TUBE COMP. (L.H)

2S3-23106-00-00

Unavailable

5

METAL, SLIDE 1

2S3-23125-00-00

$50.99

6

SEAL, DUST

2S3-23144-00-00

$18.49

7

OIL SEAL

2S3-23145-00-00

$16.49

8

SEAT 1

2S3-23115-00-00

$16.49

9

RING, SNAP

2S3-23156-00-00

$7.99

10

. CYLINDER COMP, FRONT FORK

2S3-23170-00-00

Unavailable

11

SPINDLE, TAPER

2S3-23173-00-00

$40.99

12

. BOLT, SPECIAL

2S3-23394-00-00

Unavailable

13

GASKET (5R6)

90430-10171-00

$3.18

14

SPRING, FRONT FORK

2S3-23141-00-00

Unavailable

15

SPACER

2S3-23118-00-00

Unavailable

16

BOLT, CAP

2S3-23111-00-00

Unavailable

17

O-RING

CS4-43862-40-00

Unavailable

18

NUT(3BM)

95314-10600-00

Unavailable

19

BOLT,SOCKET

91314-08045-00

Unavailable

20

SEAT, SPRING UPPER

5YU-23142-00-00

Unavailable

21

REINF. COMP.

2S3-23104-00-00

Unavailable

22

FRONT FORK ASSY (R.H)

2S3-23103-00-00

Unavailable

23

INNER TUBE COMP.1

2S3-23110-01-00

$466.99

24

METAL, SLIDE 2

2S3-23135-00-00

$34.99

25

OUTER TUBE COMP. (R.H)

2S3-23107-00-00

Unavailable

26

METAL, SLIDE 1

2S3-23125-00-00

$50.99

27

SEAL, DUST

2S3-23144-00-00

$18.49

28

OIL SEAL

2S3-23145-00-00

$16.49

29

SEAT 1

2S3-23115-00-00

$16.49

30

RING, SNAP

2S3-23156-00-00

$7.99

31

. CYLINDER COMP, FRONT FORK

2S3-23170-00-00

Unavailable

32

SPINDLE, TAPER

2S3-23173-00-00

$40.99

33

. BOLT, SPECIAL

2S3-23394-00-00

Unavailable

34

GASKET (5R6)

90430-10171-00

$3.18

35

SPRING, FRONT FORK

2S3-23141-00-00

Unavailable

36

SPACER

2S3-23118-00-00

Unavailable

37

BOLT, CAP

2S3-23111-00-00

Unavailable

38

O-RING

CS4-43862-40-00

Unavailable

39

NUT(3BM)

95314-10600-00

Unavailable

40

BOLT,SOCKET

91314-08045-00

Unavailable

41

SEAT, SPRING UPPER

5YU-23142-00-00

Unavailable

42

REINF. COMP.

2S3-23104-00-00

Unavailable

43

UNDER BRACKET COMP.

2CE-23340-00-00

Unavailable

44

BOLT,SOCKET

91314-08025-00

Unavailable
