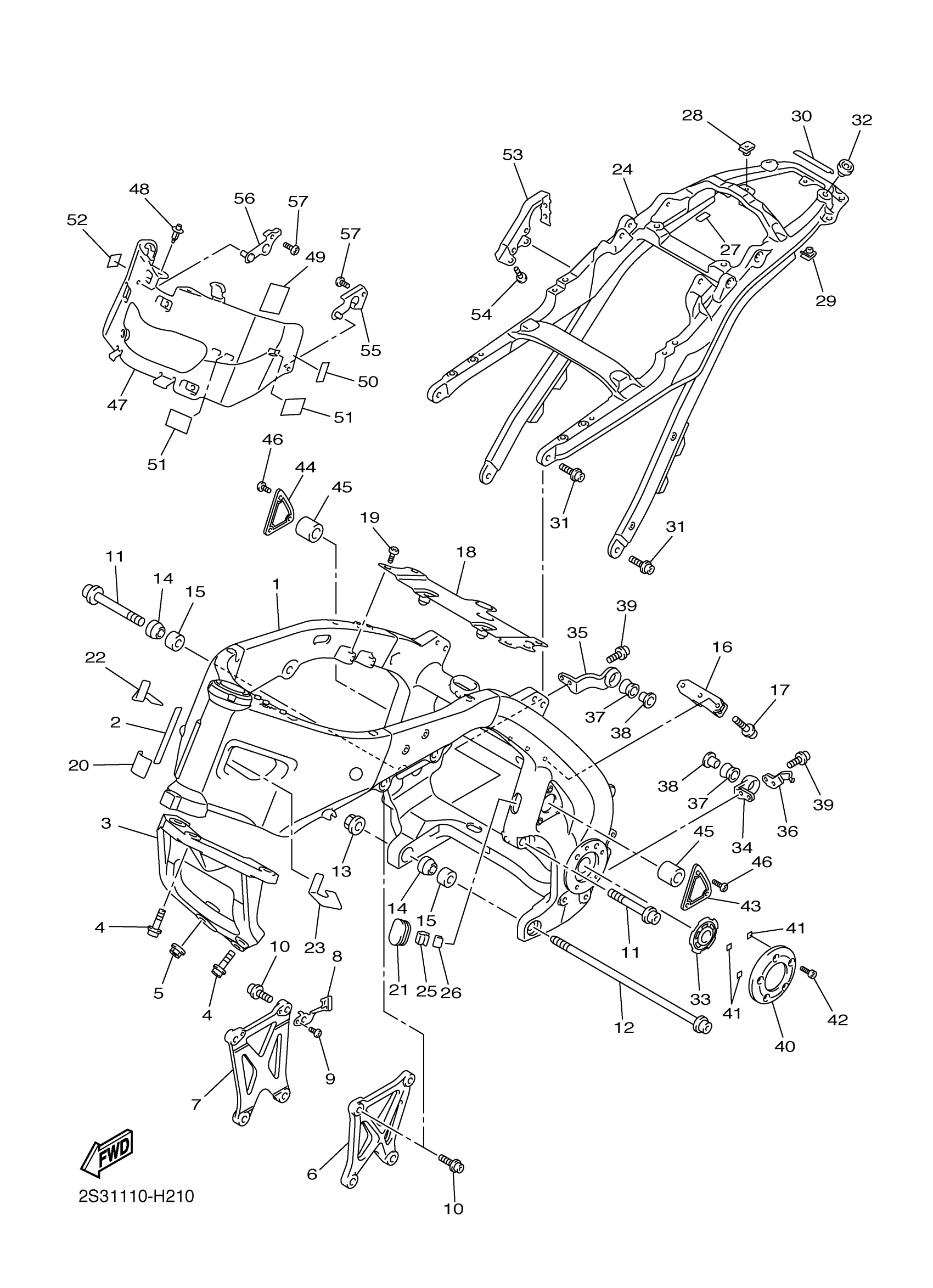

Yamaha VMX17AG (V-MAX) 2S3E 2011 FRAME Diagram
#
1
FRAME COMP.
2S3-21110-00-00
Unavailable
2
PROTECTOR, FUEL TANK
3HA-24141-00-00
Unavailable
4
BOLT, HEXAGON SOCKET HEAD
90110-12005-00
Unavailable
5
NUT, SELF-LOCKING(3JF)
95604-12200-00
Unavailable
6
STAY, ENGINE 3
2S3-21316-00-00
Unavailable
7
STAY, ENGINE 3
2S3-21317-00-00
Unavailable
8
STAY, COUPLER
2S3-21396-00-00
Unavailable
9
BOLT, BUTTON HEAD
92014-06010-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD
90110-10019-00
Unavailable
11
BOLT, HEXAGON SOCKET HEAD
90110-12003-00
Unavailable
12
BOLT, HEXAGON SOCKET HEAD
90110-12004-00
Unavailable
13
NUT, SELF-LOCKING(3JF)
95604-12200-00
Unavailable
14
BOSS, ENGINE MOUNT
2S3-21414-00-00
Unavailable
16
BRKT., RR. CUSHION 1
2S3-2213E-00-00
Unavailable
17
BOLT
90111-10006-00
Unavailable
18
BRACKET
2S3-21131-00-00
Unavailable
19
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
20
SEAL
2S3-21268-00-00
Unavailable
21
COVER
2S3-2172W-00-00
Unavailable
22
SHEET 1
2S3-21266-00-00
Unavailable
23
SHEET 2
2S3-21267-00-00
Unavailable
24
REAR FRAME COMP.
2S3-21190-00-00
Unavailable
25
CLIP
90468-070A0-00
Unavailable
26
SEAL 1
2S3-2111D-00-00
Unavailable
27
SEAL 1
3SP-21732-00-00
Unavailable
28
NUT, SPRING
90183-050A6-00
Unavailable
29
NUT, SPRING(4ES)
90183-06069-00
Unavailable
30
PROTECTOR, FUEL TANK
3HA-24141-00-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-10012-00
Unavailable
32
PAD, SEAT
22W-24741-00-00
Unavailable
33
COVER 3
2S3-2117N-00-00
Unavailable
34
STAY, MUFFLER 1
2S3-21445-00-00
Unavailable
35
STAY, MUFFLER 2
2S3-21446-00-00
Unavailable
36
GUIDE, WIRE
2S3-27267-00-00
Unavailable
37
DAMPER, MUFFLER
5VY-14747-00-00
Unavailable
38
COLLAR
90387-08021-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD
90110-06331-00
Unavailable
40
COVER
2S3-2117F-00-00
Unavailable
41
DAMPER 2
2TV-21639-00-00
Unavailable
42
BOLT,SOCKET HEAD
91314-06012-00
Unavailable
43
EMBLEM 1
2S3-2118E-00-00
Unavailable
44
EMBLEM 2
2S3-2118F-00-00
Unavailable
45
DAMPER
2S3-2113B-00-00
Unavailable
46
SCREW
90149-06146-00
Unavailable
47
PANEL, 1
2S3-2121A-00-00
Unavailable
48
RIVET
90269-07008-00
Unavailable
49
DAMPER
5JW-2139X-00-00
Unavailable
50
DAMPER
2D1-21649-00-00
Unavailable
51
DAMPER
2AL-84553-00-00
Unavailable
52
SEAL
1UF-15379-00-00
Unavailable
53
STAY 4
2S3-2164J-00-00
Unavailable
54
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
55
BRKT 2
2S3-2612K-00-00
Unavailable
56
BRACKET 3
2S3-2612L-00-00
Unavailable
57
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
