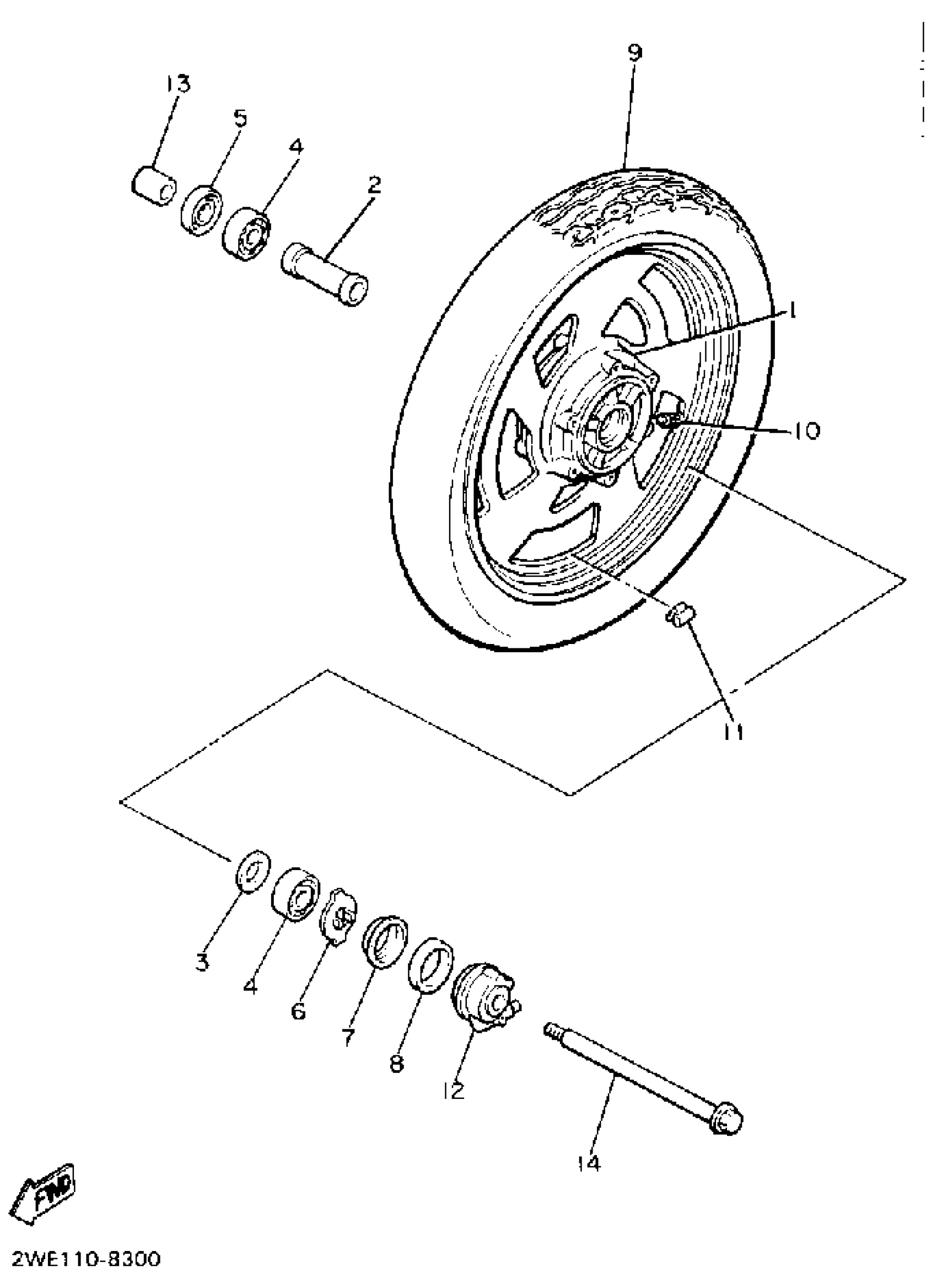

Yamaha VMX12WC (V-MAX 1200 CA) 3JP2 1989 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

2HY-25168-00-JK

Unavailable

2

SPACER

90560-17322-00

$17.99

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BEARING(4HM)

93306-30317-00

$39.99

5

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

6

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

8

OIL SEAL (45X56X6)

93105-45017-00

$14.99

9

TIRE(3JP)

94111-1805F-00

Unavailable

10

VALVE, RIM (2JE)

93900-00025-00

$19.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

GEAR UNIT ASSY

1FK-25190-02-00

$98.99

13

COLLAR(1UR)

90387-173R6-00

$30.99

14

AXLE, WHEEL

1FK-25181-09-00

Unavailable
