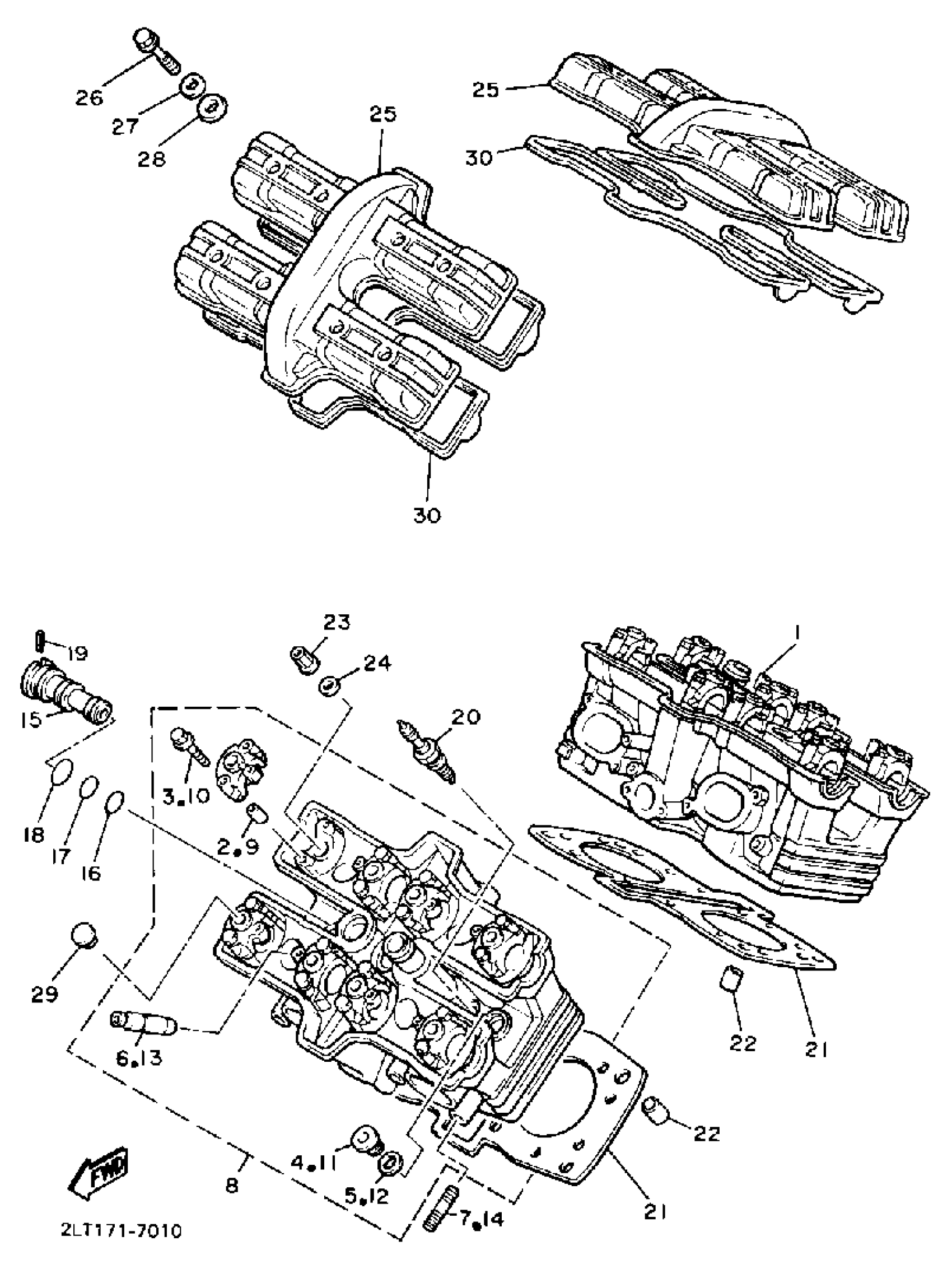

Yamaha VMX12WC (V-MAX 1200 CA) 3JP2 1989 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1FK-11101-01-00

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

4

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

5

. WASHER, PLATE

90201-195F4-00

Unavailable

6

. SEAT, VALVE SPRING

1LN-12116-00-00

Unavailable

6

GUIDE KIT, INTAKE (55V)

99999-02242-00

$47.99

6

GUIDE KIT, INTAKE (55V)

99999-02242-00

$47.99

7

BOLT,STUD (3JJ)

95917-08625-00

Unavailable

8

CYLINDER HEAD ASSY 2

1FK-W1112-01-00

Unavailable

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

11

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

12

. WASHER, PLATE

90201-195F4-00

Unavailable

13

. SEAT, VALVE SPRING

1LN-12116-00-00

Unavailable

13

GUIDE KIT, INTAKE (55V)

99999-02242-00

$47.99

13

GUIDE KIT, INTAKE (55V)

99999-02242-00

$47.99

14

BOLT, STUD(3GG)

95917-08640-00

Unavailable

15

JOINT 1

26H-12469-01-00

Unavailable

16

O-RING (26H)

93210-16629-00

Unavailable

17

O-RING (1L9)

93210-18322-00

Unavailable

18

O-RING (26H)

93210-21631-00

Unavailable

19

PIN, SPRING

91690-30025-00

Unavailable

20

DPR8EA-9 NGK 10PK

DPR-8EA90-00-00

Unavailable

21

GASKET, CYLINDER HEAD 1

26H-11181-02-00

Unavailable

22

PIN, DOWEL

99530-12016-00

Unavailable

23

NUT (26H)

90179-10414-00

Unavailable

24

WASHER, PLATE (26H)

90201-102G9-00

Unavailable

25

COVER, CYLINDER HEAD 1

2HY-11191-00-00

Unavailable

26

BOLT, WITH WASHER(2JE)

90119-06218-00

Unavailable

27

WASHER(46X)

90209-11262-00

Unavailable

28

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable

29

PLUG (31M)

90338-10150-00

Unavailable

30

GASKET, HEAD COVER 1

26H-11193-01-00

Unavailable
