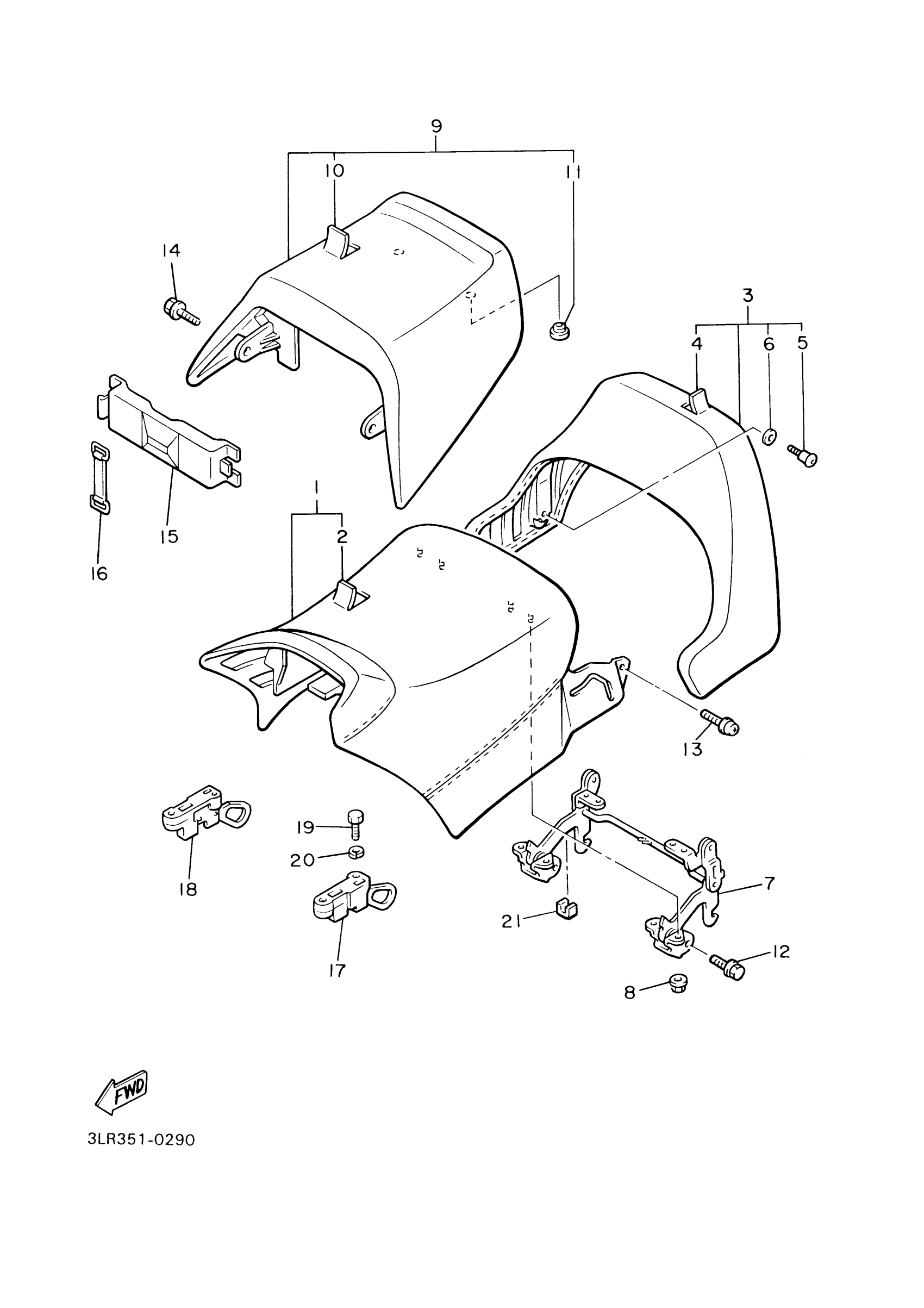

Yamaha VMX12W1C (V-MAX CA) 4C44 2007 SEAT Diagram
#
Description
Price
1
SEAT COMP.
5GK-24771-00-00
Unavailable
2
. SEAT COVER COMP
5GK-2470F-00-00
Unavailable
3
SEAT BACK ASSY
5GK-24790-00-00
Unavailable
4
. SEAT COVER COMP
5GK-2470F-10-00
Unavailable
7
HINGE ASS'Y
1FK-24772-00-00
Unavailable
9
TANDEM SEAT ASSY
5GK-24750-00-00
Unavailable
10
SEAT COVER COMP.
5GK-2470F-20-00
Unavailable
15
LID 1
1FK-2473T-00-00
Unavailable
16
BAND, TOOL
5H9-21376-00-00
Unavailable
17
SEAT LEVER ASSY
1FK-24760-00-00
Unavailable
18
SEAT LOCK ASSY
1FK-24780-00-00
Unavailable
19
BOLT, HEXAGON
97017-06012-00
Unavailable
20
WASHER(6TA)
92907-06600-00
Unavailable
21
DAMPER, SEAT
3UF-24737-00-00
Unavailable
