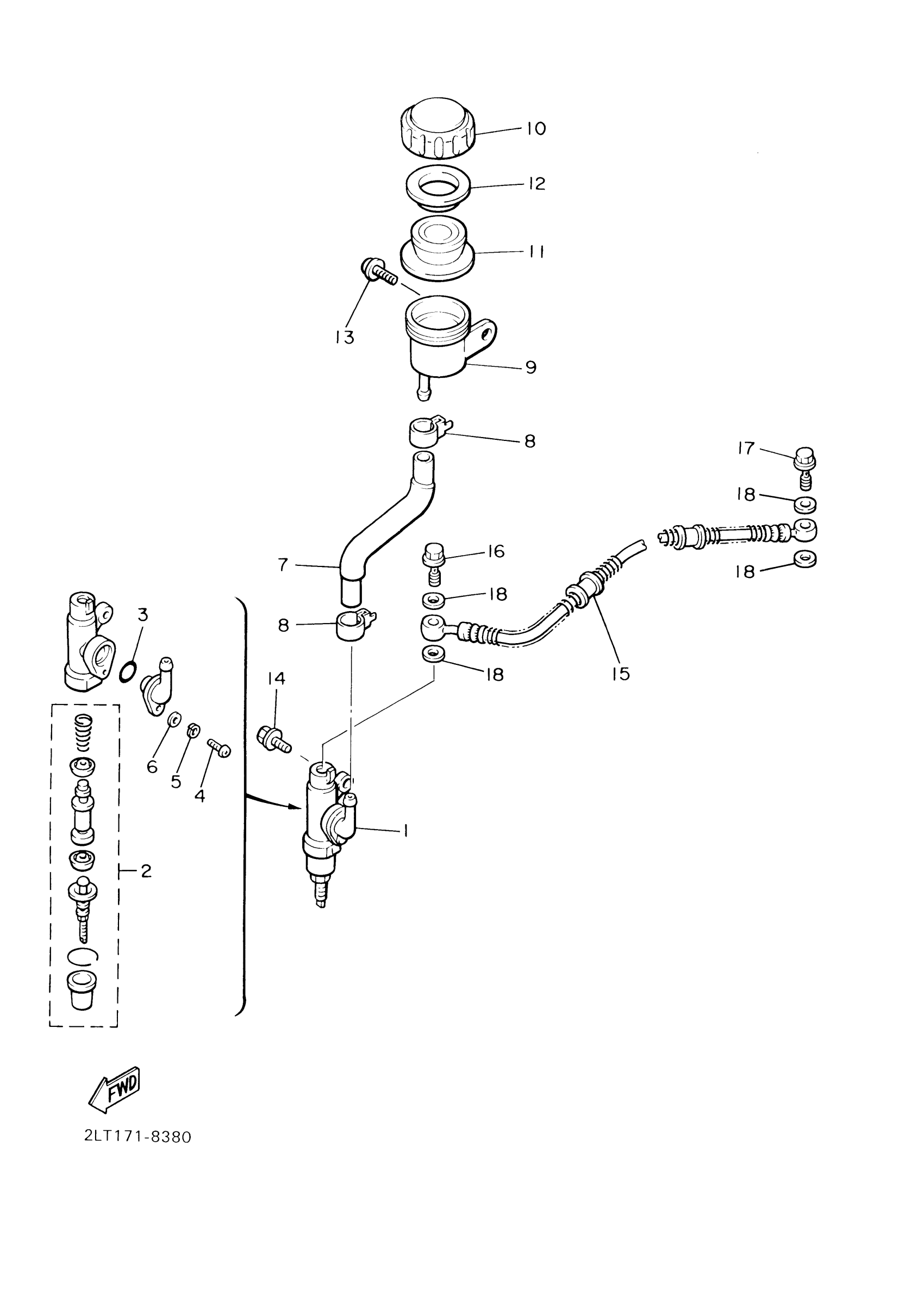

Yamaha VMX12W1C (V-MAX CA) 4C44 2007 REAR MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

1FK-25850-50-00

Unavailable

2

CYLINDER KIT, MASTER

1FK-W0042-50-00

$70.99

3

O-RING (22U)

93210-15566-00

$7.49

4

SCREW, PAN HEAD

98511-04012-00

Unavailable

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

WASHER, PLAIN (646)

92990-04600-00

$5.99

7

HOSE, RESERVOIR

1FK-25895-00-00

Unavailable

8

CLIP (5K4)

90467-14057-00

$8.49

9

TANK, RESERVOIR

31A-25894-01-00

$19.49

10

CAP, RESERVOIR

2KF-25852-50-00

$47.99

11

DIAPHRAGM, RESERVER

360-25854-01-00

$23.99

12

BUSH,DIAPHRAGM

2GU-25855-00-00

$30.99

13

SCREW, WITH WASHER (5U8)

90159-06056-00

$8.49

14

BOLT, WASHER BASED(3JP)

90105-081A1-00

$9.49

15

HOSE, BRAKE

1FK-25874-03-00

Unavailable

16

BOLT, UNION

90401-10020-00

Unavailable

17

BOLT, UNION

90401-10020-00

Unavailable

18

GASKET

90430-10005-00

Unavailable
