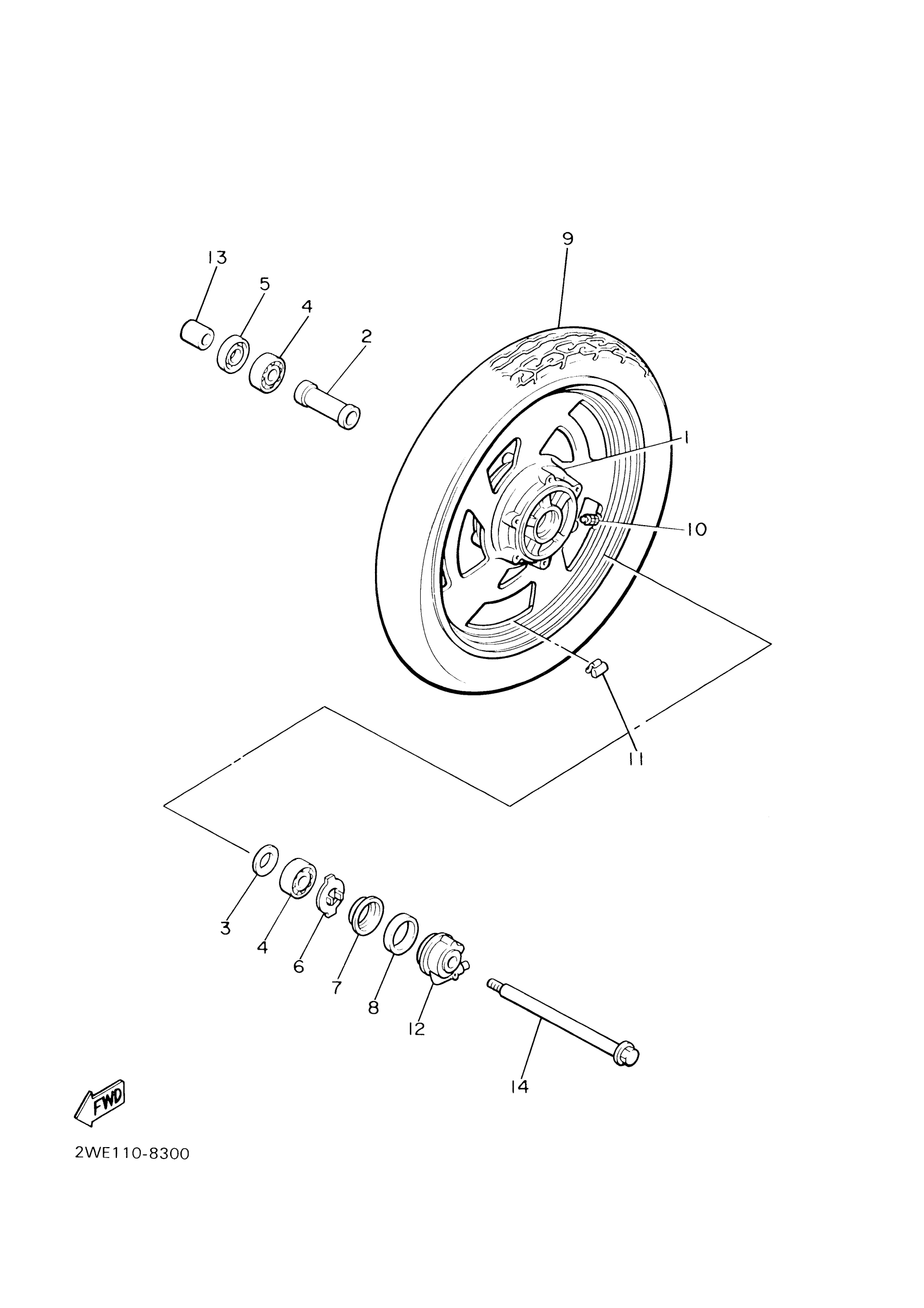

Yamaha VMX12W1C (V-MAX CA) 4C44 2007 FRONT WHEEL Diagram

CAST WHEEL, FRONT

5GK-25168-00-33

Unavailable

SPACER

90560-17322-00

$17.99

FLANGE, SPACER

146-25315-00-00

$7.99

BEARING(4HM)

93306-30317-00

$39.99

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

OIL SEAL (45X56X6)

93105-45017-00

$14.99

TIRE (110/90-18 M/C 61V F20)

94111-1805D-00

Unavailable

TIRE(3JP)

94111-1805F-00

Unavailable

VALVE, RIM (2JE)

93900-00025-00

$19.99

BALANCER, WHEEL

5MT-25398-00-00

$17.49

BALANCER, WHEEL

5MT-25398-10-00

$17.49

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

GEAR UNIT ASSY

1FK-25190-02-00

$98.99

COLLAR(1UR)

90387-173R6-00

Unavailable

AXLE, WHEEL

1FK-25181-09-00

Unavailable
