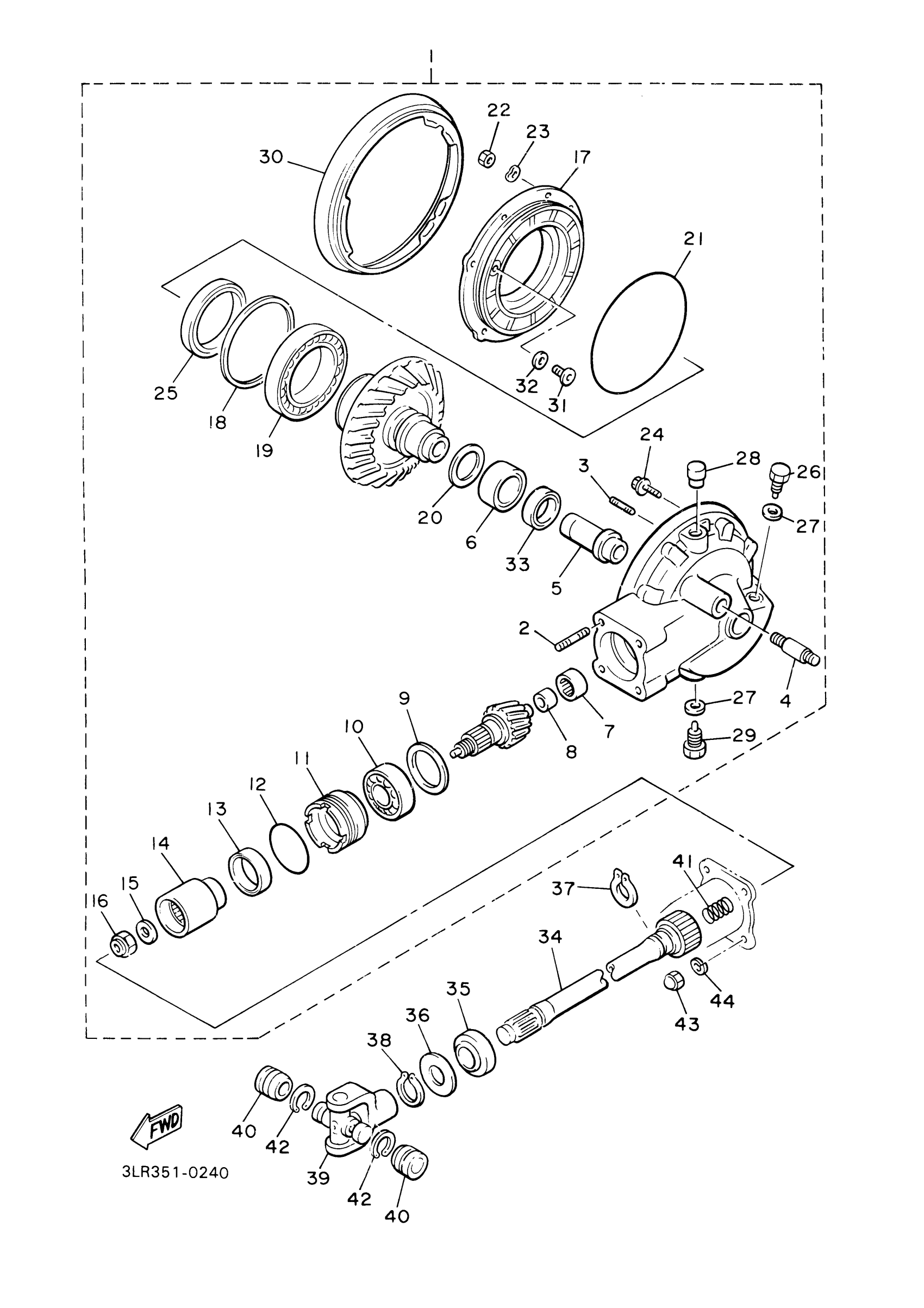

Yamaha VMX12VC (V-MAX CA) 5GKX 2006 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

1FK-46101-10-00

Unavailable

2

BOLT, STUD (5E5)

90116-10361-00

Unavailable

3

BOLT, STUD(2GG)

95617-08620-00

$7.49

4

BOLT, STUD (4H7)

90116-10249-00

Unavailable

5

. COLLAR, GUIDE

4YE-46153-00-00

Unavailable

6

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

Unavailable

7

BEARING ASSY

2H7-46102-00-00

$58.99

8

RACE, INNER

2H7-46122-00-00

$28.99

9

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

9

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

9

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

10

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

11

RETAINER, BEARING

4H7-46125-00-00

$62.99

12

O-RING (4H7)

93210-60426-00

$10.49

13

OIL SEAL (4H7)

93101-38098-00

$17.99

14

COUPLING, GEAR

4H7-46123-01-00

Unavailable

15

WASHER, PLATE(3JP)

90201-166R5-00

Unavailable

16

NUT(3JP)

90179-16661-00

Unavailable

17

. HOUSING, BEARING

1FK-46152-01-00

Unavailable

18

SHIM, RING GEAR (0.25T)

1J7-46117-Y0-25

Unavailable

18

SHIM, RING GEAR (0.30T)

1J7-46117-Y0-30

Unavailable

18

SHIM, RING GEAR (0.40T)

1J7-46117-Y0-40

Unavailable

18

SHIM, RING GEAR (0.50T)

1J7-46117-Y0-50

Unavailable

19

BRG,R-B 16014C2 110MM 433G KY

93316-01403-00

Unavailable

20

WASHER, THRUST

22U-46118-00-12

Unavailable

20

WASHER, THRUST

22U-46118-00-14

Unavailable

20

WASHER, THRUST

22U-46118-00-16

Unavailable

20

WASHER, THRUST

22U-46118-00-18

Unavailable

20

WASHER, THRUST

22U-46118-00-20

Unavailable

21

O-RING(59V)

93211-54698-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

WASHER(6TA)

92907-08700-00

Unavailable

24

BOLT, FLANGE(8AB)

95817-10050-00

Unavailable

25

OIL SEAL (4H7)

93102-70167-00

Unavailable

26

PLUG

3JL-13455-00-00

Unavailable

27

GASKET

214-11198-01-00

Unavailable

28

BREATHER COMP.

2H7-17590-00-00

Unavailable

29

PLUG

3JL-13455-00-00

Unavailable

30

COVER, HOUSING

1FK-46154-00-00

Unavailable

31

STOPPER, RING GEAR

1FK-46156-00-00

Unavailable

32

SHIM, STOPPER

1FK-46157-00-15

Unavailable

32

. SHIM, STOPPER (T=020)

1FK-46157-00-20

Unavailable

33

OIL SEAL (30X42X7-1J7)

93101-30084-00

Unavailable

34

SHAFT, DRIVE

1FK-46172-00-00

Unavailable

35

OIL SEAL(1FK)

93108-43013-00

Unavailable

36

WASHER, PLATE (4H7)

90201-231A2-00

Unavailable

37

CIRCLIP (4H7)

93410-23056-00

Unavailable

38

CIRCLIP (537)

93410-22039-00

Unavailable

39

CROSS JOINT COMP.

4X7-46180-00-00

Unavailable

40

BEARING(2HR)

93399-99926-00

Unavailable

41

SPRING, COMPRESSION (2H7)

90501-16491-00

Unavailable

42

CIRCLIP (4X7)

93440-20088-00

Unavailable

43

NUT, CROWN(2GG)

90176-10075-00

Unavailable

44

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
