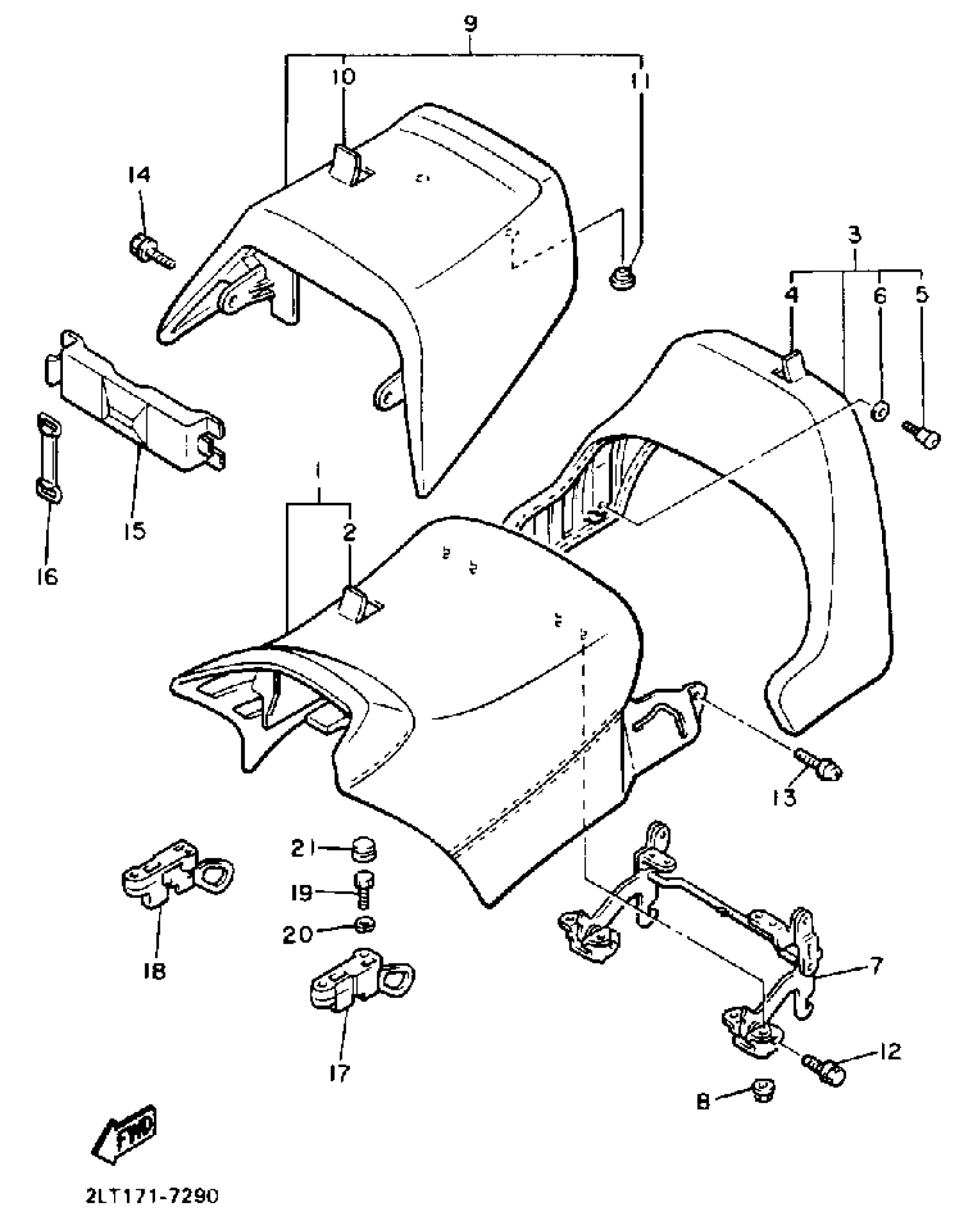

Yamaha VMX12UC (V-MAX 1200 CA) 2WF 1988 SEAT Diagram
#
Description
Price
1
SEMI-DOUBLE SEAT ASSEMBLY
2HY-24771-00-00
Unavailable
2
. COVER, SINGLE SEAT
2HY-24711-00-00
Unavailable
3
SEAT BACK ASSY
1FK-24790-00-00
Unavailable
4
. COVER, SEAT BACK
1FK-24791-00-00
Unavailable
7
HINGE ASS'Y
1FK-24772-00-00
Unavailable
9
TANDEM SEAT ASSEMBLY
2HY-24750-00-00
Unavailable
10
. COVER, TANDEM SEAT
2HY-24751-00-00
Unavailable
15
LID 1
1FK-2473T-00-00
Unavailable
16
BAND, TOOL
5H9-21376-00-00
Unavailable
17
SEAT LEVER ASSY
1FK-24760-00-00
Unavailable
18
SEAT LOCK ASSY
1FK-24780-00-00
Unavailable
19
BOLT (661)
97013-06012-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
CAP
5K0-28349-50-00
Unavailable
