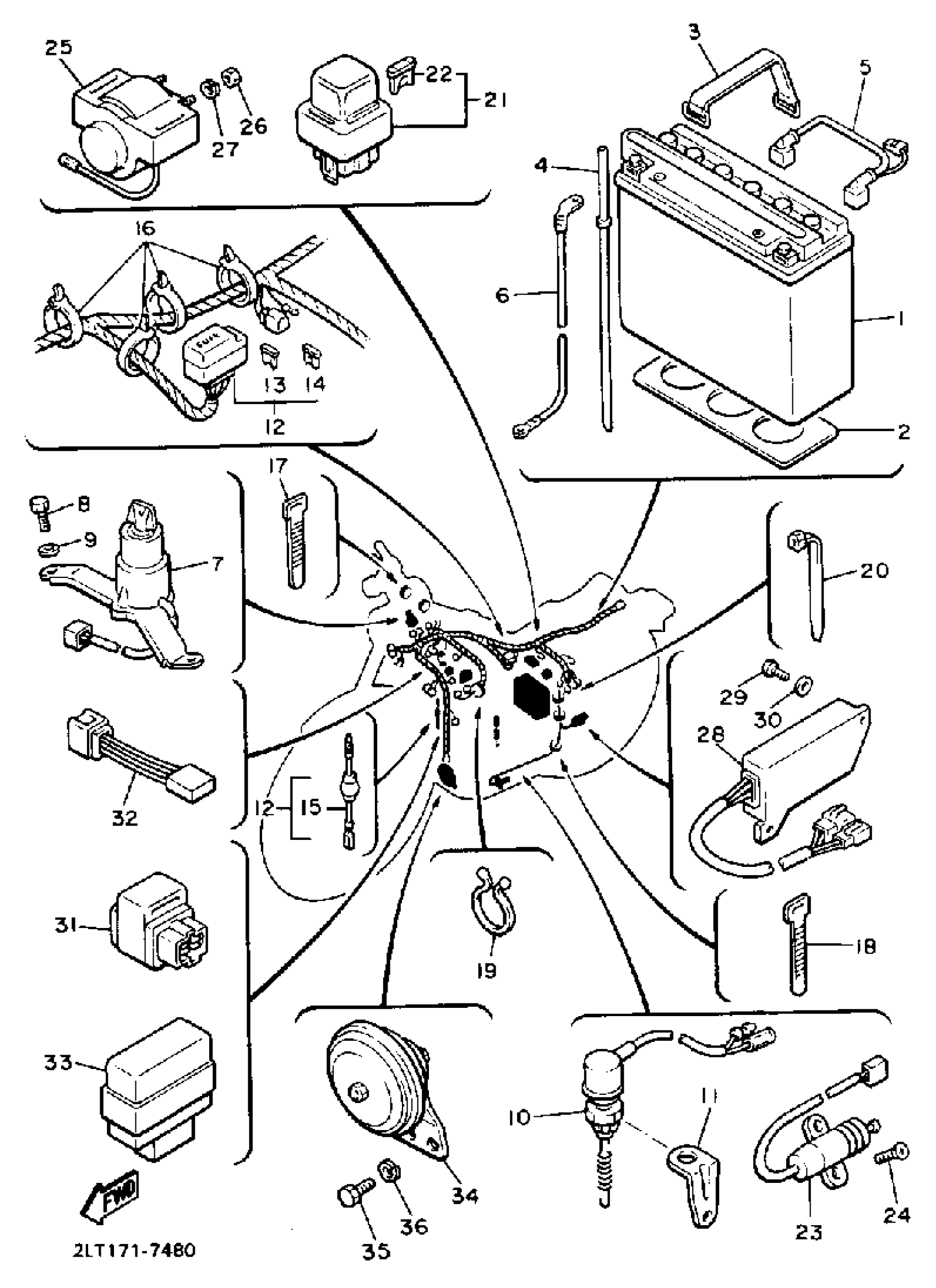

Yamaha VMX12UC (V-MAX 1200 CA) 2WF 1988 ELECTRICAL 2 Diagram

#

Description
Price

1

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

2

SEAT, BATTERY

1FK-82122-00-00

Unavailable

3

BAND, BATTERY

1E6-82131-00-00

$27.99

4

PIPE, BREATHER

1FK-82112-00-00

Unavailable

5

WIRE, PLUS LEAD

1UT-82115-00-00

Unavailable

6

WIRE, MINUS LEAD

1FK-82116-00-00

$32.99

7

MAIN SWITCH ASSY

1FK-82510-01-00

Unavailable

8

BOLT, HEXAGON

97017-06012-00

$3.76

9

WASHER(6TA)

92907-06600-00

$2.72

10

STOP SWITCH ASSY

1FK-82530-02-00

Unavailable

11

STAY, STOP SWITCH

1FK-82539-00-00

Unavailable

12

WIRE HARNESS ASSEMBLYASSY

1UT-82590-01-00

Unavailable

13

FUSE (10A)

42X-82151-00-00

$4.32

14

FUSE (12V 15A)

36Y-82151-00-00

$4.94

15

RECTIFIER 2

3H5-81980-00-00

$19.49

16

BAND

1UA-82591-00-00

Unavailable

17

BAND, SWITCH CORD

437-83936-01-00

Unavailable

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable

19

CLAMP (3Y2)

90464-16039-00

Unavailable

20

CLAMP(4FM)

90464-15195-00

Unavailable

21

FUSE HOLDER ASSY

1AE-82150-00-00

Unavailable

22

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

23

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

24

SCREW, FLAT

98707-05016-00

Unavailable

25

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

26

NUT(650)

95380-06700-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

RECTIFIER & REGULATOR ASSY

42X-81960-A1-00

Unavailable

29

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

Unavailable

31

RELAY ASSY

4U8-81950-03-00

Unavailable

32

RECTIFIER 2

4U8-81980-M0-00

Unavailable

33

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

34

HORN

1FK-83371-02-00

Unavailable

35

BOLT, HEXAGON

97017-06016-00

Unavailable

36

WASHER, SPRING

92907-06100-00

Unavailable
