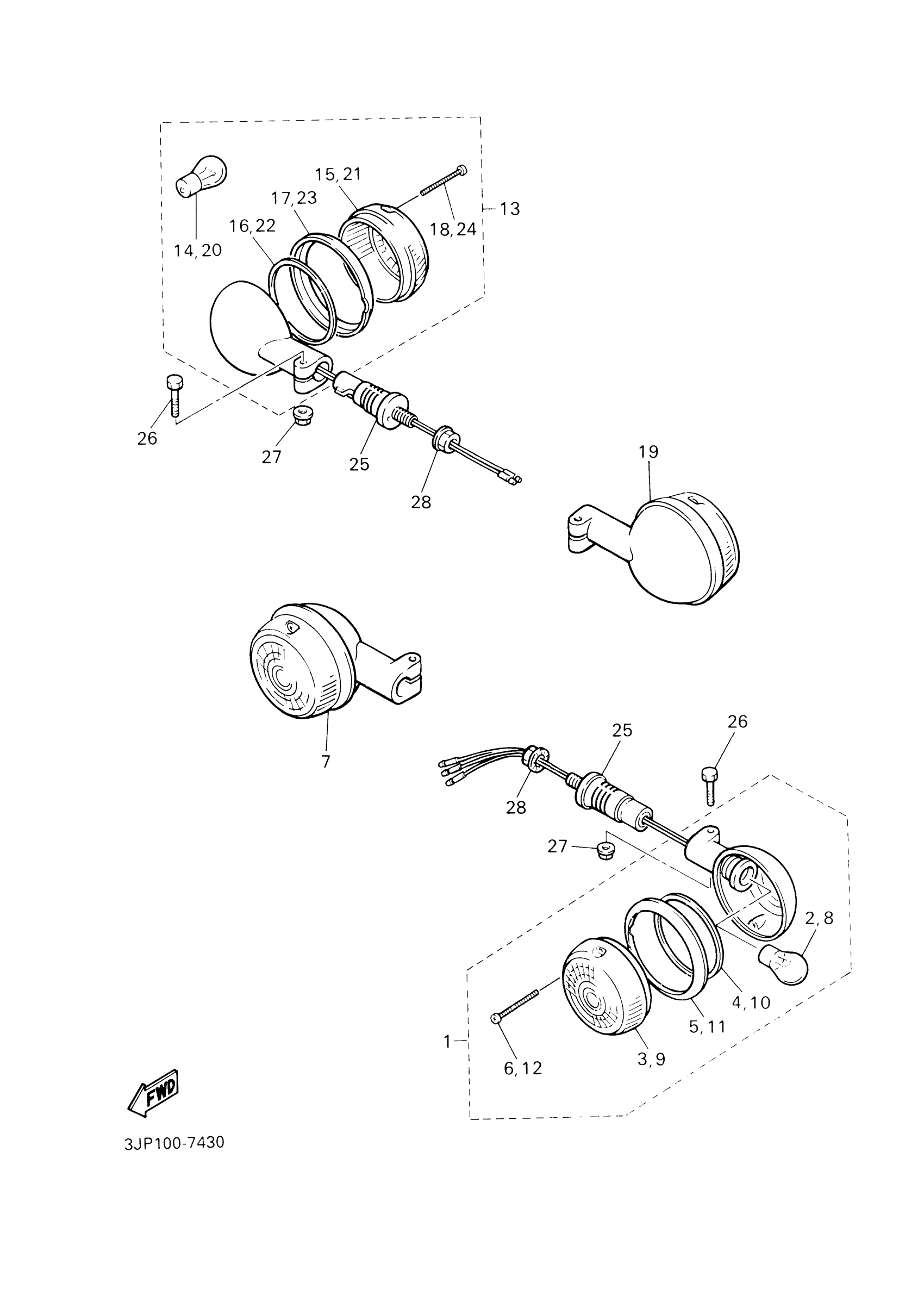

Yamaha VMX12TC (V-MAX CA) 5GKS 2005 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5GK-83310-00-00

Unavailable

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

3

LENS, FLASHER

5VN-83312-10-00

$16.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

5GK-83320-00-00

Unavailable

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

9

LENS, FLASHER

5VN-83312-20-00

$16.49

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

LENS, RIM

1D6-83363-10-00

$28.99

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

REAR FLASHER LIGHT ASSY 1

1D6-83330-01-00

$109.99

14

BULB, FLASHER (12V-21W)

5VN-83331-00-00

$14.49

15

LENS, FLASHER

1D6-83312-20-00

Unavailable

16

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

17

LENS, RIM

1D6-83363-10-00

$28.99

18

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

19

REAR FLASHER LIGHT ASSY 2

1D6-83340-01-00

Unavailable

20

BULB, FLASHER (12V-21W)

5VN-83331-00-00

$14.49

21

LENS, FLASHER

1D6-83312-10-00

Unavailable

22

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

23

LENS, RIM

1D6-83363-00-00

$28.99

24

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

25

STAY, FLASHER 1

1AA-83318-00-00

Unavailable

26

BOLT, HEXAGON

97017-06030-00

Unavailable

27

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

28

NUT(3GG)

90179-12588-00

Unavailable
