Description

Price

1

MASTER CYLINDER SUB ASSY(CLUTC

2KW-W2645-00-00

$283.99

2

CYLINDER KIT, MASTER (CLUTCH)

2KW-W0099-00-00

Unavailable

3

PUSH ROD

26H-26464-00-00

$27.99

4

BUSH

3GM-26455-00-00

$24.99

5

DIAPHRAGM, RESERVOIR

1AE-26454-00-00

$28.99

6

CAP, RESERVOIR

1FK-26452-01-00

$42.99

7

SCREW, FLAT

98707-04012-00

$2.18

8

LEVER 1

1FK-83912-01-00

$38.99

9

BOLT, LEVER

1FK-2589F-00-00

$5.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

BRAKET,MASTER

1AE-26467-01-00

Unavailable

12

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$10.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

15

HOSE, CLUTCH

1FK-26470-01-00

Unavailable

16

BAND

1UA-82591-00-00

Unavailable

17

BOLT, UNION(3GM)

90401-10159-00

Unavailable

18

WASHER, PLATE(481)

90201-10118-00

Unavailable

19

HOLDER

1FK-26475-00-00

Unavailable

20

SCREW, PAN

98517-06012-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

REAR VIEW MIRROR ASSY (LEFT)

1AA-26280-10-00

Unavailable

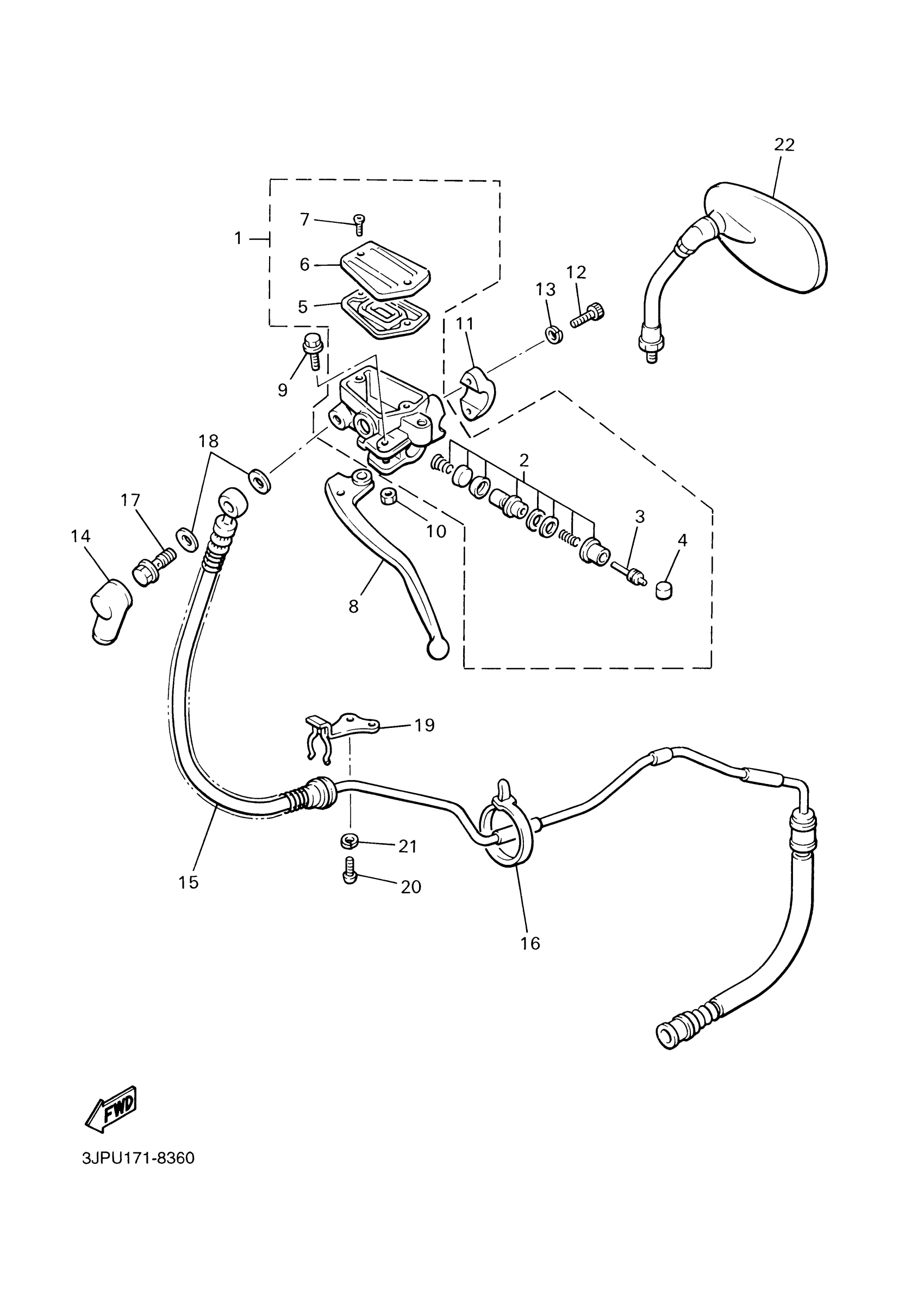

Yamaha VMX12SC1 (V-MAX CA) 5GKM 2004 FRONT MASTER CYLINDER 2 Diagram

MASTER CYLINDER SUB ASSY(CLUTC

CYLINDER KIT, MASTER (CLUTCH)

PUSH ROD

BUSH

DIAPHRAGM, RESERVOIR

CAP, RESERVOIR

SCREW, FLAT

LEVER 1

BOLT, LEVER

NUT, SELF-LOCKING

BRAKET,MASTER

BOLT, HEXAGON SOCKET HEAD(3JP)

WASHER, SPRING

BOOT, MASTER CYLINDER

HOSE, CLUTCH

BAND

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER

SCREW, PAN

WASHER(6TA)

REAR VIEW MIRROR ASSY (LEFT)
