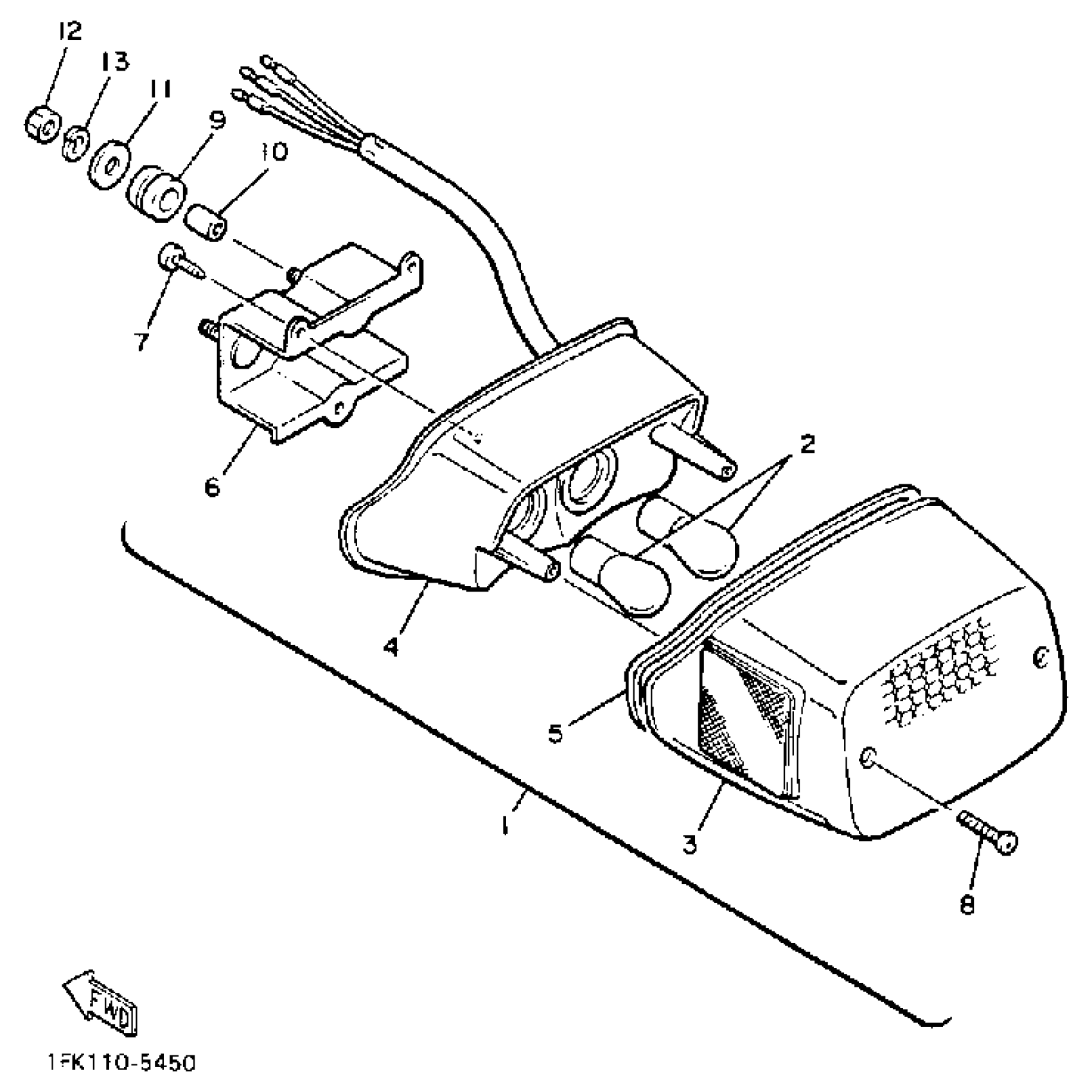

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 TAILIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

1FK-84700-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, TAILLIGHT

42X-84721-61-00

Unavailable

4

. BASE, TAILLIGHT

1FK-84711-00-00

Unavailable

5

SEAL

1VJ-14462-00-00

$18.49

6

BRACKET, TAILLIGHT

1FK-84702-00-00

Unavailable

7

SCREW, TAPPING

97780-40116-00

Unavailable

8

SCREW, TAPPING(7G6)

97780-40525-00

$9.49

9

GROMET (3X3)

90480-14229-00

$8.49

10

COLLAR (J10)

90387-06026-00

$8.49

11

WASHER, PLATE

90201-06380-00

$0.60

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable
