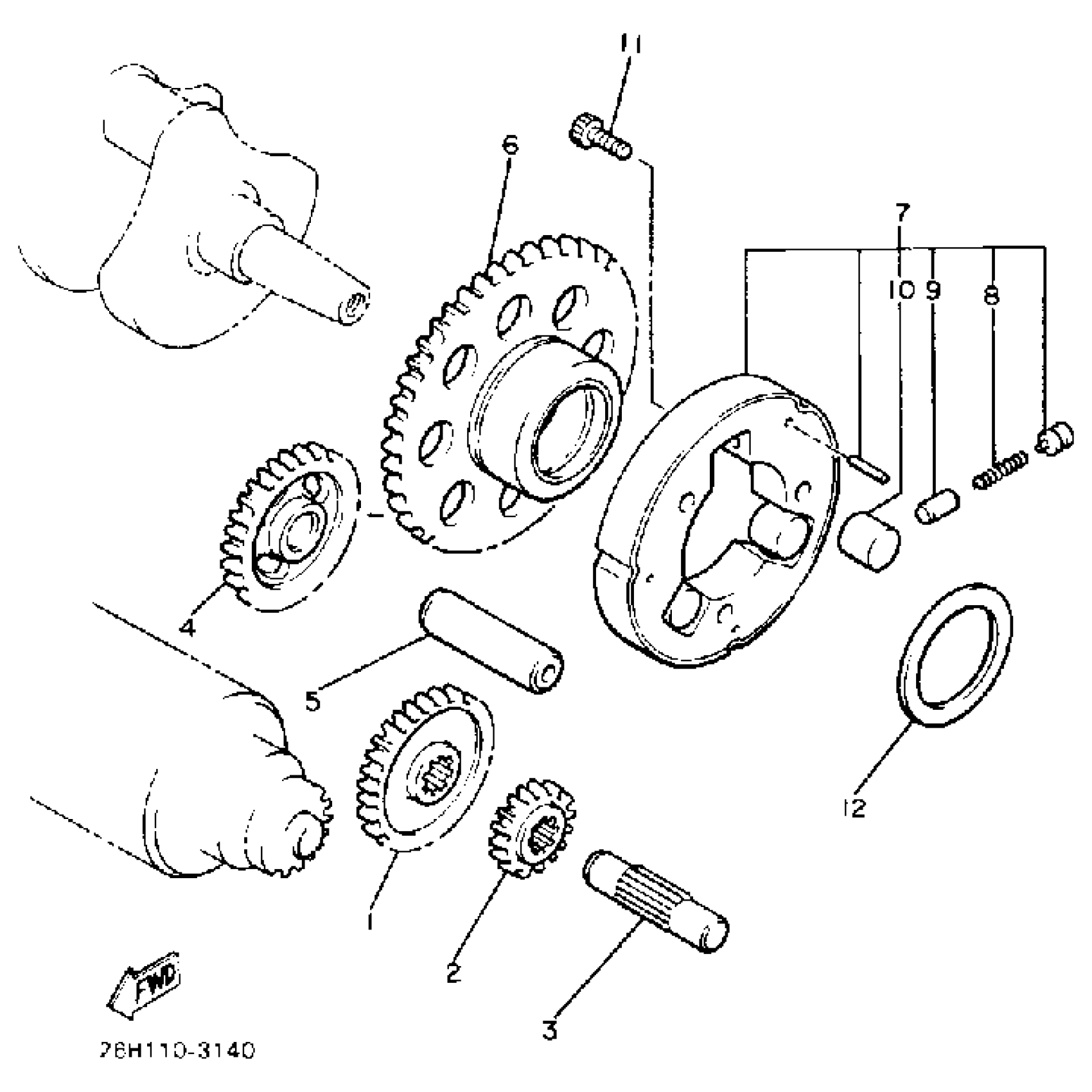

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR 2 (42T)

26H-15514-00-00

Unavailable

2

GEAR 3 (13T)

26H-15515-00-00

Unavailable

3

SHAFT 2

26H-15522-00-00

Unavailable

4

GEAR, IDLER 1 (27T)

26H-15512-00-00

Unavailable

5

SHAFT 1

26H-15521-00-00

Unavailable

6

GEAR, IDLER 2 (76T)

26H-15517-00-00

Unavailable

7

STARTER CLUTCH OUTER ASSY

11H-15580-00-00

Unavailable

8

SPRING, COMPRESSION (4G0)

90501-04623-00

$7.49

9

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

10

PIN,DOWEL(341)

93615-12088-00

$7.49

11

BOLT, SOCKET

91317-08014-00

$8.49

12

WASHER, PLATE (11H)

90201-350F3-00

$10.49
