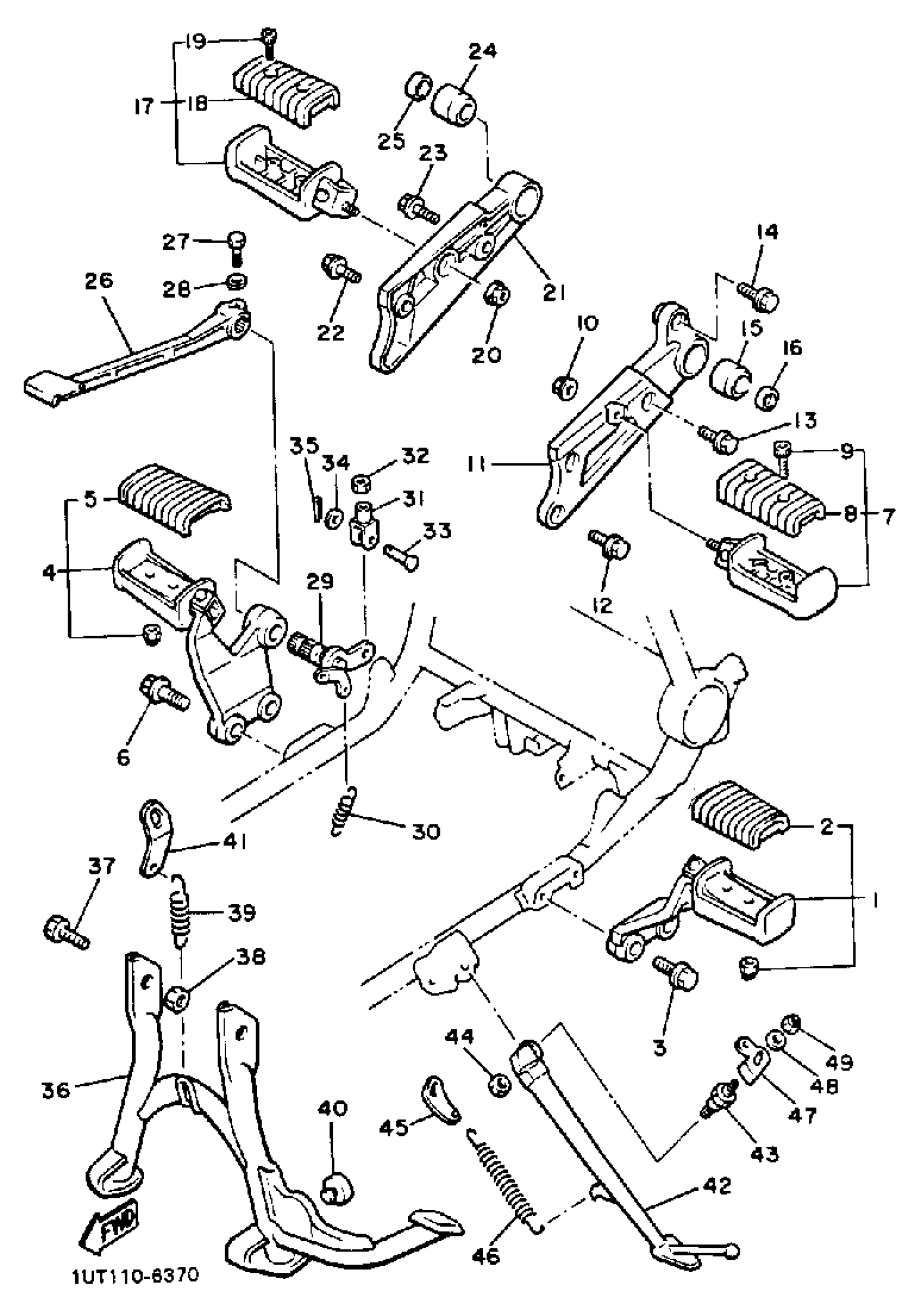

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSEMBLY (LEFT)

1UT-27410-00-93

Unavailable

2

COVER, FOOTREST

1NH-27413-00-00

$45.99

3

BOLT, SMALL FLANGE

95024-10030-00

$9.49

4

FRONT FOOTREST ASSEMBLY (RIGHT)

1UT-27420-00-93

Unavailable

5

COVER, FOOTREST

1NH-27413-00-00

$45.99

6

BOLT, SMALL FLANGE

95024-10030-00

$9.49

7

REAR FOOTREST ASSY 1

1UT-27430-01-00

Unavailable

8

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

9

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

10

NUT, FLANGE(3BM)

95704-10500-00

$4.29

11

BRACKET 2

1FK-27442-00-00

Unavailable

12

BOLT, FLANGE (3JPE)

95024-08016-00

$9.49

13

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

14

BOLT, SMALL FLANGE

95027-08020-00

$8.49

15

DAMPER, FOOTREST

26H-27414-00-00

Unavailable

16

STOPPER

26H-2743E-00-00

Unavailable

17

REAR FOOTREST ASSY 2

1UT-27440-01-00

Unavailable

18

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

19

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

20

NUT, FLANGE(3BM)

95704-10500-00

$4.29

21

BRACKET 3

1FK-27443-00-00

Unavailable

22

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

23

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

24

DAMPER, FOOTREST

26H-27414-00-00

Unavailable

25

STOPPER

26H-2743E-00-00

Unavailable

26

PEDAL, BRAKE

1FK-27211-00-93

Unavailable

27

BOLT (1J7)

90109-06468-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

SHAFT, BRAKE PEDAL

1FK-27212-00-00

Unavailable

30

SPRING, TENSION (23X)

90506-18305-00

Unavailable

31

JOINT

47X-27222-00-00

Unavailable

32

. NUT

95380-08700-00

Unavailable

33

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

34

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

35

PIN, COTTER

91490-16020-00

Unavailable

36

STAND, MAIN

1UT-27111-01-R4

Unavailable

37

BOLT(1TX)

90109-101E6-00

Unavailable

38

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

39

SPRING, TENSION (4L0)

90506-45222-00

Unavailable

40

STOPPER, MAIN STAND

371-27114-00-00

Unavailable

41

LINK, MAIN STAND

1FK-27115-00-00

Unavailable

42

STAND, SIDE

1FK-27311-00-R4

Unavailable

43

BOLT(1FK)

90109-107A2-00

Unavailable

44

NUT, U

90185-10037-00

Unavailable

45

LINK, SIDE STAND

1FK-27315-00-00

Unavailable

46

SPRING, TENSION (498)

90507-29019-00

Unavailable

47

HOOK, SIDE STAND

1FK-27352-00-00

Unavailable

48

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

49

NUT, SELF-LOCKING

95617-06100-00

Unavailable
