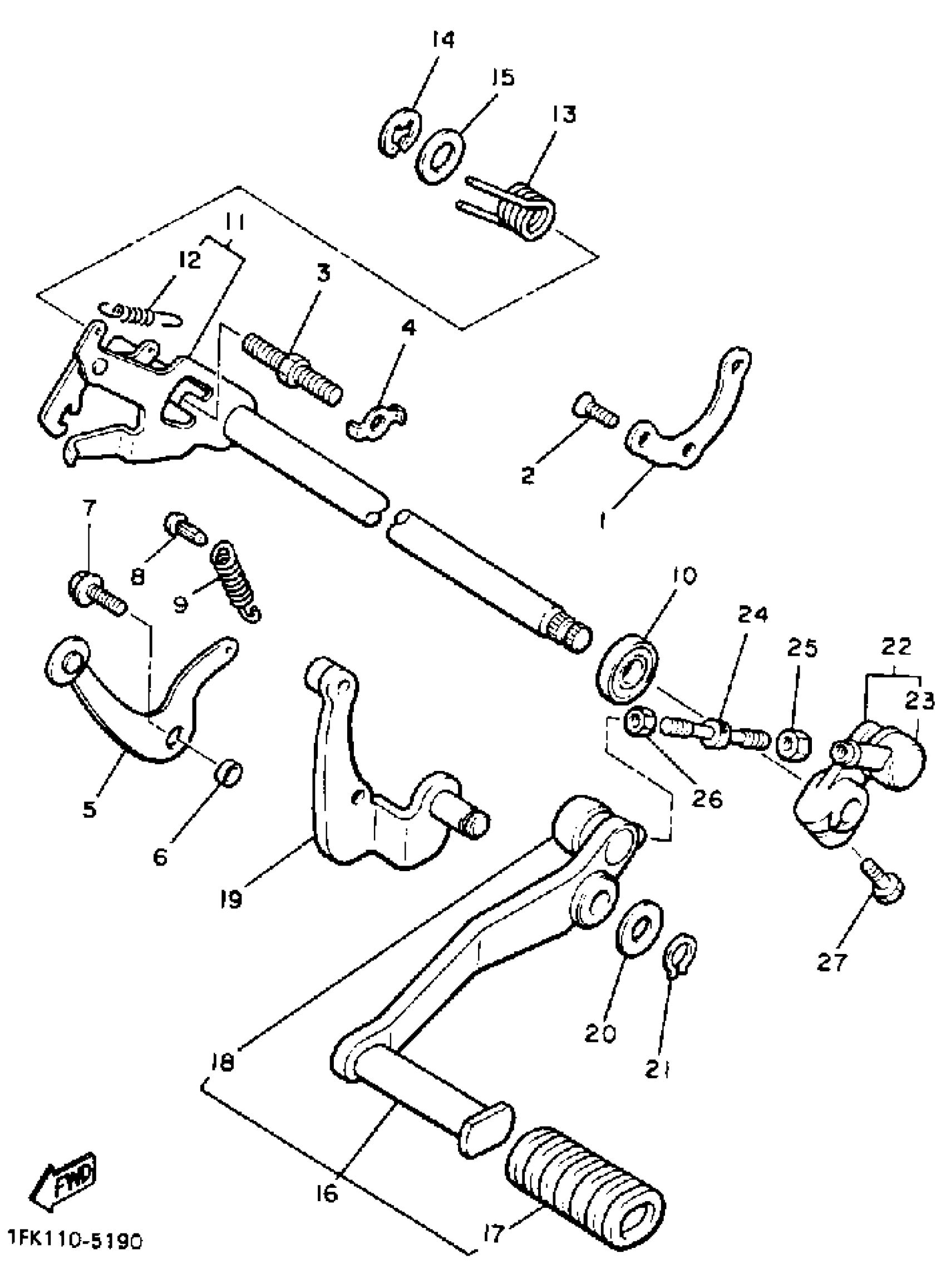

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER, SHIFT BAR

26H-18536-00-00

Unavailable

2

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

3

BOLT (1J7)

90109-08441-00

$8.49

4

WASHER, LOCK (583 SHIFT)

90215-08115-00

$7.49

5

STOPPER LEVER ASSY

26H-18140-02-00

Unavailable

6

COLLAR (5Y1)

90387-063F7-00

$8.49

7

BOLT

90109-06036-00

$9.49

8

HOOK, SPRING

132-16346-00-00

$9.99

9

SPRING, TENSION (26H)

90506-13312-00

$7.49

10

SEAL, OIL (30X)

93102-12321-00

$12.49

11

SHIFT SHAFT ASSY

1FK-18101-01-00

$120.99

12

SPRING, TENSION (4H7)

90506-08227-00

$4.19

13

SPRING, TORSION (26H)

90508-32588-00

Unavailable

14

CIRCLIP

99006-10600-00

$9.49

15

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

16

SHIFT PEDAL ASSY

1FK-18110-00-00

Unavailable

17

COVER, SHIFT PEDAL

22N-18113-00-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

Unavailable

19

BRACKET

1FK-18128-00-00

Unavailable

20

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

21

CIRCLIP(10Y)

99009-12400-00

Unavailable

22

LEVER, SHIFT 4

1FK-18152-00-00

Unavailable

23

COVER, DUST

2H9-18154-00-00

Unavailable

24

ROD, SHIFT

42X-18115-00-00

Unavailable

25

NUT(650)

95380-06700-00

Unavailable

26

NUT (2H9)

90170-06228-00

Unavailable

27

BOLT, HEXAGON

97017-06020-00

Unavailable
