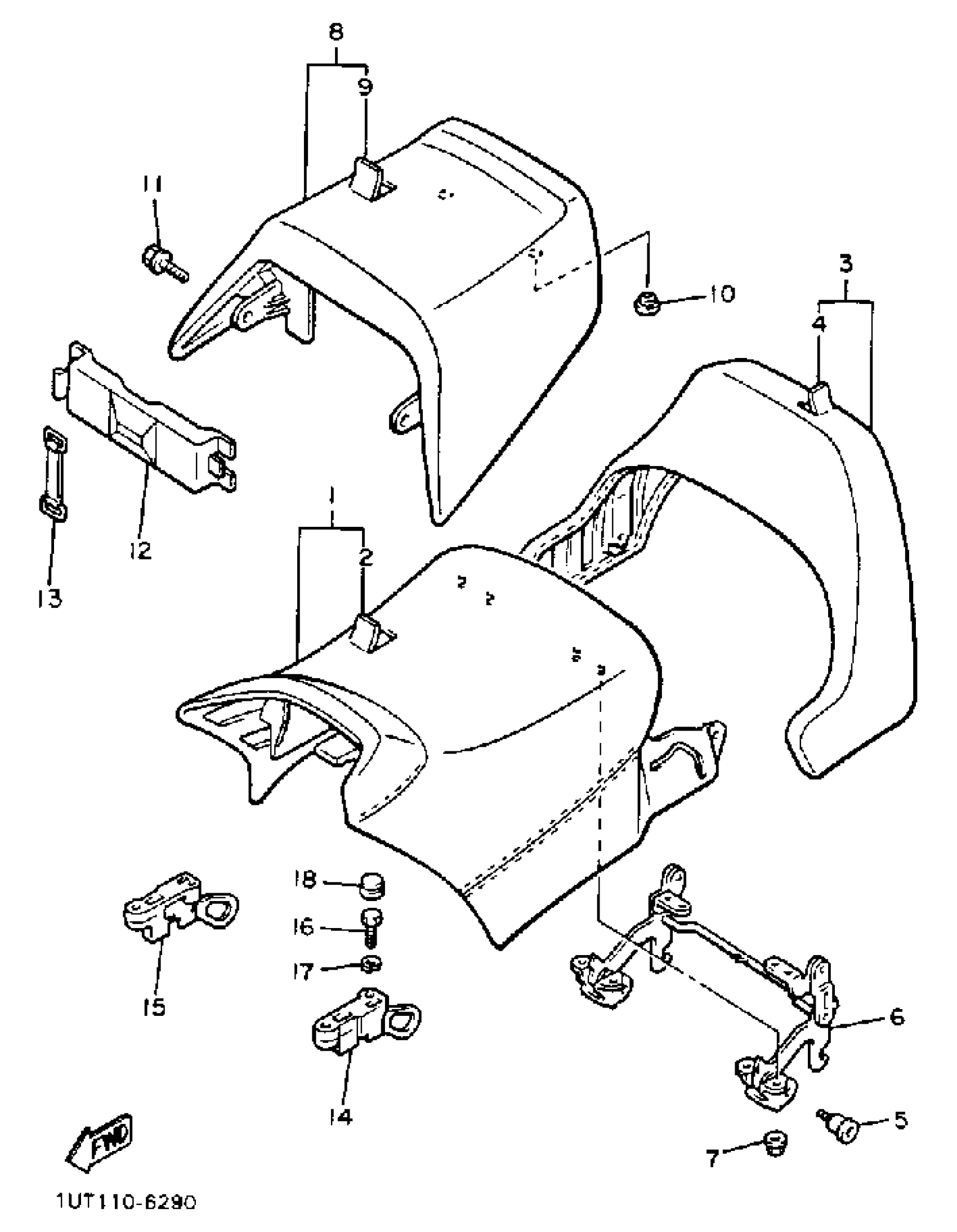

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 SEAT Diagram

#

Description
Price

1

SEAT COMP.

1FK-24771-00-00

Unavailable

2

. COVER, SINGLE SEAT

1FK-24711-00-00

Unavailable

3

SEAT BACK ASSY

1FK-24790-00-00

Unavailable

4

. COVER, SEAT BACK

1FK-24791-00-00

Unavailable

5

PIN, GUIDE

1FK-2476F-00-00

$9.99

6

HINGE ASS'Y

1FK-24772-00-00

Unavailable

7

NUT, FLANGE(4MV)

95707-06500-00

$1.23

8

TANDEM SEAT ASSY

1FK-24750-00-00

Unavailable

9

. COVER, TANDEM SEAT

2HY-24751-00-00

Unavailable

10

PAD, SEAT

22W-24741-00-00

$8.99

11

BOLT, WITH WASHER

90119-06242-00

$7.49

12

LID 1

1FK-2473T-00-00

Unavailable

13

BAND, TOOL

5H9-21376-00-00

Unavailable

14

SEAT LEVER ASSY

1FK-24760-00-00

Unavailable

15

SEAT LOCK ASSY

1FK-24780-00-00

Unavailable

16

BOLT (661)

97013-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

CAP

5K0-28349-50-00

Unavailable
