Description

Price

1

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

2

CAP, RESERVOIR

3HE-25852-01-00

$29.99

3

SCREW, FLAT

98707-04012-00

$2.18

4

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$35.99

5

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

6

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$24.99

7

BOLT,SOCKET

91317-06025-00

$5.60

8

WASHER, SPRING

92907-06100-00

$4.25

9

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

10

HOSE,BRAKE 1

99999-02773-00

Unavailable

11

BOLT, UNION(3GM)

90401-10159-00

$11.49

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

JOINT

42H-25885-01-00

Unavailable

14

BOLT,SOCKET HEAD

91314-06020-00

$1.49

15

HOSE,BRAKE 2

99999-02732-00

Unavailable

16

BOLT, UNION

90401-10038-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

$11.49

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOLDER, BRAKE HOSE 1

55R-25875-00-00

Unavailable

21

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

22

HOLDER, BRAKE HOSE 2

55R-25876-00-00

Unavailable

23

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

24

BOLT, UNION(3GM)

90401-10159-00

$11.49

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

REAR VIEW MIRROR ASSY (RIGHT)

1AA-26290-10-00

Unavailable

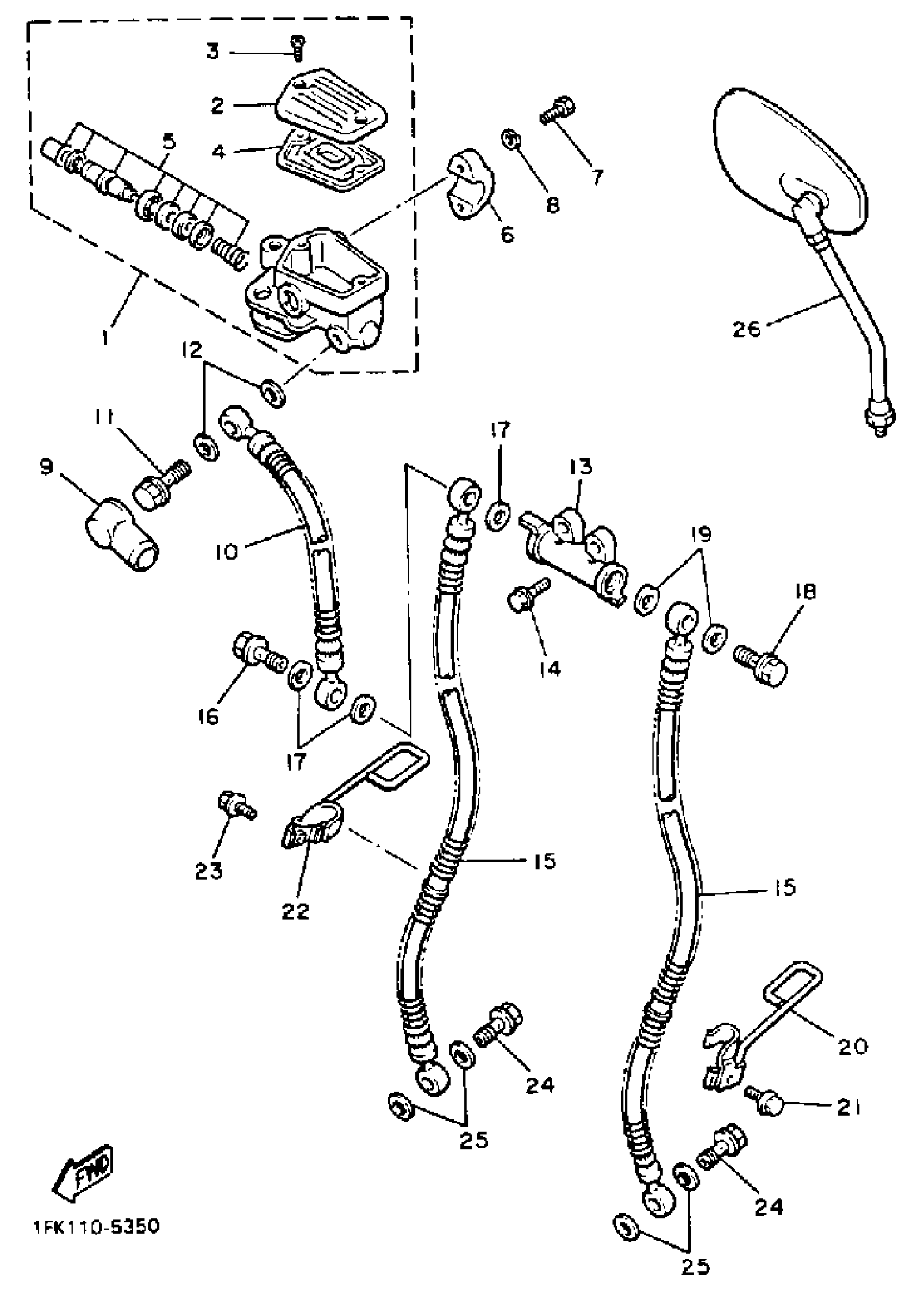

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 FRONT MASTER CYLINDER 1 Diagram

MASTER CYLINDER ASSY

CAP, RESERVOIR

SCREW, FLAT

DIAPHRAGM, RESERVOIR

CYLINDER KIT, MASTER

BRACKET, MASTER CYLINDER

BOLT,SOCKET

WASHER, SPRING

BOOT, MASTER CYLINDER

HOSE,BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

JOINT

BOLT,SOCKET HEAD

HOSE,BRAKE 2

BOLT, UNION

WASHER, PLATE(481)

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRAKE HOSE 1

BOLT, FLANGE(2UJ)

HOLDER, BRAKE HOSE 2

BOLT, FLANGE(2UJ)

BOLT, UNION(3GM)

WASHER, PLATE(481)

REAR VIEW MIRROR ASSY (RIGHT)
