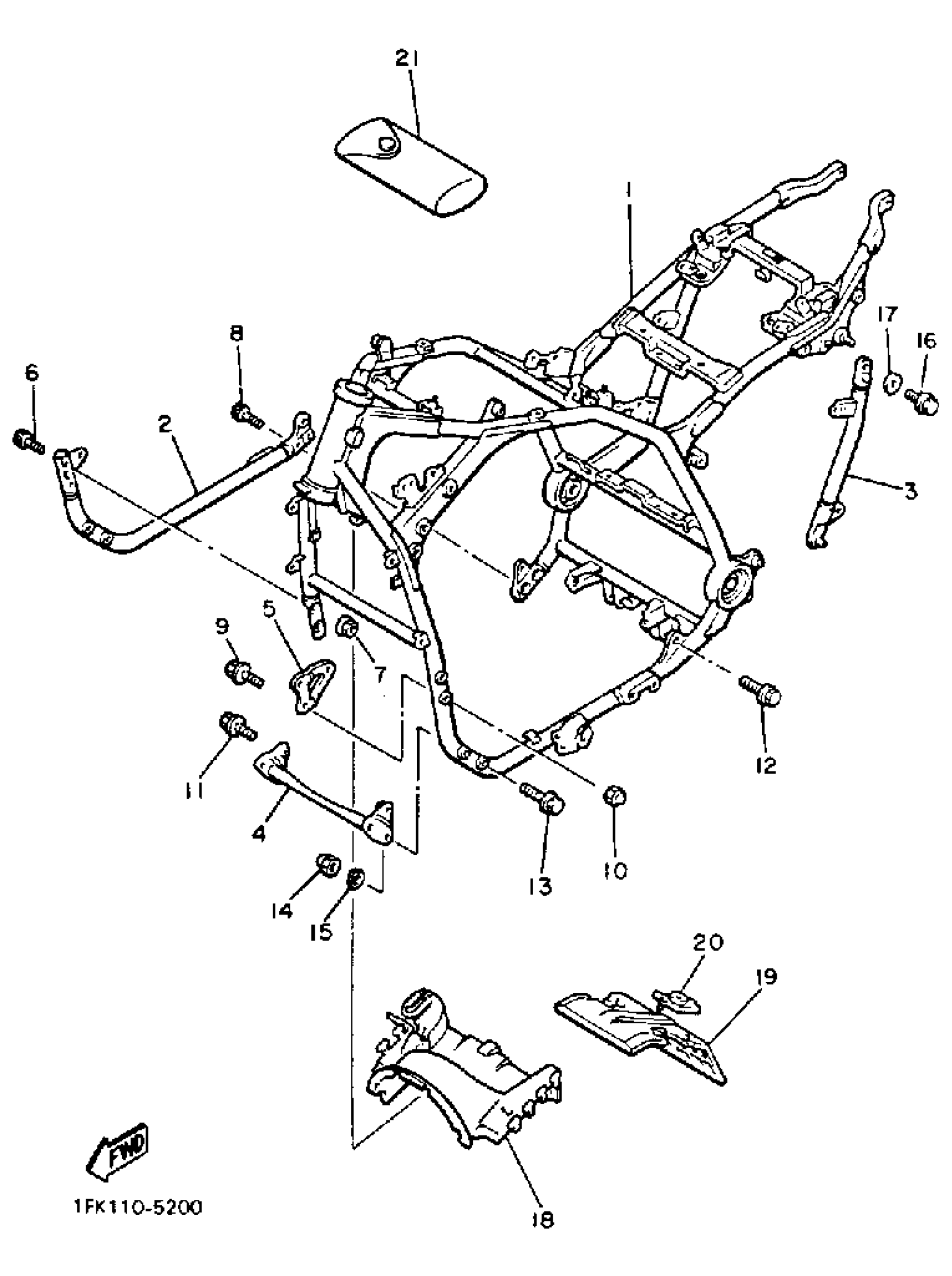

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 FRAME Diagram
#
Description
Price
1
FRAME COMP.
1FK-21110-00-33
Unavailable
2
DOWN TUBE COMP.
1FK-21140-00-33
Unavailable
3
BACK STAY SUB COMP. 1
1FK-21105-00-33
Unavailable
5
STAY, ENGINE 2
1FK-21315-00-00
Unavailable
7
NUT
90179-10321-00
Unavailable
8
BOLT, SOCKET
91317-10020-00
Unavailable
16
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
17
WASHER (853)
90201-08326-00
Unavailable
18
COVER
1FK-2117F-01-00
Unavailable
19
COVER 2
1FK-2117M-00-00
Unavailable
20
COVER 3
1FK-2117N-01-00
Unavailable
21
TOOL KIT
26H-W2810-00-00
Unavailable
