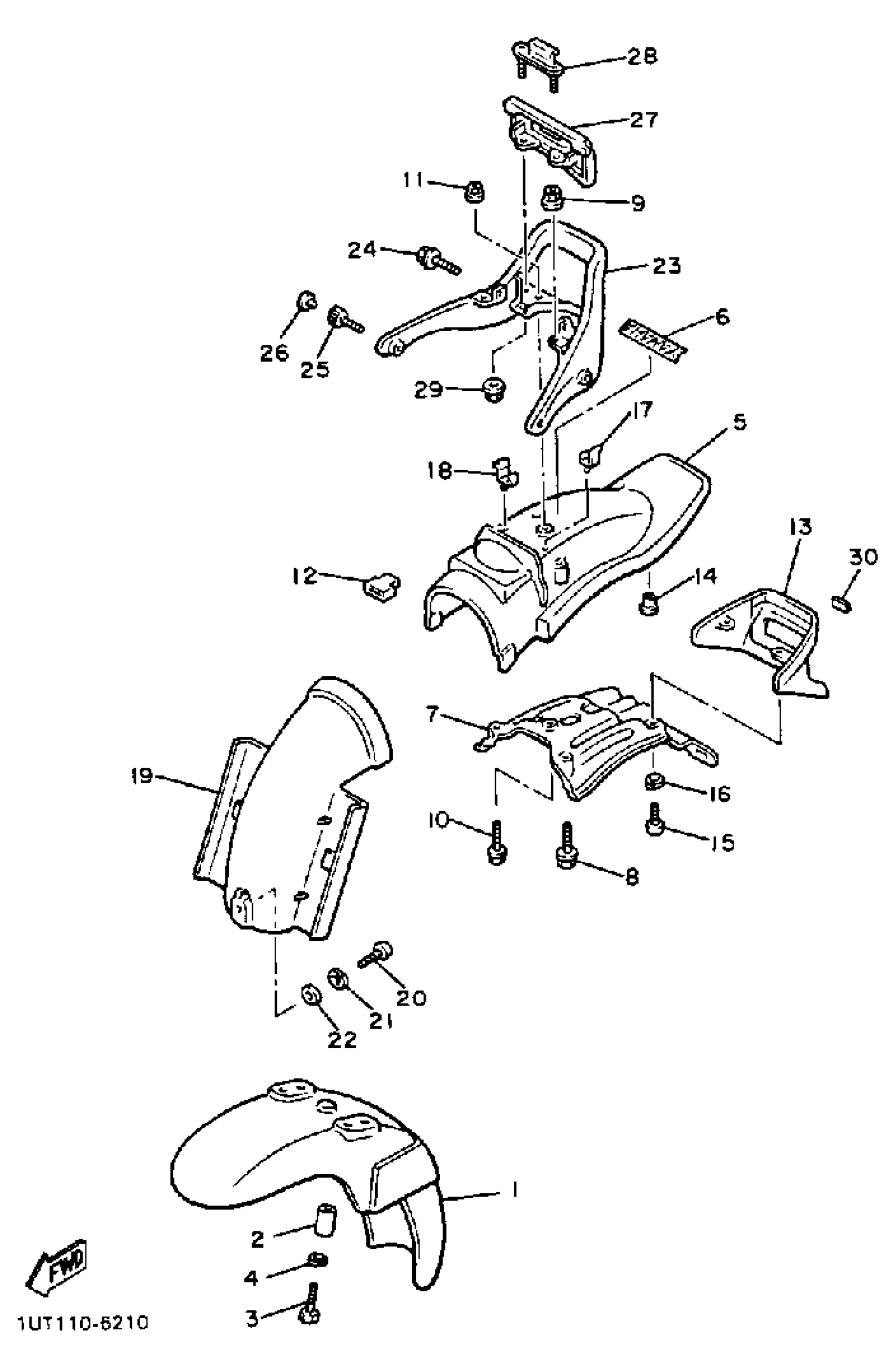

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (MAR)

1FK-21511-00-3X

Unavailable

1

FENDER, FRONT (BLK)

1FK-21511-00-4X

Unavailable

2

COLLAR (3Y2)

90387-07789-00

$9.49

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

FENDER, REAR

1FK-21611-00-MV

Unavailable

5

FENDER,REAR-BLACK

1FK-21611-00-NA

Unavailable

6

EMBLEM, YAMAHA

99246-00080-00

$20.99

7

REINF. COMP.

1FK-21670-01-00

Unavailable

8

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

9

NUT, FLANGE

95704-08500-00

$8.49

10

BOLT, FLANGE

95817-06020-00

$3.81

10

BOLT, FLANGE

95817-06020-00

$3.81

11

NUT, FLANGE(7NB)

95780-06500-00

$2.60

12

DAMPER, SIDE COVER

437-21717-10-00

$9.99

13

UNAVAILABLE IN PRICE BOOK (1FK-84516-00-35)

1FK-84516-50-13

Unavailable

14

PLATE

31A-14477-10-00

Unavailable

15

SCREW, PAN

98507-06014-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

CLAMP (1J7)

90464-16021-00

Unavailable

18

CLAMP (1J7)

90464-16025-00

Unavailable

19

GUARD, MUD

1FK-21629-00-00

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE

90201-06049-00

Unavailable

23

STAY, REAR

1FK-21645-00-00

Unavailable

24

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

25

BOLT,SOCKET

91314-08020-00

Unavailable

26

PLUG(42X)

90338-08163-00

Unavailable

27

COVER, REAR FENDER 1

1FK-2163A-00-00

Unavailable

28

COVER, REAR FENDER 3

1FK-2163E-00-00

Unavailable

29

NUT, W/ WASHER

95707-06600-00

Unavailable

30

DAMPER 2

1HX-28227-00-00

Unavailable
