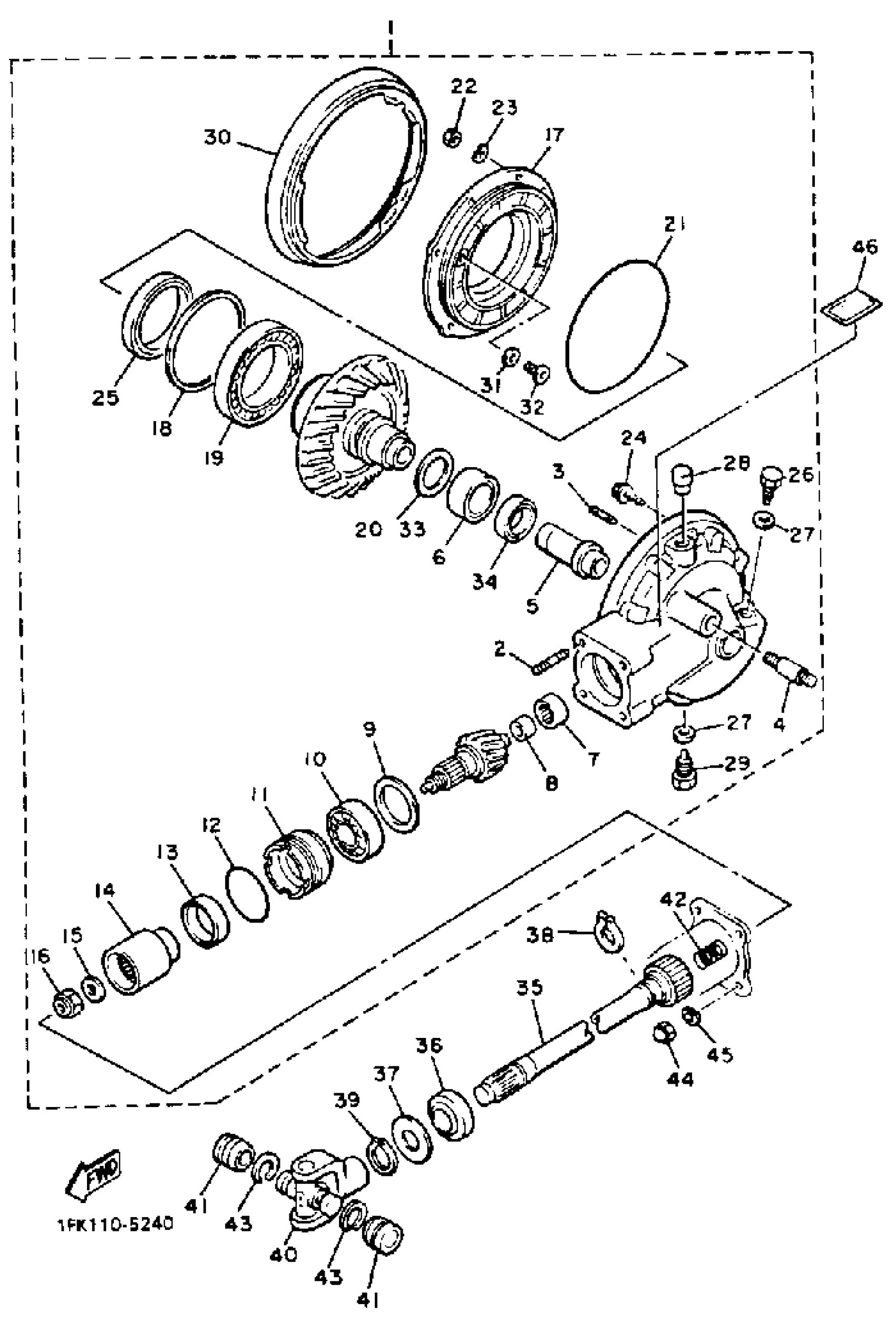

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 DRIVE SHAFT Diagram
#
1
RR AXL GR CASE ASY
99999-03061-00
Unavailable
2
BOLT, STUD (5E5)
90116-10361-00
Unavailable
4
BOLT, STUD (4H7)
90116-10249-00
Unavailable
5
COLLAR, GUIDE
1FK-46153-00-00
Unavailable
6
BRG,CYL-CAL ROLLER 80G KY
93311-43729-00
Unavailable
14
COUPLING, GEAR
4H7-46123-01-00
Unavailable
15
WASHER, PLATE 11J7)
90201-14632-00
Unavailable
16
NUT
90179-14508-00
Unavailable
17
. HOUSING, BEARING
1FK-46152-01-00
Unavailable
18
SHIM, RING GEAR (0.25T)
1J7-46117-Y0-25
Unavailable
18
SHIM, RING GEAR (0.30T)
1J7-46117-Y0-30
Unavailable
18
. SHIM, RING GEAR (035T)
1J7-46117-Y0-35
Unavailable
18
SHIM, RING GEAR (0.40T)
1J7-46117-Y0-40
Unavailable
18
SHIM, RING GEAR (0.50T)
1J7-46117-Y0-50
Unavailable
19
BRG,R-B 16014C2 110MM 433G KY
93316-01403-00
Unavailable
20
WASHER, THRUST
22U-46118-00-12
Unavailable
20
WASHER, THRUST
22U-46118-00-14
Unavailable
20
WASHER, THRUST
22U-46118-00-16
Unavailable
20
WASHER, THRUST
22U-46118-00-18
Unavailable
20
WASHER, THRUST
22U-46118-00-20
Unavailable
21
O-RING(59V)
93211-54698-00
Unavailable
22
NUT(6L2)
95333-08600-00
Unavailable
23
WASHER(6TA)
92907-08700-00
Unavailable
24
BOLT, FLANGE(8AB)
95817-10050-00
Unavailable
25
OIL SEAL (4H7)
93102-70167-00
Unavailable
26
PLUG
3JL-13455-00-00
Unavailable
27
GASKET
214-11198-01-00
Unavailable
28
BREATHER COMP.
2H7-17590-00-00
Unavailable
29
PLUG, STRAIGHT SCREW
90340-14004-00
Unavailable
30
COVER, HOUSING
1FK-46154-00-00
Unavailable
31
STOPPER, RING GEAR
1FK-46156-00-00
Unavailable
32
SHIM, STOPPER
1FK-46157-00-15
Unavailable
32
. SHIM, STOPPER (T=020)
1FK-46157-00-20
Unavailable
32
SHIM, STOPPER (T=0.30)
1FK-46157-00-30
Unavailable
32
SHIM,STOPPER
1FK-46157-00-40
Unavailable
32
SHIM,STOPPER
1FK-46157-00-40
Unavailable
33
WASHER, THRUST
(1J7-46118-Y0-00)
Unavailable
34
OIL SEAL (30X42X7-1J7)
93101-30084-00
Unavailable
35
SHAFT, DRIVE
1FK-46172-00-00
Unavailable
36
OIL SEAL(1FK)
93108-43013-00
Unavailable
37
WASHER, PLATE (4H7)
90201-231A2-00
Unavailable
38
CIRCLIP (4H7)
93410-23056-00
Unavailable
39
CIRCLIP (537)
93410-22039-00
Unavailable
40
CROSS JOINT COMP.
4X7-46180-00-00
Unavailable
41
BEARING(2HR)
93399-99926-00
Unavailable
42
SPRING, COMPRESSION (2H7)
90501-16491-00
Unavailable
43
CIRCLIP (4X7)
93440-20088-00
Unavailable
44
NUT, CROWN(2GG)
90176-10075-00
Unavailable
45
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
46
LABEL, OIL CAUTION
31A-46181-00-00
Unavailable
