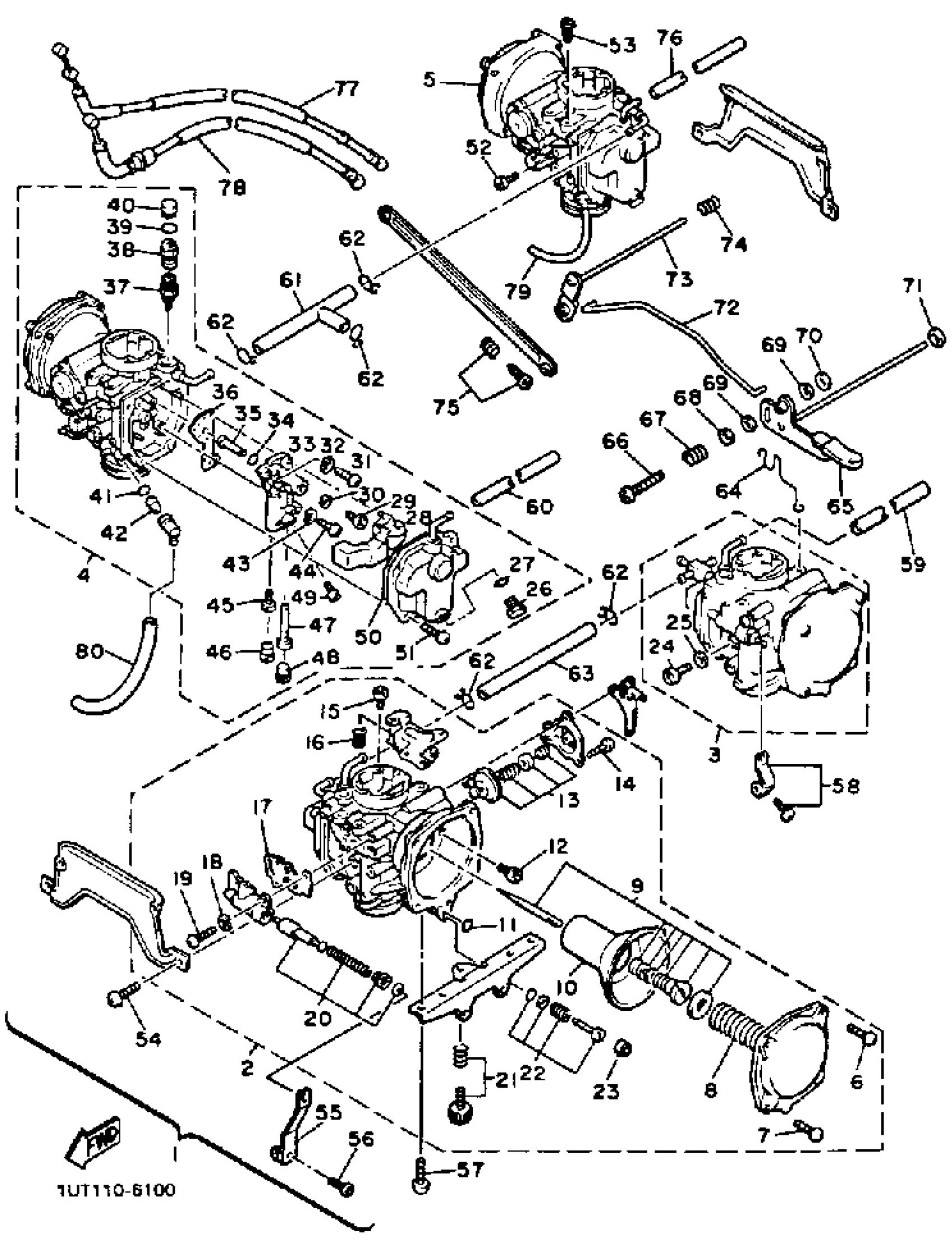

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 CARBURETOR Diagram
#
1
TOOL
UNA-VAILA-BL-EI
Unavailable
2
CARBURETOR ASSY 1
1FK-14901-02-00
Unavailable
3
CARBURETOR ASSY 2
1FK-14902-02-00
Unavailable
4
CARBURETOR ASSY 3
1FK-14903-02-00
Unavailable
5
. CARBURETOR ASSEMBLY 4 (1JH-14904-00)
1JH-14904-01-00
Unavailable
6
SCREW, PAN HEAD(1FK)
90157-05050-00
Unavailable
13
DIAPHRAGM SET, 5
3LD-1490H-00-00
Unavailable
15
JET, MAIN (# 90)
3G2-14231-18-00
Unavailable
16
. STOP SCREW SET
12R-1490K-00-00
Unavailable
17
GASKET
3JB-14536-00-00
Unavailable
18
WASHER, PLAIN (646)
92990-04600-00
Unavailable
19
SCREW, PAN HEAD
98511-04012-00
Unavailable
20
STARTER SET
11H-1410A-00-00
Unavailable
21
THROTTLE SCREW SET
26H-14103-00-00
Unavailable
22
PILOT SCREW SET
12R-14105-00-00
Unavailable
23
CAP
3F9-14118-00-00
Unavailable
24
.. PLUG, SCREW
341-14991-00-00
Unavailable
25
.. WASHER
26H-14952-00-00
Unavailable
26
PLUG, SCREW
22U-14115-00-00
Unavailable
27
.. O-RING
22U-14561-00-00
Unavailable
28
FLOAT
1FK-14985-00-00
Unavailable
29
SCREW
22U-14565-00-00
Unavailable
30
WASHER,MAIN JET
137-14153-00-00
Unavailable
31
SCREW, PAN HEAD
98517-04020-00
Unavailable
32
WASHER, PLAIN (646)
92990-04600-00
Unavailable
33
BLOCK JET ASSY
26H-1411A-00-09
Unavailable
34
O-RING
22U-14147-00-00
Unavailable
35
NOZZLE, MAIN
26H-14941-90-00
Unavailable
36
GASKET
3JB-14199-00-00
Unavailable
37
NEEDLE VALVE ASSY
1FK-14190-15-00
Unavailable
38
NET, FILTER
1J7-14994-00-00
Unavailable
39
O-RING
1FK-14147-00-00
Unavailable
40
CAP
41R-14118-01-00
Unavailable
41
O-RING
214-14147-00-00
Unavailable
42
SCREW
2L1-14191-00-00
Unavailable
43
WASHER, PLAIN (646)
92990-04600-00
Unavailable
44
SCREW, PAN HEAD
98511-04012-00
Unavailable
45
JET, PILOT (# 37.5)
4G0-14142-37-A0
Unavailable
46
CAP
22V-14968-00-00
Unavailable
47
PIPE, MAIN BREED
26H-1414G-00-00
Unavailable
48
CAP
22U-14968-00-00
Unavailable
49
. JET, MAIN (1525) (3G2-14231-81)
3G2-14231-81-A0
Unavailable
50
O-RING
22V-14147-00-00
Unavailable
52
.. SCREW
2F1-14991-00-00
Unavailable
53
GASKET, EXHAUST
98507-05008-00
Unavailable
54
SCREW PAN HEAD
98580-06010-00
Unavailable
55
LEVER, STARTER
1FK-14905-00-00
Unavailable
56
SCREW (11H-14991-00-00)
11J-14991-00-00
Unavailable
57
SCREW PAN HEAD
98580-06010-00
Unavailable
58
. UNAVAILABLE IN PRICE BOOK
[1F-K1490-M0-00
Unavailable
59
. PIPE
1FK-14197-01-00
Unavailable
60
. UNAVAILABLE IN PRICE BOOK
[1G-R1419-70-10
Unavailable
61
HOSE
26H-14987-00-00
Unavailable
62
CLIP
90467-100A1-00
Unavailable
63
RING
31H-14194-00-00
Unavailable
64
CLIP, PIPE
(26H-14139-00-00)
Unavailable
65
. UNAVAILABLE IN PRICE BOOK
[1F-K1497-70-00
Unavailable
66
. PLUG, SCREW
22F-14115-00-00
Unavailable
67
. SPRING
46X-14938-00-00
Unavailable
68
. UNAVAILABLE IN PRICE BOOK
[1F-K1417-90-00
Unavailable
69
. WASHER
1FK-14952-00-00
Unavailable
70
WASHER
4CW-14962-00-00
Unavailable
71
RING
31H-14194-00-00
Unavailable
72
. UNAVAILABLE IN PRICE BOOK
[1F-K1499-20-00
Unavailable
73
. SHAFT, STARTR LEVER
1FK-14978-00-00
Unavailable
74
. UNAVAILABLE IN PRICE BOOK
[31-H1458-90-00
Unavailable
75
STOP SCREW SET
48H-1490K-00-00
Unavailable
76
. PIPE
1FK-14197-01-00
Unavailable
77
CABLE, THROTTLE 4
1FK-2631J-00-00
Unavailable
78
CABLE, THROTTLE 3
1FK-26313-00-00
Unavailable
79
HOSE (L570)
90445-075G4-00
Unavailable
80
HOSE (L570)
90445-075G4-00
Unavailable
